Brushless, permanent magnetic rotor, maintenance-free. Stator and circuit board sealed by epoxy resin.
Amphibious design. Enclosed with static sealing, not dynamic, which can avoid leaking problems.
Submersible installation and entirely waterproof. Low consumption; low noise(less than35db).
Super long working life(more than 30,000 hours). Wide temperature resistance range from 0℃ to 100℃.
Used in Aquarium, car cooling, humidifier, air conditioner, other cooling and circulation systems.

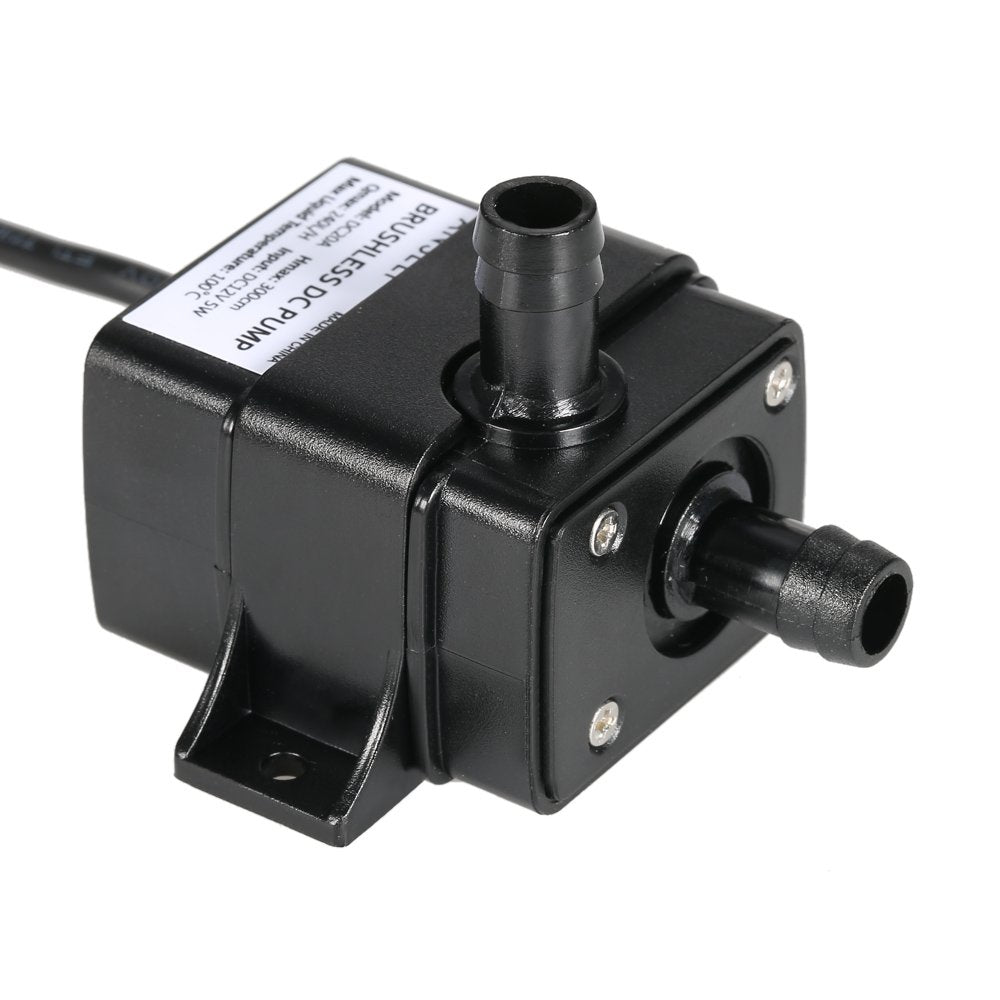

This is a compact size submersible water pump(none self-prime). It can be used inline or submersed for water pumping. It's built by a brushless motor providing smooth and quiet operation than a non-brushless water pump.
Pump material: ABS
Temperature resistance range: 0 ~ 100℃
Condition of use: Continuously
Fluids: Water, oil, gasoline, acid and alkali solution, etc.
Power consumption: 5W
Rated voltage: 12V DC
Max rated current: 400mA
Static flow rate: 240L/H
Static lift: 3M / 9.8ft
Noise: Less than 35dB
Outer diameter of inlet / outlet: 8.6mm / 0.34in
Inner diameter of inlet / outlet: 5.4mm / 0.21in
Water proof class: IP68

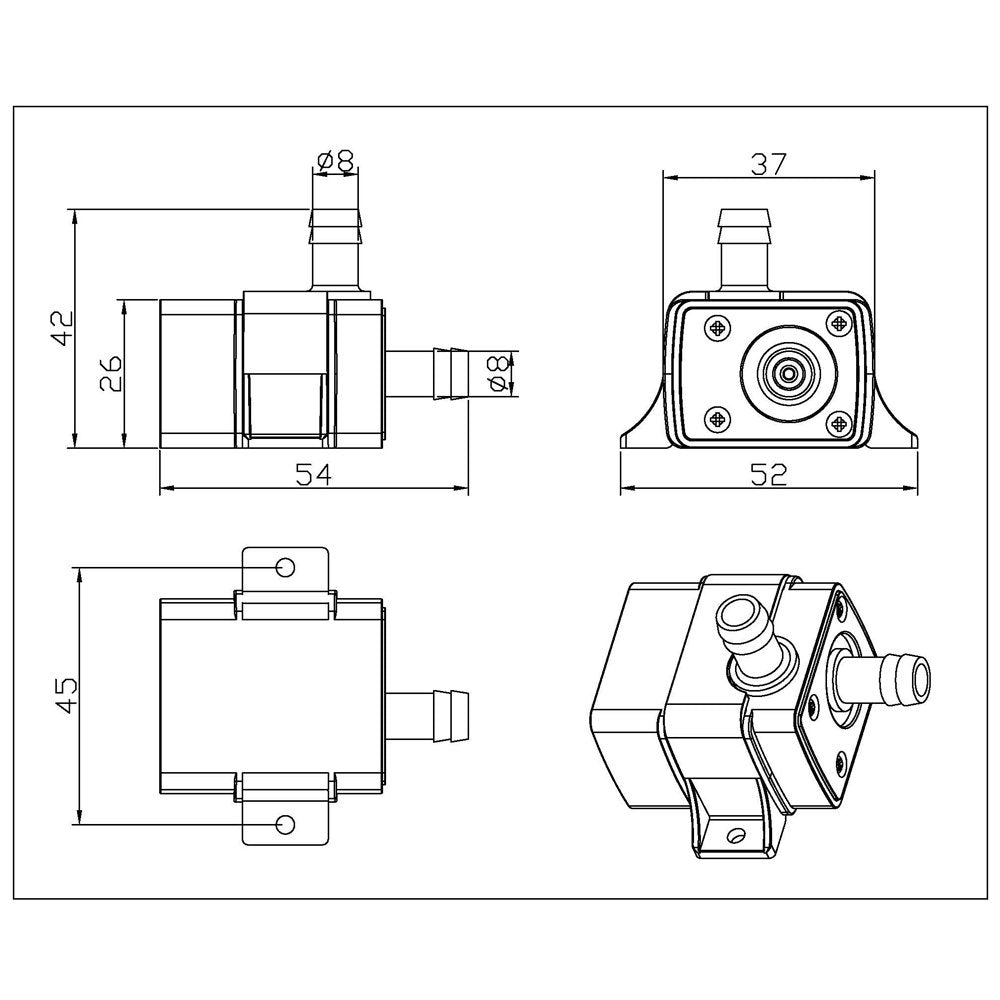

Product size: 5.5 * 3.5 * cm / 2.2 * 1.4 * 1.6in
Product weight: 72g / 1.6oz
Package size: 66 * 46 * 66mm / 2.6 * 1.8 * 2.6in
Package weight: 83g / 3.0oz
1 * 12V for DC Brushless Water Pump
1 * Adapter Plate
