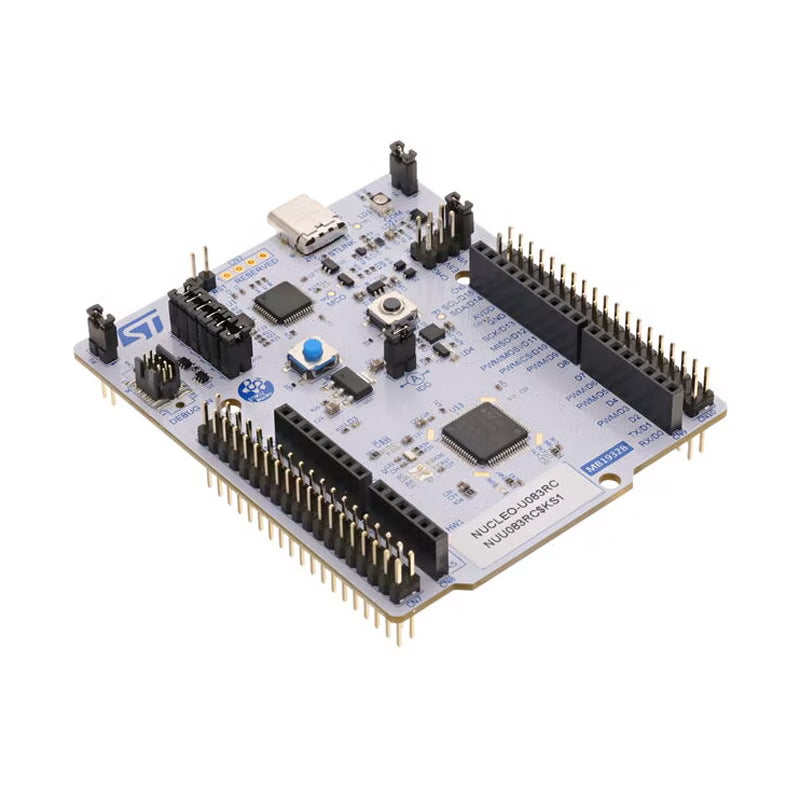

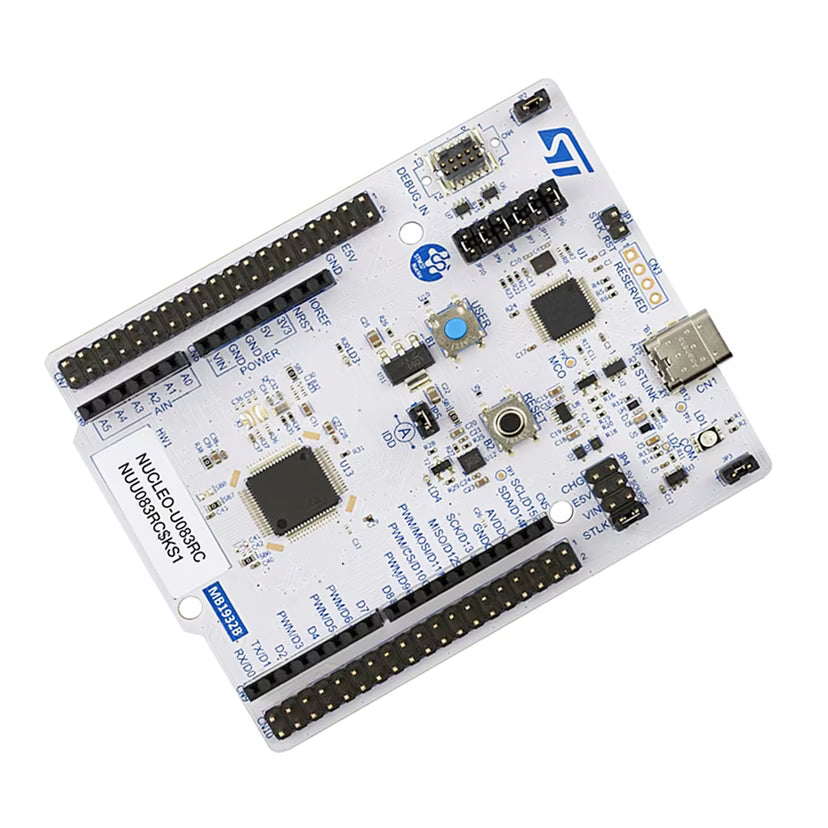

STMICROELECTRONICS NUCLEO-U083RC Development Board
STMICROELECTRONICS NUCLEO-U083RC Development Board
Regular price
Rs. 2,199.00
Regular price
Sale price
Rs. 2,199.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
The STM32 NUCLEO-U083RC development board provides an easy and flexible way to evaluate and develop applications using STM32 microcontrollers.
It features Arduino Uno V3 and ST Morpho connectors, giving full access to all MCU I/Os for expansion and prototyping. The board includes an on-board ST-LINK debugger/programmer for fast programming and debugging without external tools.
With flexible power supply options, user LEDs, push buttons, crystal oscillator, and support for STM32Cube software, it enables quick development of embedded, industrial, and IoT projects across multiple development environments.
- MCU Package: LQFP64 / LQFP48
- User Interface: User LED, Reset & User push-buttons
- Debug Interface: On-board ST-LINK with USB
- Clock Source: 32.768 kHz crystal oscillator
- Connectivity: Full access to all STM32 I/Os
Features:
- STM32 microcontroller in LQFP package
- Arduino Uno V3 and ST Morpho expansion connectors
- On-board ST-LINK debugger/programmer
- Flexible power supply via USB or external source
- Wide IDE and STM32Cube software support
Specification:
- Item Type: Development Board
- Model No: NUCLEO U083RC
- Microcontroller: STM32
- Expansion Connector: Arduino Uno V3, ST Morpho headers
- Debugger: ST-LINK (V2-1 / V3 variants)
- USB: USB Type-C, Micro-B, or Mini-B (board dependent) Supported
- Length (mm): 82.4
- Width (mm): 70
- Weight (g): 34
