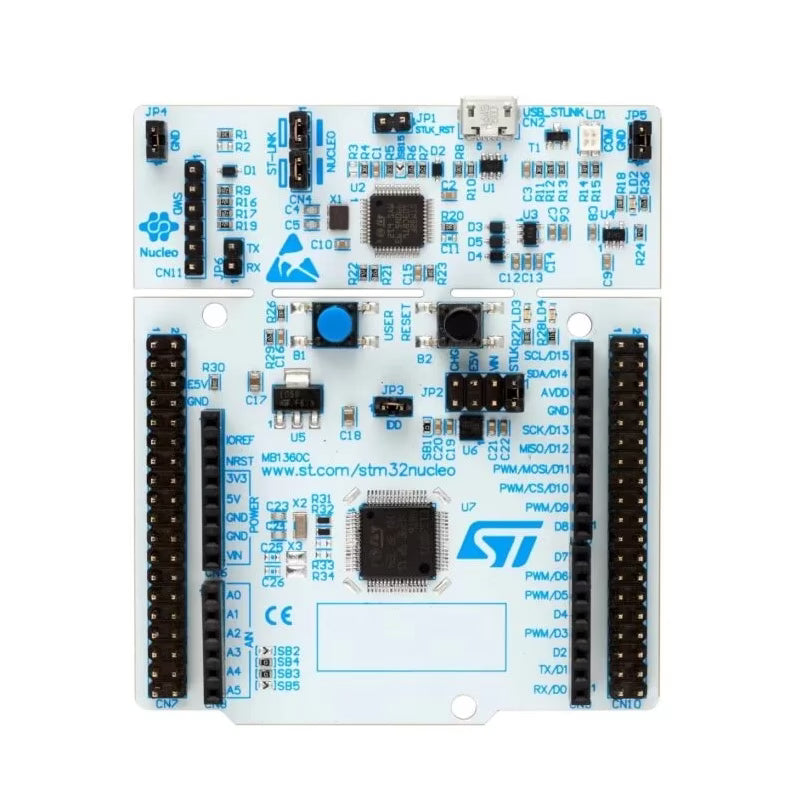

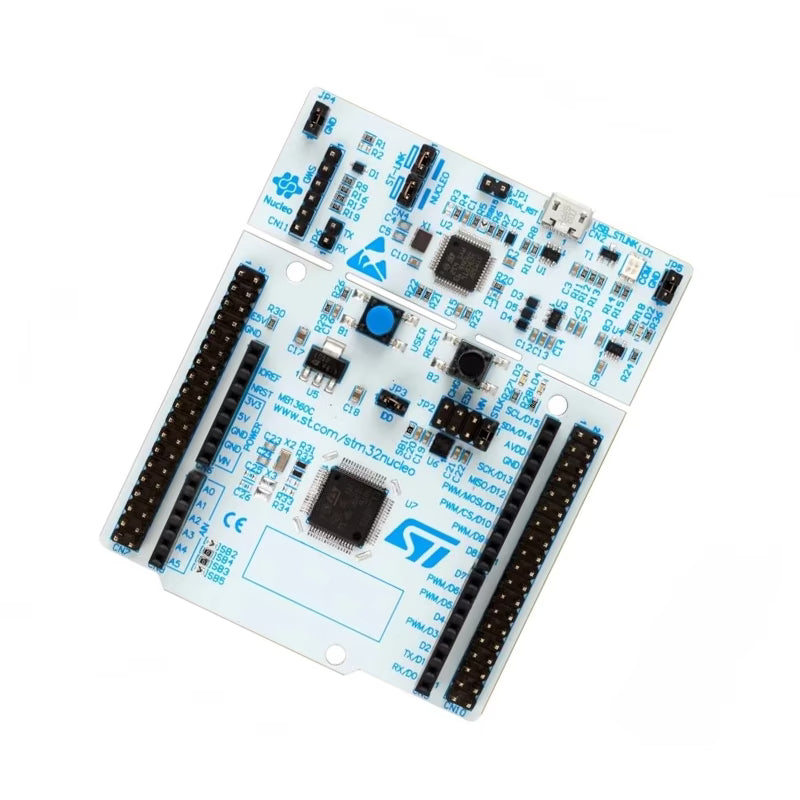

STMICROELECTRONICS NUCLEO-G071RB Development Board ,Nucleo-64, 32-Bit, STM32G071RB MCU
STMICROELECTRONICS NUCLEO-G071RB Development Board ,Nucleo-64, 32-Bit, STM32G071RB MCU
Couldn't load pickup availability
The STM Nucleo Development Board, STMICROELECTRONICS NUCLEO-G071RB – STM32 Nucleo-64 STM32G071RB Development Board boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, which provide various combinations of performance, power consumption and features. do not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo-64 boards come with the comprehensive free STM32 software libraries and examples that are available with the STM32Cube package. In the STM Nucleo Development Board, The ARDUINO Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The Nucleo G071RB board does not require any separate probe as it integrates the ST-LINK debugger/programmer. The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
- Microcontroller: STM32G071RB (Cortex-M0+)
- Memory: 128 KB Flash, 36 KB RAM
- Clock Speed: 64 MHz
- Expansion: ARDUINO® V3, ST morpho headers
- Debugging: Onboard ST-LINK/V3, SWD/JTAG
- Connectivity: USB Type-C, SPI, I2C, UART
Features:
- STM32 microcontroller in an LQFP64 or LQFP48 package
- 1 user LED shared with ARDUINO®
- 1 user and 1 reset push-buttons
- 32.768 kHz crystal oscillator
- Board connectors: ARDUINO® Uno V3 expansion connector, ST morpho extension pin headers for full access to all STM32 I/Os
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
Specification:
- Item Type: Development Board
- Microcontroller: STM32G071RB
- Clocks 32.768 kHz crystal oscillator ,24 MHz or 48 MHz HSE
- Connectivity: USB Type-C for ST-LINK
