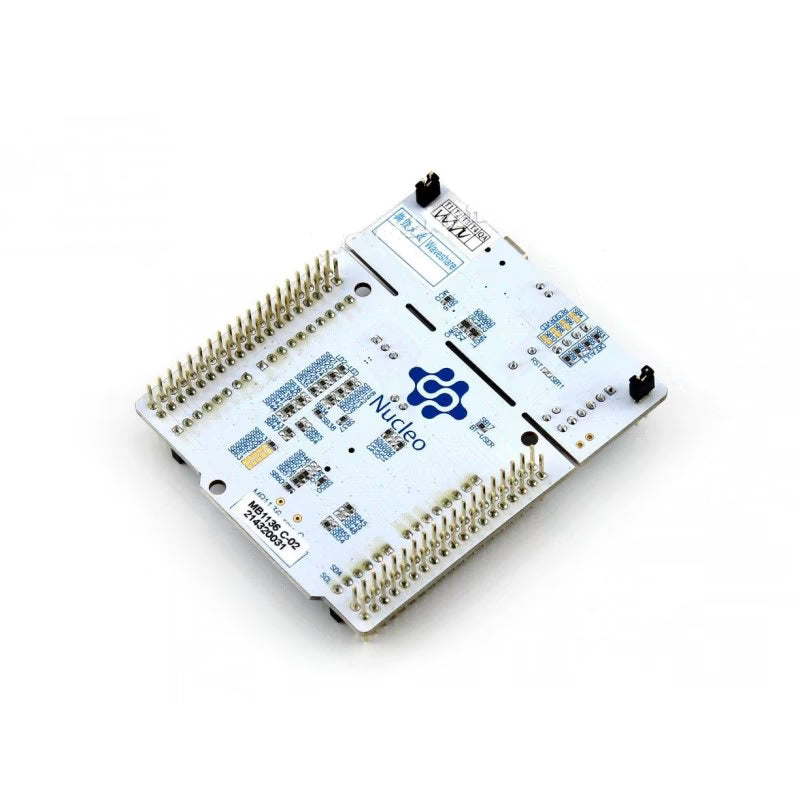

STMICROELECTRONICS NUCLEO-F072RB Development Board, Nucleo-64, STM32F072RB MCU, ST-LINK/V2-1, Arduino and ST Morpho Connectivity
STMICROELECTRONICS NUCLEO-F072RB Development Board, Nucleo-64, STM32F072RB MCU, ST-LINK/V2-1, Arduino and ST Morpho Connectivity
Couldn't load pickup availability
The NUCLEO-F072RB is an STM32 Nucleo development board with STM32F072RBT6 MCU that allows user to build their own prototypes for embedded applications. The Arduino connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer. The STM32 Nucleo board series is based on ARM Cortex-M 32-bit RISC cores optimized for high performance and energy efficiency. ARM Cortex-M features a high-density instruction set and a Nested Vectored Interrupt Controller (NVIC) providing excellent interrupt handling abilities.
Features:
- Product: NUCLEO-F072RB Development Board
- Two push buttons for the user and reset
- STM32 comprehensive software HAL library
- Three LED indications for USB communication, user LED, power LED
- Three interfaces are supported on USB. Virtual Com port, Mass storage, and Debug port
Specification:
- Item Type: Development Board
- Based On: STM32 Based
- Microcontroller: STM32 in QFP64 package
