-40%

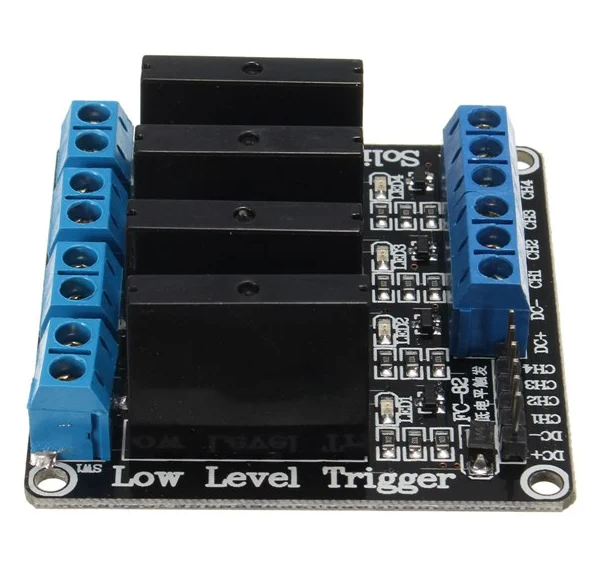

5V 2A 4 Channel SSR Solid State Relay Module (Low level Trigger)

Rs. 449.00 Rs. 750.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Has been assembled, and electrical test passed.
  • Led indicator for each relay.
  • Operating Voltage: 5V
  • Operating Current: 12.5mA
  • Maximum Load: 2A @ 240VAC

A Solid State Relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan in compared to the traditional mechanic relay.

When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

Note: Actual product may

Input parts :
  1. DC+: connect power positive
  2. DC-: connect power negative
  3. CH1: relay module signal trigger point (Effective low-level trigger)
  4. CH2: relay module signal trigger point (Effective low-level trigger)
  5. CH3: relay module signal trigger point (Effective low-level trigger)
  6. CH4: relay module signal trigger point (Effective low-level trigger)

We are also selling the same product with the good built quality which slightly costs more than this product(note that the except quality there are no differences in both product), click below to check it out.





  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
5V 2A 4 Channel SSR Solid State Relay Module (Low level Trigger)
