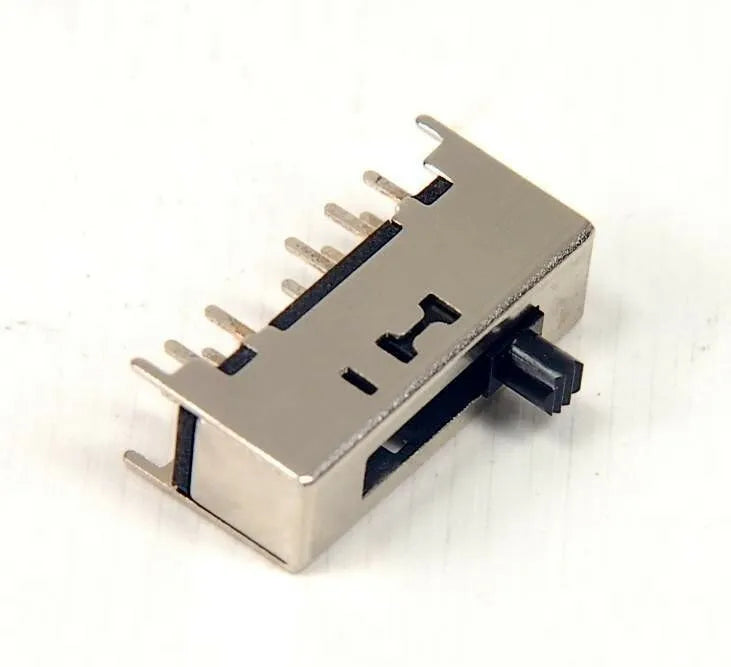

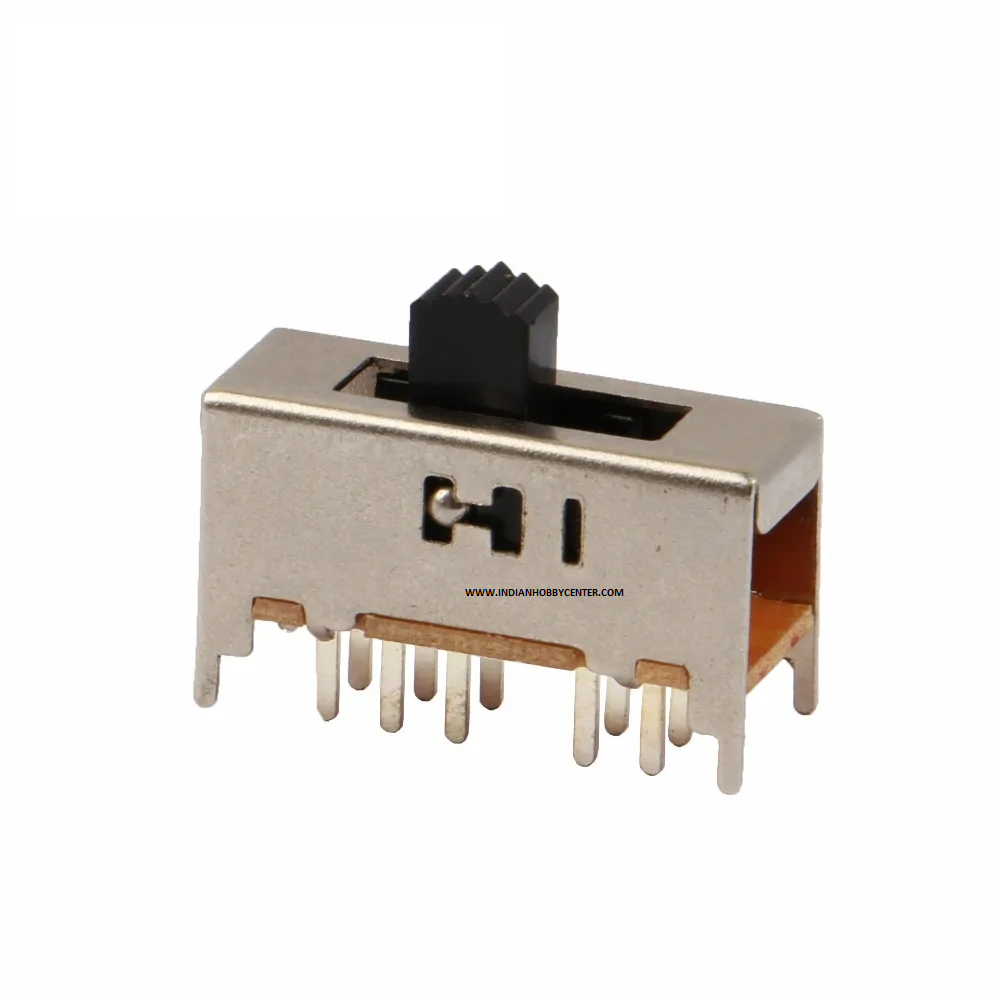

Slide Switch Double pole four throw 4 position 10 pin DIP type with 4 fixed pin handle heights
Slide Switch Double pole four throw 4 position 10 pin DIP type with 4 fixed pin handle heights
Regular price
Rs. 36.00
Regular price
Sale price
Rs. 36.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
4 Way DIP Slide Switch.
The slide switch is widely used in the modulation of the CPU .
SS-24H01-G6 - Switch, Slide.
Series: STS
Contacts: DP4T. (Double Pole Four Throw)
Switch, Slide. 10 Pin
Contacts: DP4T - 4 Position
Contacts: Silver Plated Copper Alloy
Current Type: AC/DC
AC Contact Rating: 300mA @125VAC
DC Contact Ratings: 0.30A@50VDC
Connection: PC Terminals.
Mechanical Mount: PCB Only, No Mounting Holes on Top Surface.
Mechanical Life: 10,000 Cycles
Body: 1.167" (29.6mm) long x 0.377" (9.5mm) wide x 0.478" (12.1mm) above board.
