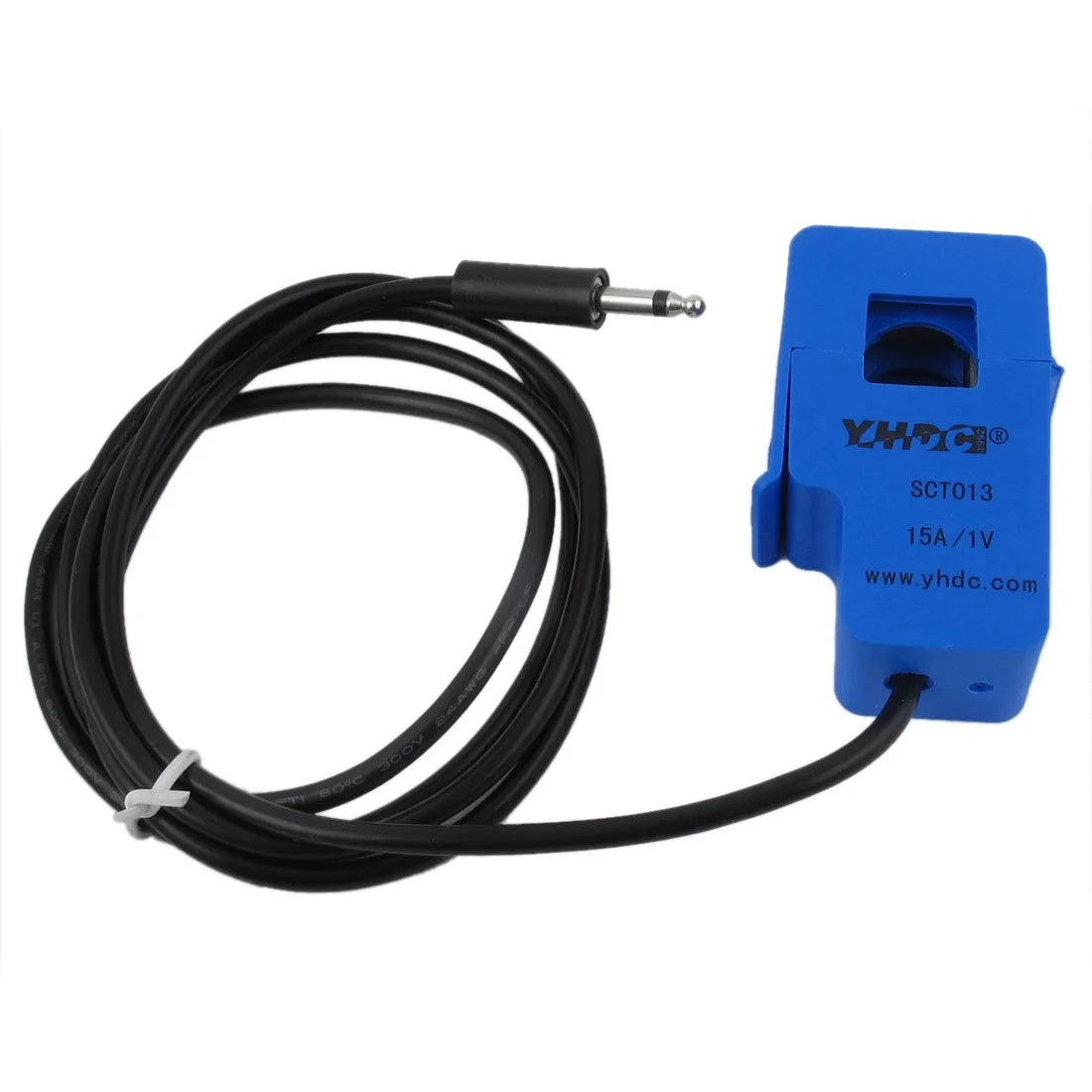

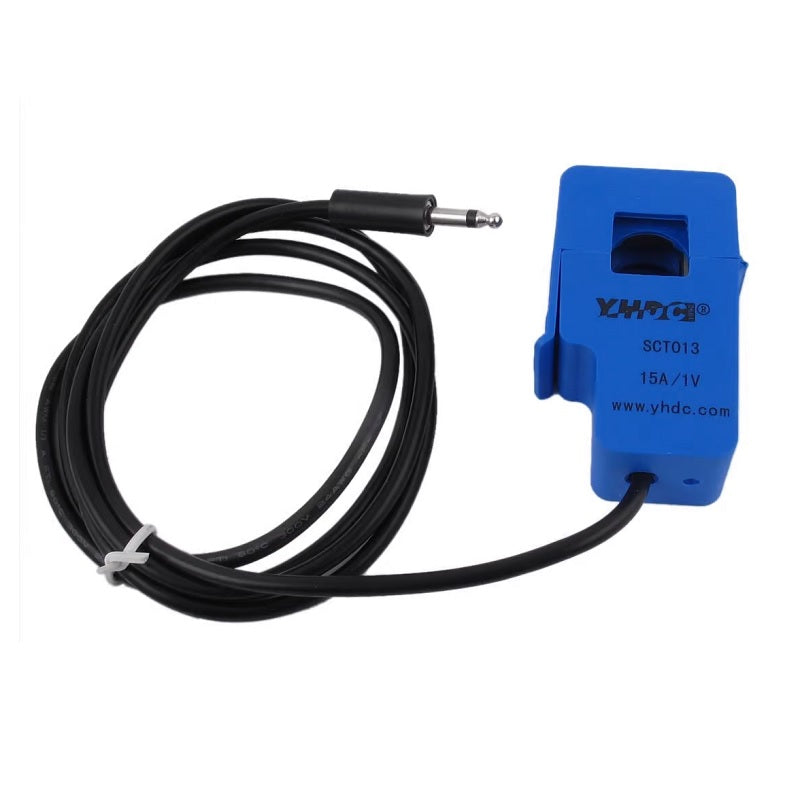

SCT 013 15A / 1v Non invasive AC Split Core Current Sensor Clamp Sensor

1. Input current (RMS): 15A.
2. Max current: 40A.
3. Work temperature:-25℃～+70℃.
4. Storage temperature:-30℃～+90℃.
5. Work voltage:660V.
6. Frequency range:50Hz-1KHz.
7. Dielectric strength:3.5KV 50Hz 1min

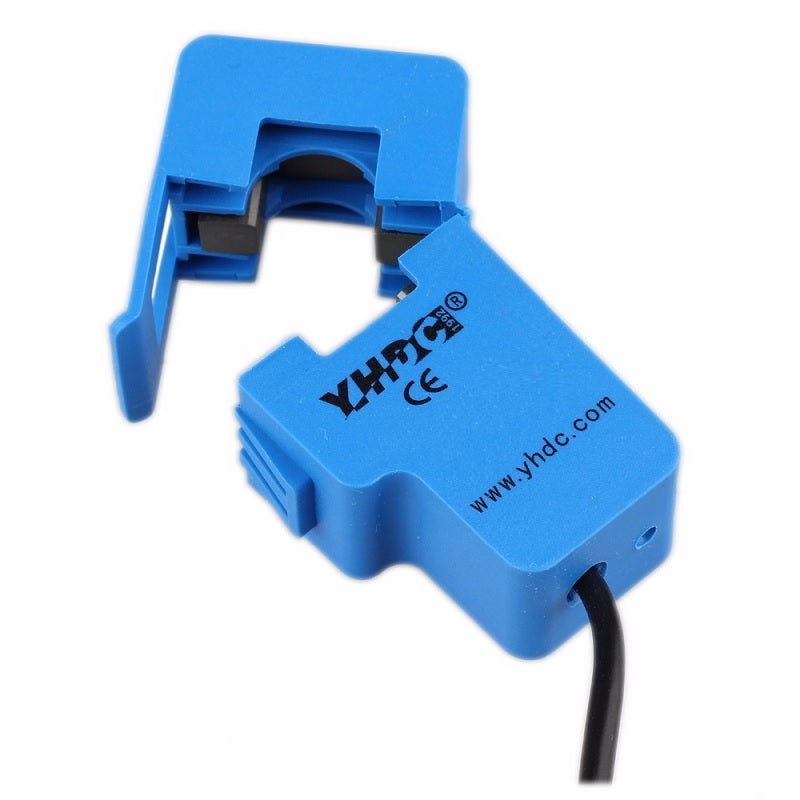

The SCT-013-015 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc.

Applications

1. Suitable for the current measuring.
2. Monitoring and protection of AC motor
3. Lighting equipment
4. Air compressor

Features :

1. Non-invasive current transformer
2. Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
3. Meet UL94-V0 flame retardant properties
4. Two forms of output current, voltage (voltage output built-in the sampling resistor).

Dimensional diagram:

Package Includes:

1 x SCT-013-015 Non-invasive AC Current Sensor Clamp Sensor 15A.
