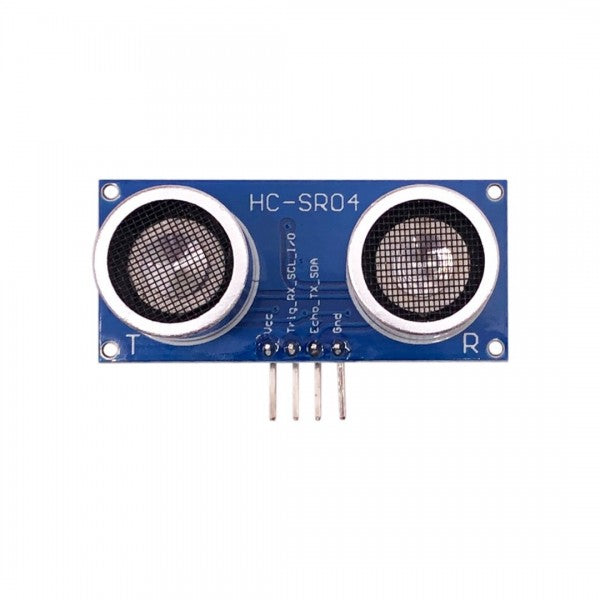

RCWL-9610 Design HC SR 04 Ultrasonic Sensor
RCWL-9610 Design HC SR 04 Ultrasonic Sensor
Regular price
Rs. 59.00
Regular price
Sale price
Rs. 59.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
To Explore HC-SR04 Ultrasonic Sensor, Click here

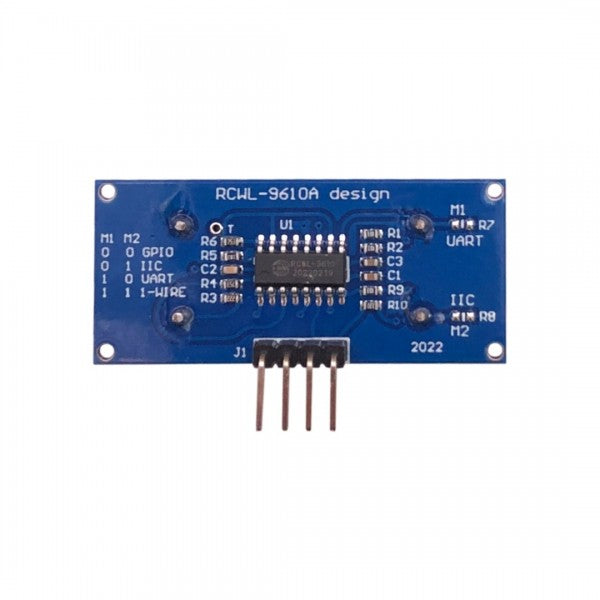

The sensor works standard with the trig/echo, but it is also possible to modify the sensor by soldering 10kΩ resistors on the places M1 (R2) and M2 (R3). This means that the sensor can also be used with I2C, 1-wire or UART. However, we cannot provide support for this.
Specifications:
- Supply voltage: 2.8 - 5.5V DC
- Signal voltage: 2.8 - 5.5V (same as supply voltage)
- Detection range: 2-450cm
- Current: <2mA
- Resolution: 3mm
- Sensor angle: <15°

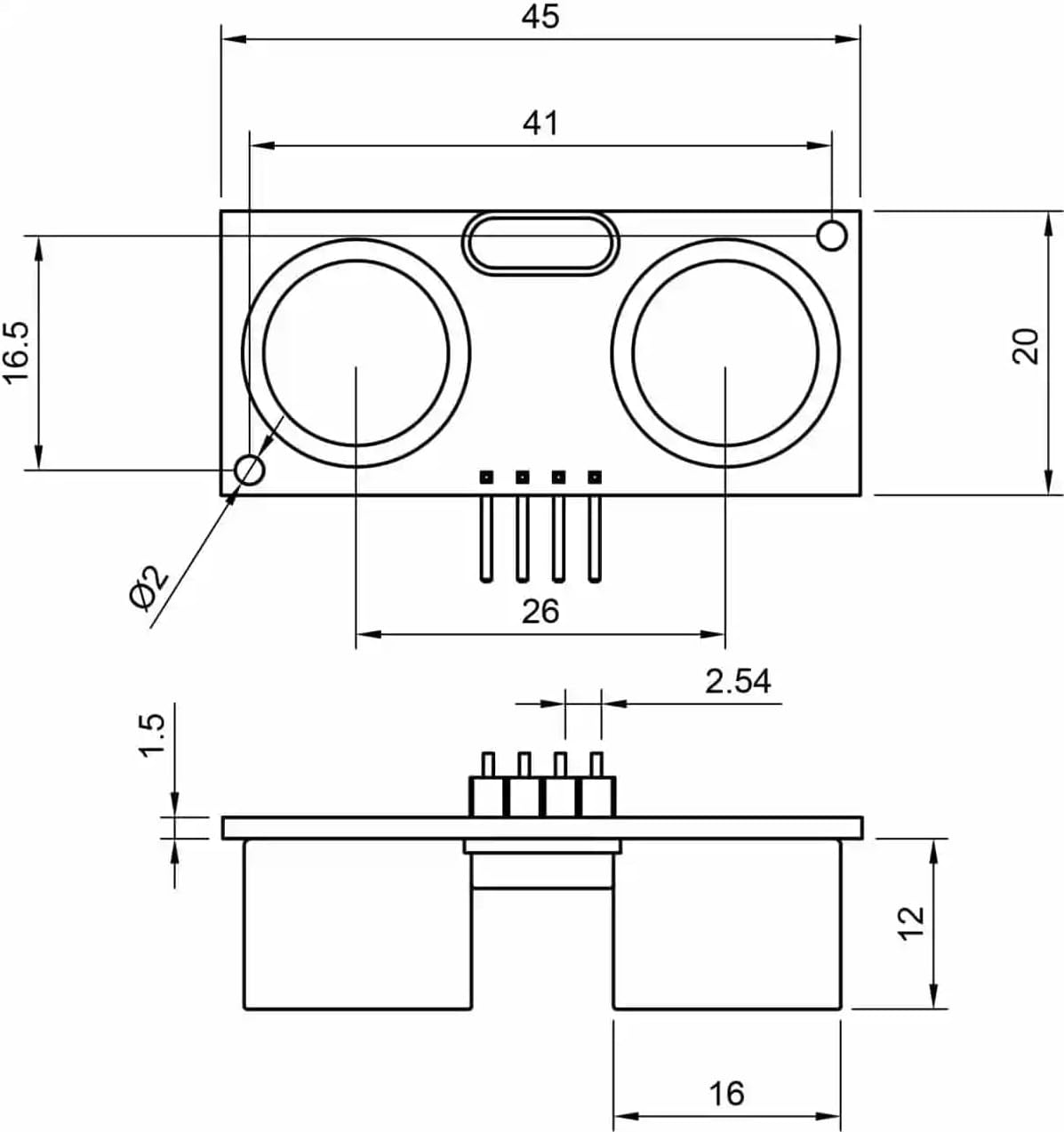

- Dimensions: 45 x 20mm
