HC SR 04 Ultrasonic Sensor

Rs. 85.00 Rs. 130.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  1. Affordable Price
  2. Operating Voltage: 5 V
  3. Sonar Sensing Range: 2-400 cm
  4. Max. Sensing Range: 450 cm
  5. Frequency: 40 kHz



This HC-SR04-Ultrasonic Range Finder is a very popular sensor that is found in many applications where it requires measuring distance and detecting objects.

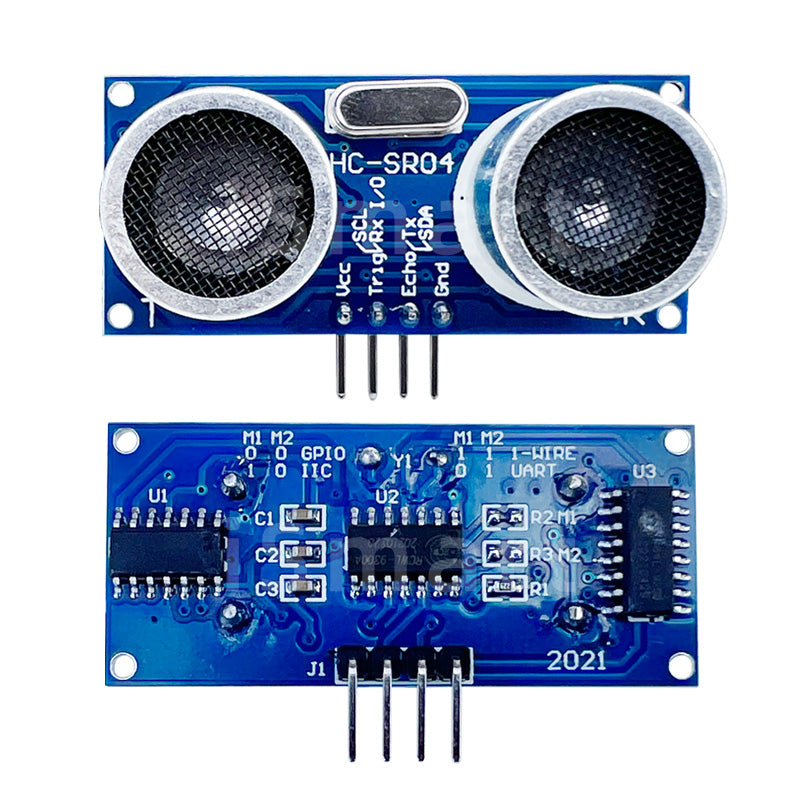

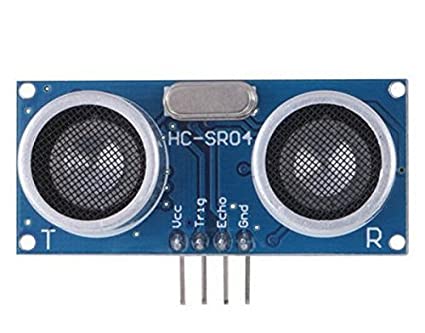

The module has two eyes like projects in the front which forms the Ultrasonic transmitter and Receiver.  The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do.

This Ultrasonic Sensor module is a transmitter, a receiver, and a control circuit in one single pack!! It has very handy and compact construction. It offers excellent range accuracy and stable readings in an easy-to-use package. Its operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect).

The Trigger and the Echo pins are the I/O pins of this module and hence they can be connected to the I/O pins of the microcontroller/Arduino. When the receiver detects the return wave the Echo pin goes high for a particular amount of time which will be equal to the time taken for the wave to return back to the sensor.

Ultrasonic Ranging Module HC-SR04 provides 2cm-400cm non-contact distance sensing capabilities, Ranging accuracy up to 3mm.


Wiring

+5V(positive)

Trig(control)

Echo(receive)

GND(negative)



Features :

  1. Measures the distance within a wide range of 2cm to 400cm
  2. Stable performance
  3. Accurate distance measurement
  4. High-density
  5. Small blind distance
