Arduino Pro Micro
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Microcontroller ATmega32U4
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 20
PWM Channels 7
Analog Input Channels 12
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
--

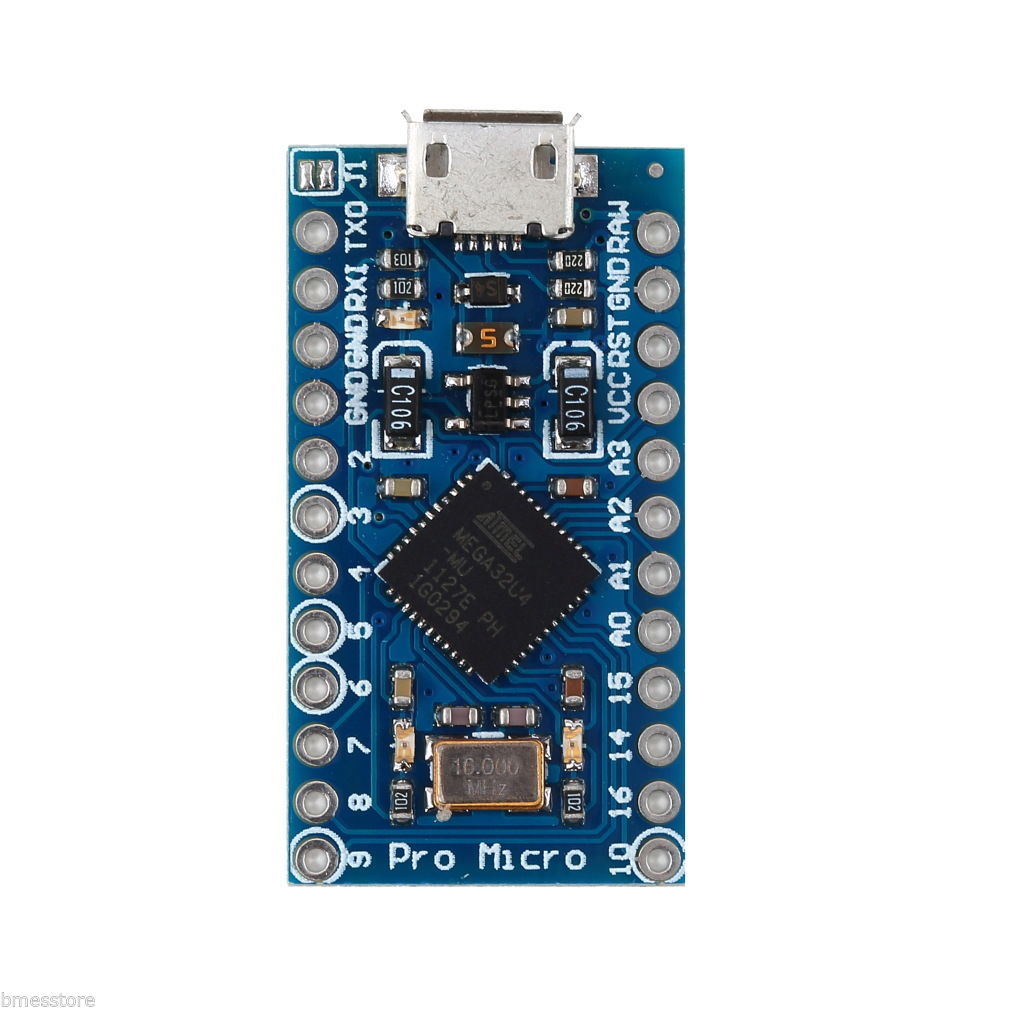

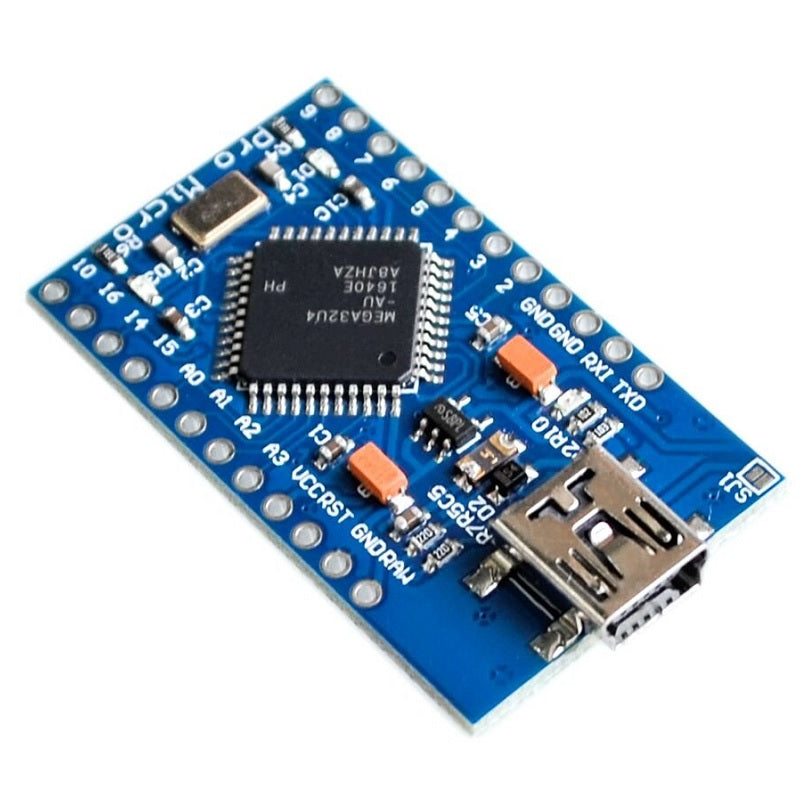

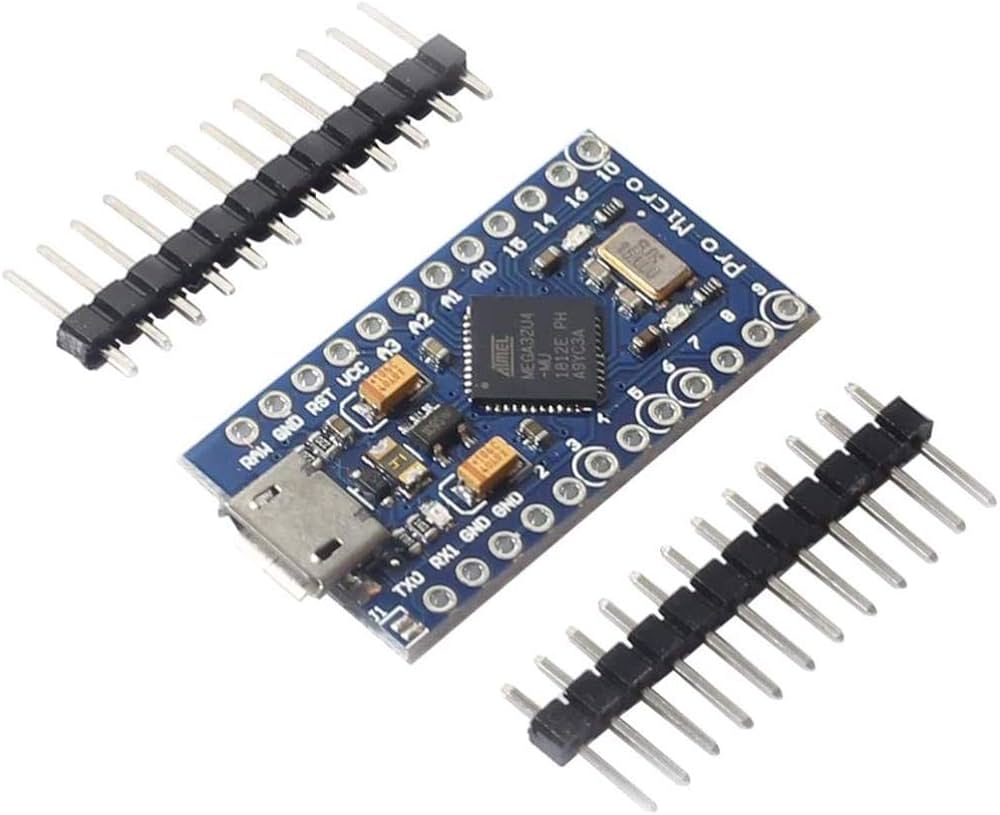

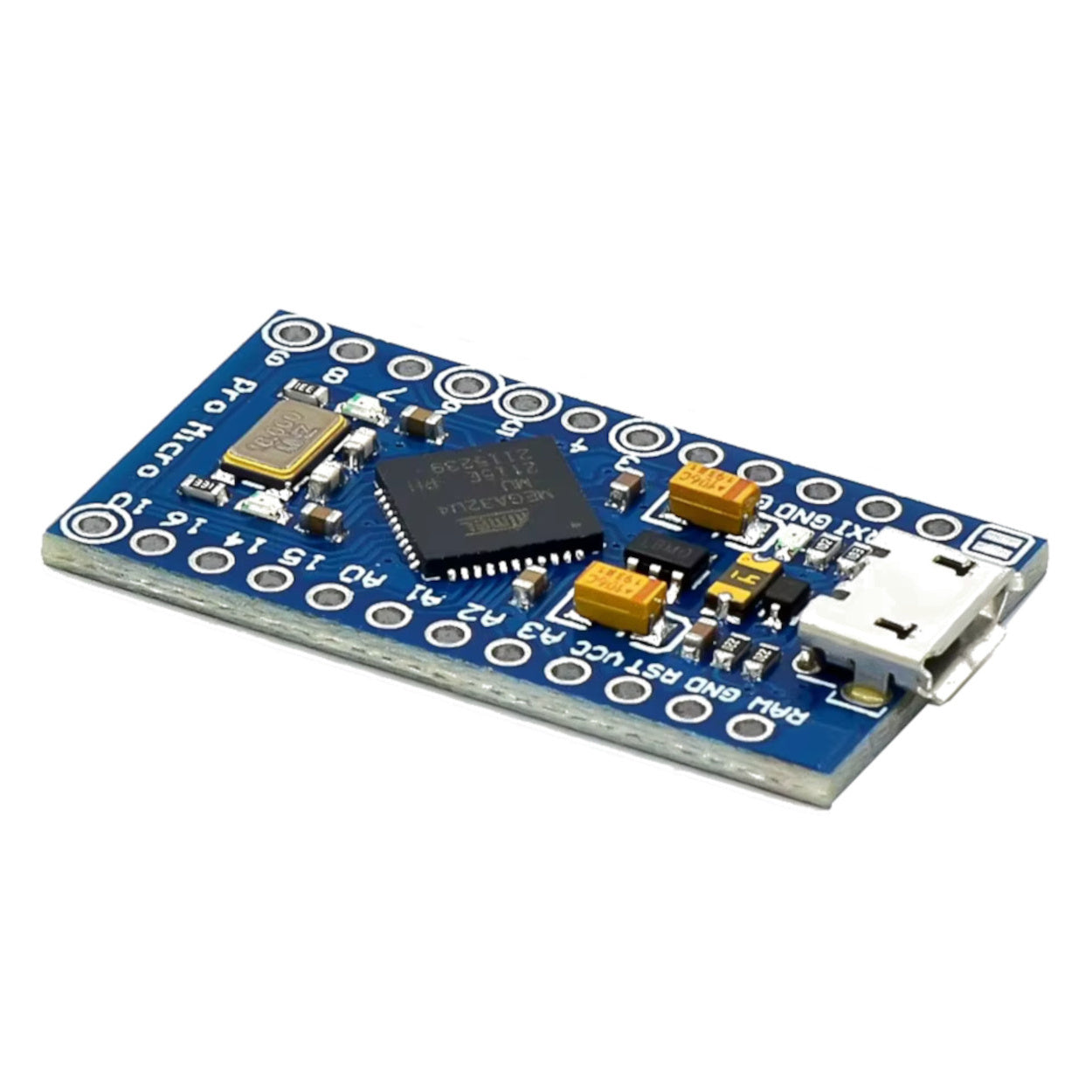

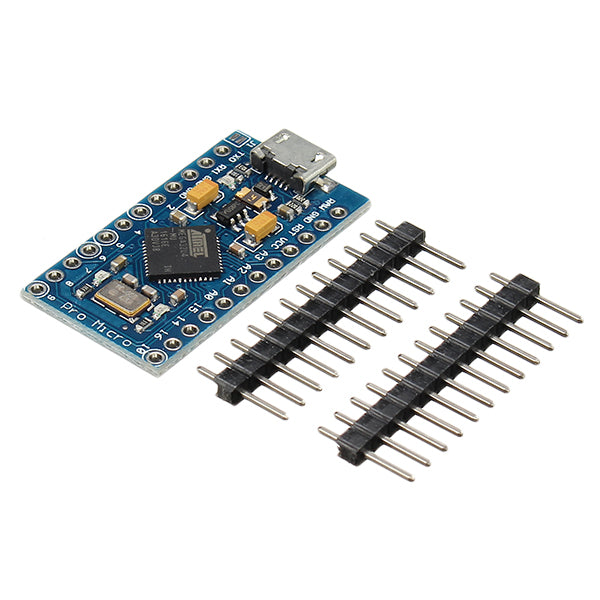

The Micro is a microcontroller board based on the ATmega32U4 , developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Features :
- ATMEGA32U4 running in 5V / 16MHz
- Support Arduino IDE V1.0.1
- Micro USB interface programming on the board
- Four 10-bit ADC pin
- 12 digital I / O (5 PWM capability)
- Rx and Tx hardware serial connection.
