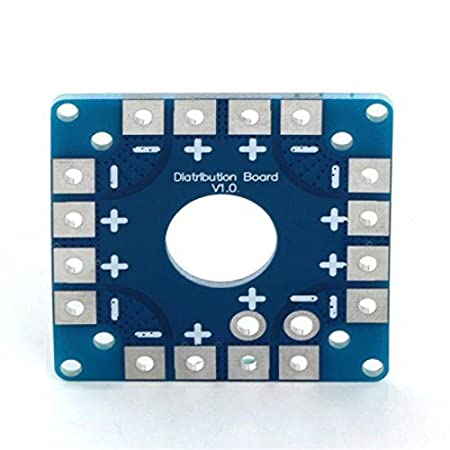

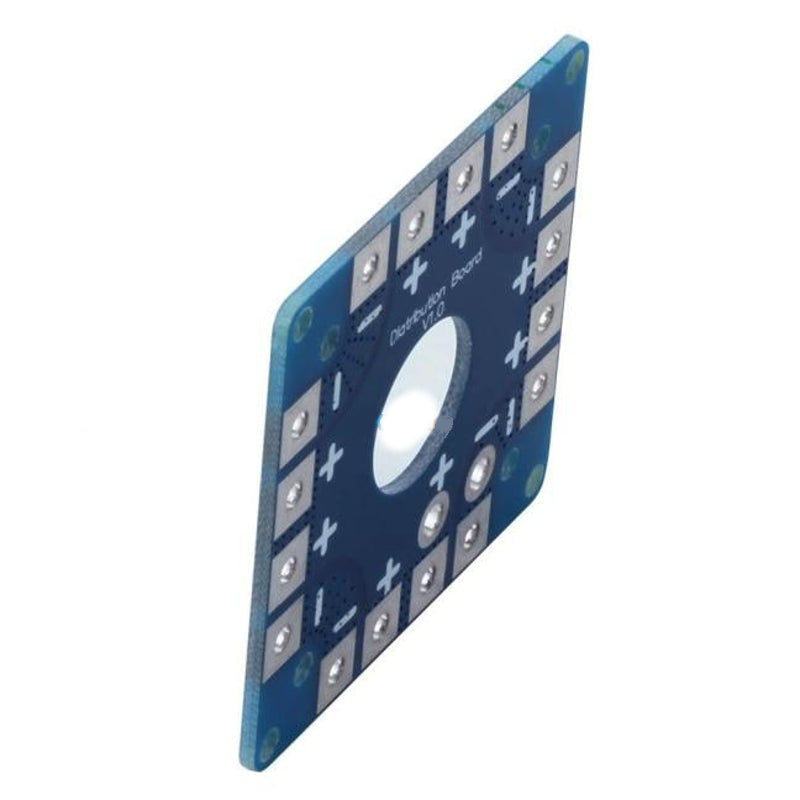

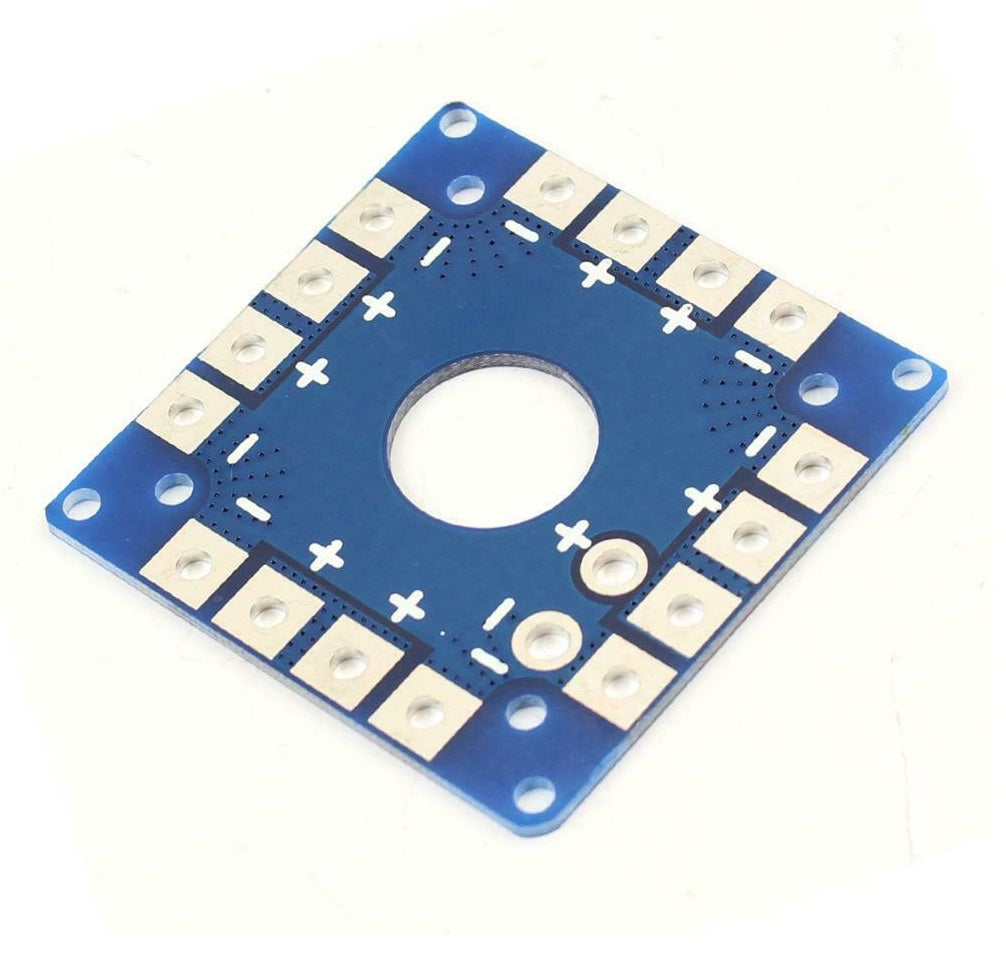

Power Distribution Battery Board for Quadcopter Multi-Axis Model 100A PDB
Power Distribution Battery Board for Quadcopter Multi-Axis Model 100A PDB
Couldn't load pickup availability
- Material: glass fiber
- Compatible with MK KK flight control installment pitch of holes
- Compatible with MK KK flight control system
- Can connect 1-8 ESC.
- Board Dimensions : 50 x 50 x 2 mm.
- Weight: 8 gm.
- Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)
These lightweight distribution boards make powering multi-rotor aircraft easy. Simply solder a battery connection onto the two central terminals, and you've got eight pairs of connections to use - perfect for quadcopters, hexacopters and even octocopters. These boards are great for smaller multirotor builds. They're compact and lightweight, and offer large solder pads - making them easy to work with. These boards can handle some serious current - up to 20A per output for a quadcopter build, or drop that down to 10A each for an octocopter. Material: glass fiber Compatible with MK KK flight control installment pitch of holes Compatible with MK KK flight control system Can connect 1-8 ESC Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)
