Pico RP2040 IO Expansion Shield - ADIY

Pico RP2040 IO Expansion Shield - ADIY

Rs. 280.00
Rs. 280.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
Trust

Description:-

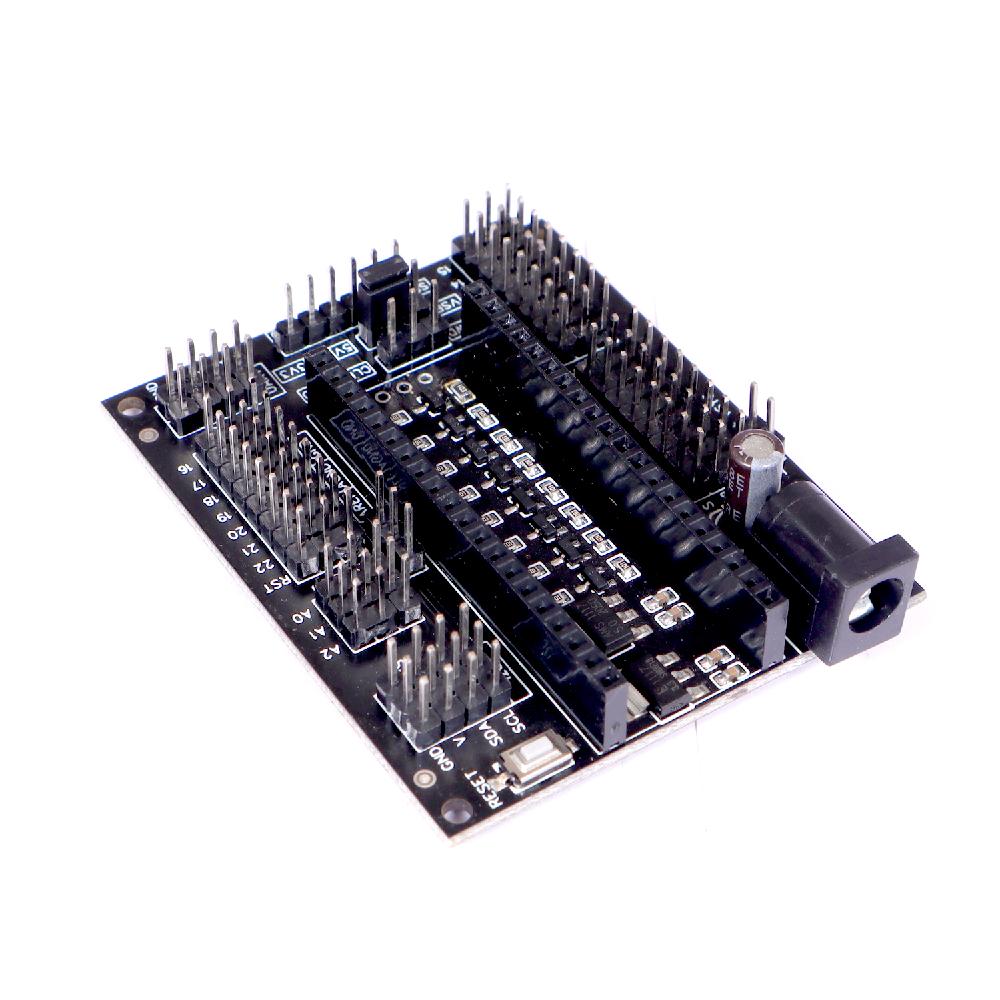

ADIY Pico RP2040 IO Expansion Shield  acts as a breakout board for the Pico RP2040. In addition, each pinout includes power and GND pins for easy connection to sensors or servos. Some of the pinouts include a 5V/3.3V selectable power making it easier to work with 5V and 3.3V digital devices. The unit comes partially/fully assembled. Just plug in your Pico and you are ready to go.

Pico RP2040 IO Expansion Shield is specifically designed to facilitate an easy connection between Pico RP2040 and many other devices. In essence, it expands the Pico RP2040 controller to link those devices in a simple and trouble-free manner.

Features : ADIY Pico RP2040 IO Expansion Shield

  • Power input via a barrel jack or VSYS header.
  • 23 GPIO are digital-only (GND, power, and signal format).
  • 8 GPIO ports with 5V/3.3V selectable power.
  • 3 Analog pins with power output and GND.
  • 16 PWM pins.
  • 2 I2C ports with 3.3V power and 1 I2C port with a 5V/3.3V selectable power.
  • 1 UART port with 3.3V power and 1 UART port with a 5V/3.3V selectable power.
  • 1 SPI port with 5/3.3V selectable power.
  • 1 AREF output and 1 AGND output.
  • 1 SWD Port.
  • 1 3.3V, 1A capable regulator output, available all through the board.
  • 1 5V, 1A capable regulator output, available all through the board.
  • 1 Reset button.
  • 1 Power LED.

Specifications : ADIY Pico RP2040 IO Expansion Shield

  • Input Voltage(V): 6 ~ 15
  • No. of Analog Pins: 3
  • No. of PWM Pin: 16
  • Width (mm):  65
  • Height (mm): 54
  • Weight (gm): (need to measure)
  • Shipment Weight: (need to measure)
  • Shipment Dimensions : (need to measure)
