• Operating Voltage: 7-15V
• Model No.: PAM8610
• Driver Mode: Class D (PWM)
• Power Rating: 15W
• Dimensions (mm): 30.5 × 25.5 × 2.6
• Weight: 3g

• This plate with a switching function, SW short, will turn off the power amplifier.
• Working Mode: Class D (PWM modulation type)

The PAM8610 is a 15W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM 8610 runs on a 7V to 15V supply at a much higher efficiencythan competitors’ ICs.

How to use:

1. The power supply voltage limit is 16.5V, do not use more than this voltage.
2. The power supply is recommended for 12v, 3A power supply filter better.
3. 4-8 inch stereo speakers recommended.
4.  Do not short-circuit the audio output to each other or shorted to ground.
5. Carefully check before electricity, ensure the wiring is correct before electricity.

1. This plate with a switching function, SW short, will turn off the power amplifier.
2. Working Mode: Class D (PWM modulation type).

Package Includes :

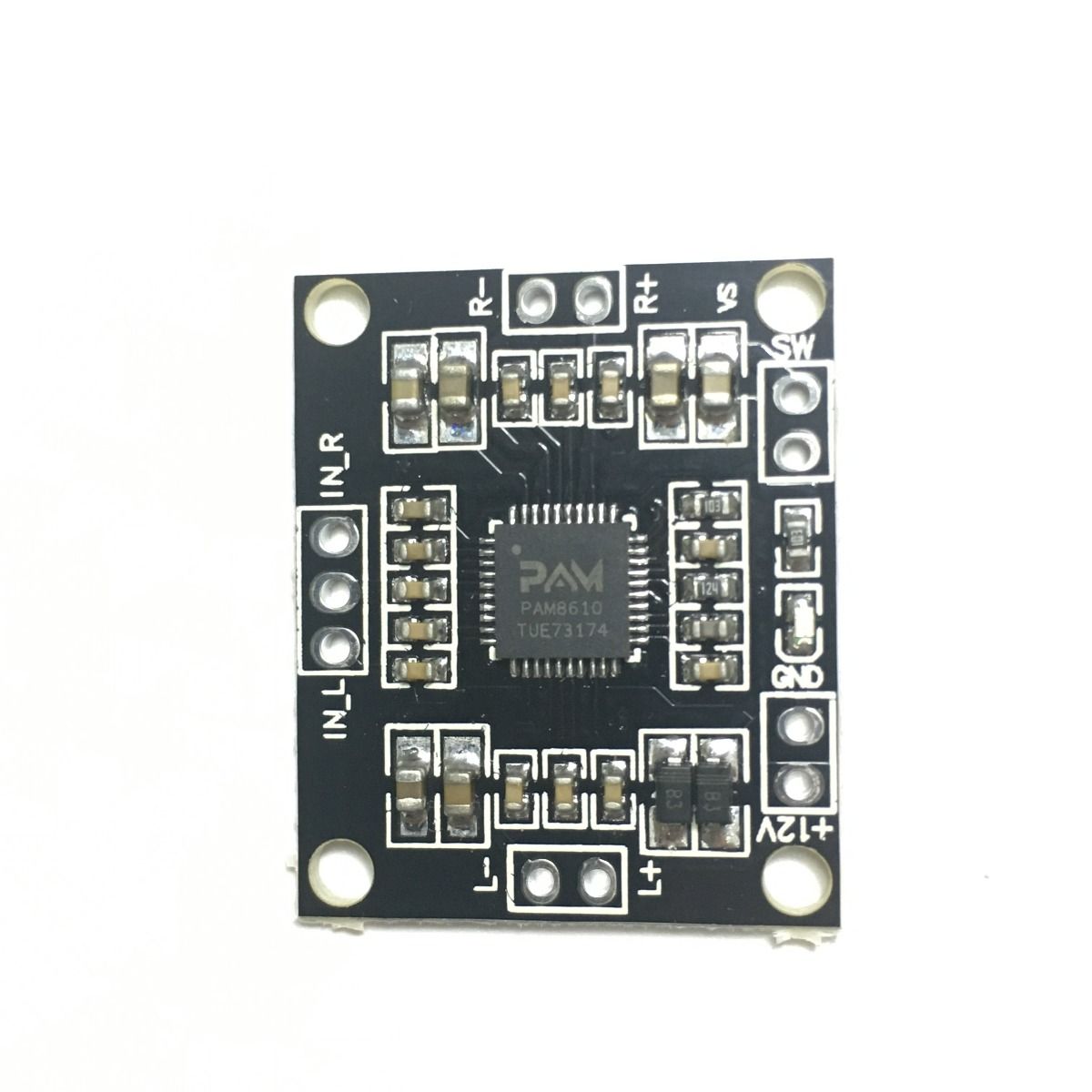

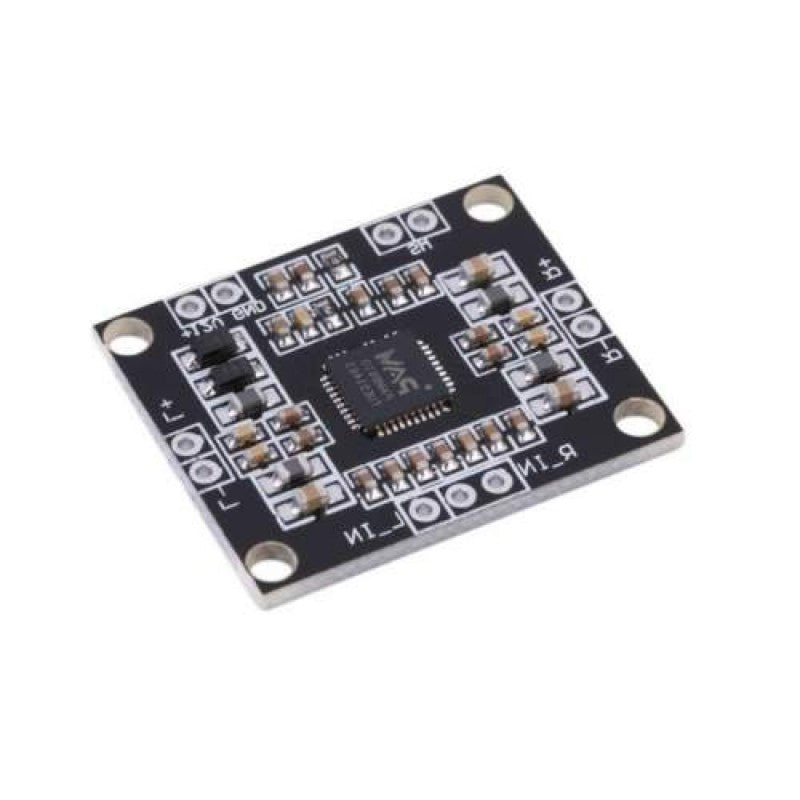

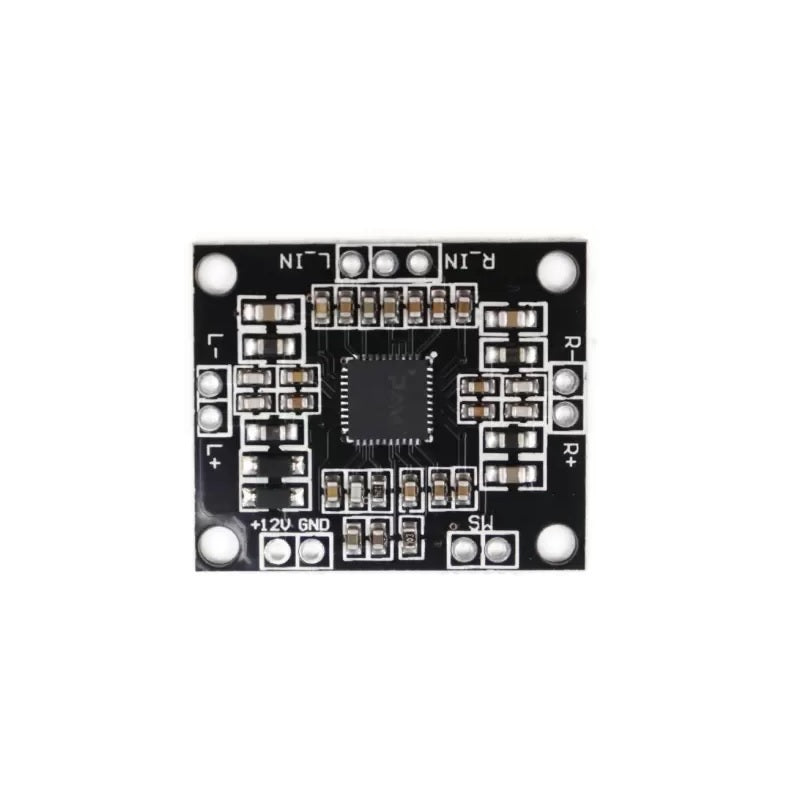

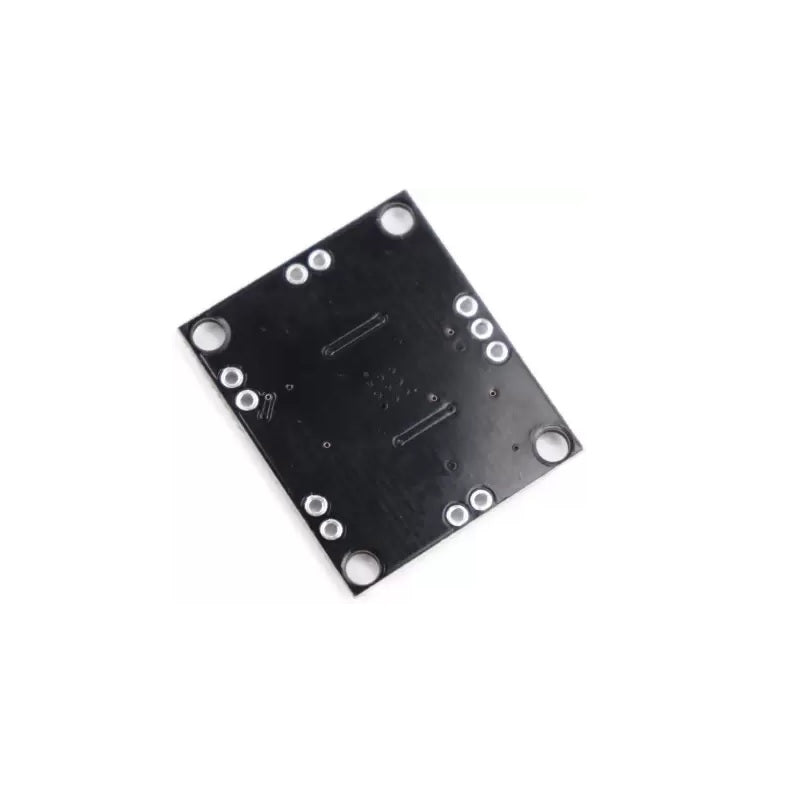

• 1 x PAM 8610 Dual Channel Stereo Class D Digital Amplifier Board.
