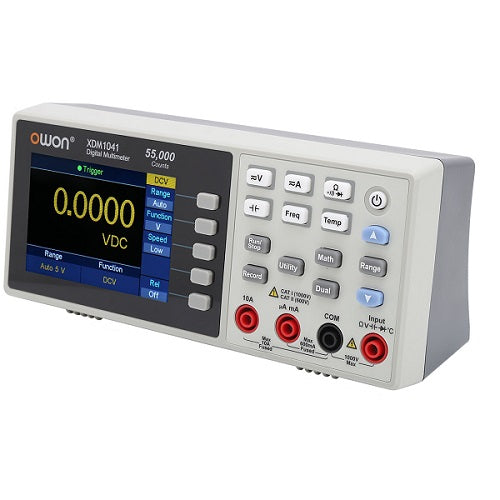

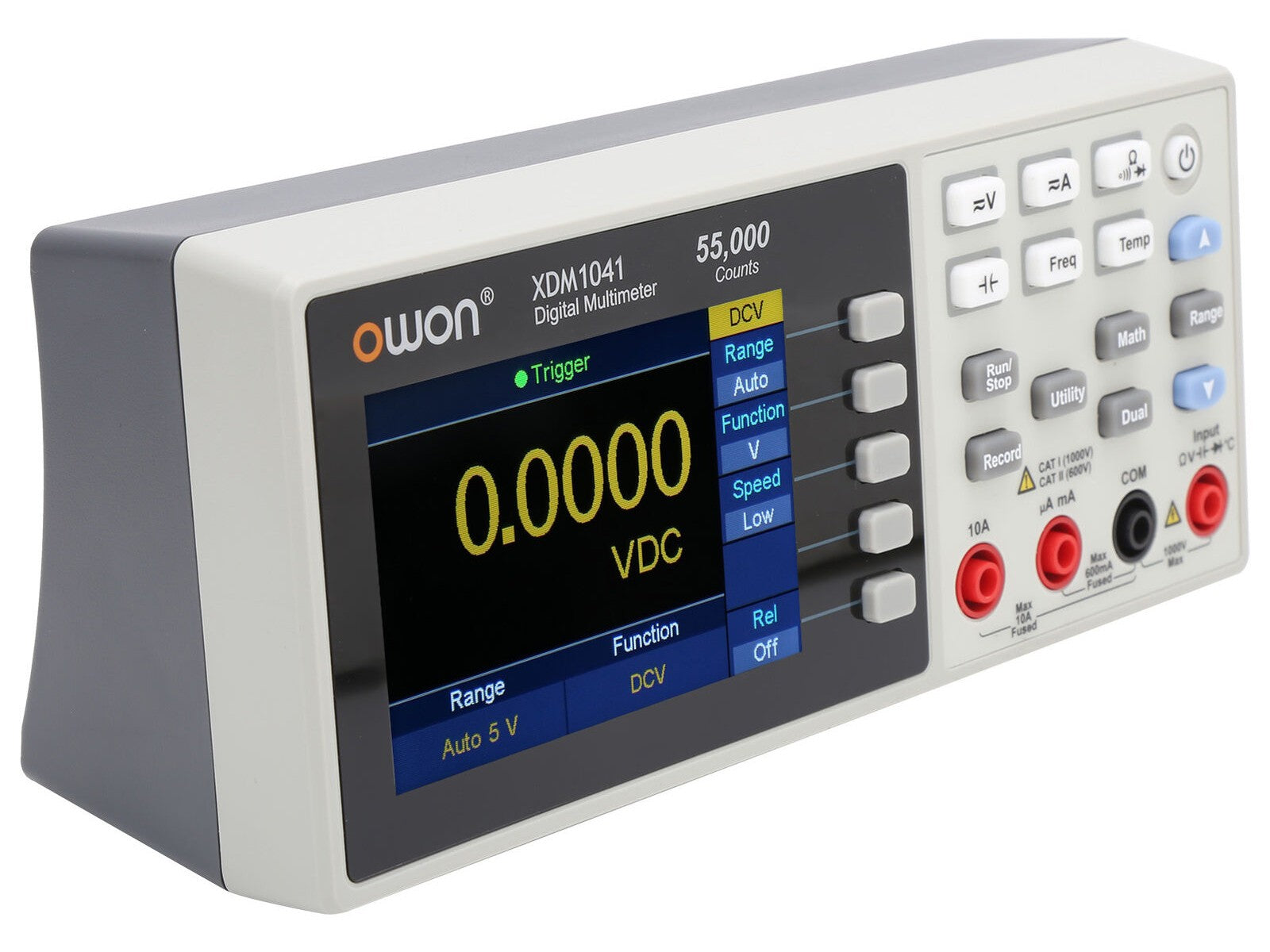

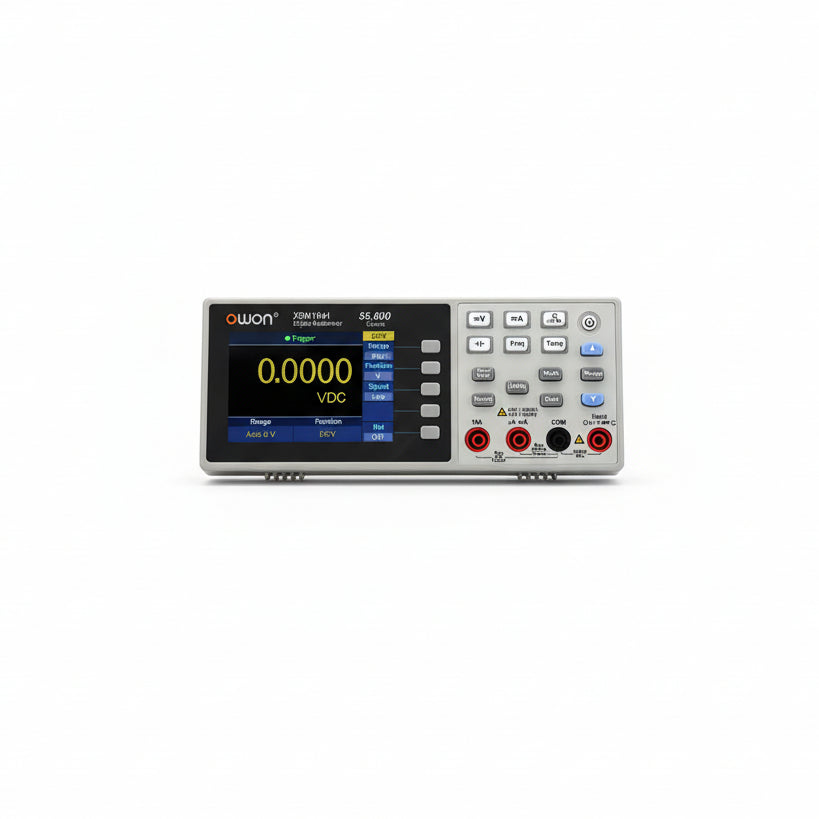

OWON XDM1041 Digital Multimeter True RMS- Mini Benchtop USB Interface
OWON XDM1041 Digital Multimeter True RMS- Mini Benchtop USB Interface
Regular price
Rs. 10,999.00
Regular price
Sale price
Rs. 10,999.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
This instrument has stable performance, high accuracy, high reliability, clear reading function. Can test AC / DC current, AC / DC voltage, resistance, capacitance, etc, with diode testing, continuity, temperature and other functions.- USB Interface
- 3.7 in high resolution LCD digital display screen, it is more clear and convenient to measuring datas.
- An excellent tool for instruments and laboratories, factories, radio enthusiasts and families.
- Up to 65 readings per second, support for two ‑ line display, support SCPI, maximum display 55000 counts.
- Data logging function, you can record the measured data into the memory, and then use the computer to read and process the recorded data.
- Simple to operate and easy to use interface, you can access, store, process and manage data by simply displaying the results in tabular form

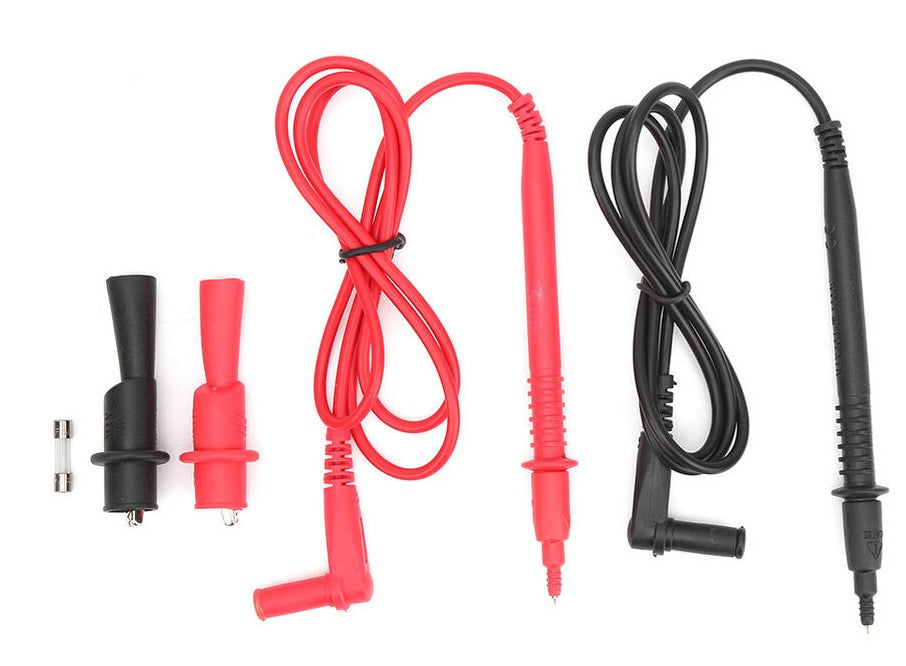

- Package List: Mini Desktop Multimeter, Test Leads, Instruction Manual, Power Adapter
Technical Specifications:
- DC Voltage(DCV) 50.000mV 0.001mV 0.1%+10
500.00mV 0.01mV 0.05%+5
5.0000V 0.0001V 0.05%+5
50.000V 0.001V 0.05%+5
500.00V 0.01V 0.1%+5
1000.0V 0.1V 0.1%+10
- AC Voltage(ACV) 500mV-750V 20Hz~45Hz 1%+30
45Hz~65Hz 0.5%+30
65Hz~1KHz 0.7%+30
- DC Current(DCA) 500uA 0.01uA 0.15%+20
5000uA 0.1uA 0.15%+10
50mA 0.001mA 0.15%+20
500mA 0.01mA 0.15%+10
5A 0.0001A 0.5%+10
10A 0.001A 0.5%+10
- AC Current(ACA) 500uA-500mA / 0.5%+20
5A-10A 1.5%+20
Resistance (Ω) 500Ω 0.01Ω 0.15%+10
5KΩ 0.0001KΩ 0.15%+5
50KΩ 0.001KΩ 0.15%+5
500KΩ 0.01KΩ 0.15%+5
5MΩ 0.0001MΩ 0.3%+5
50MΩ 0.001MΩ 1%+10
- Frequency (HZ) 10.000Hz-60MHz / ±(0.2%+10)
- Capacitance (F) 50nF-500uF / 2.5%+5, 5mF-50mF 5%+10
- Diode 3.0000V 0.0001V /
- Continuity 1000Ω 0.1Ω Adjustable threshold
- Temperature Ktype,PT100
- Maximum Display 55000 counts
- Record duration 15ms-9999.999s
- Record length 1,000 points
- Display screen 3.7in TFT LCD, resolution is 480 x 320
- Working power supply AC 90-240V
- Frequency 50/60HZ
- Power 15W
