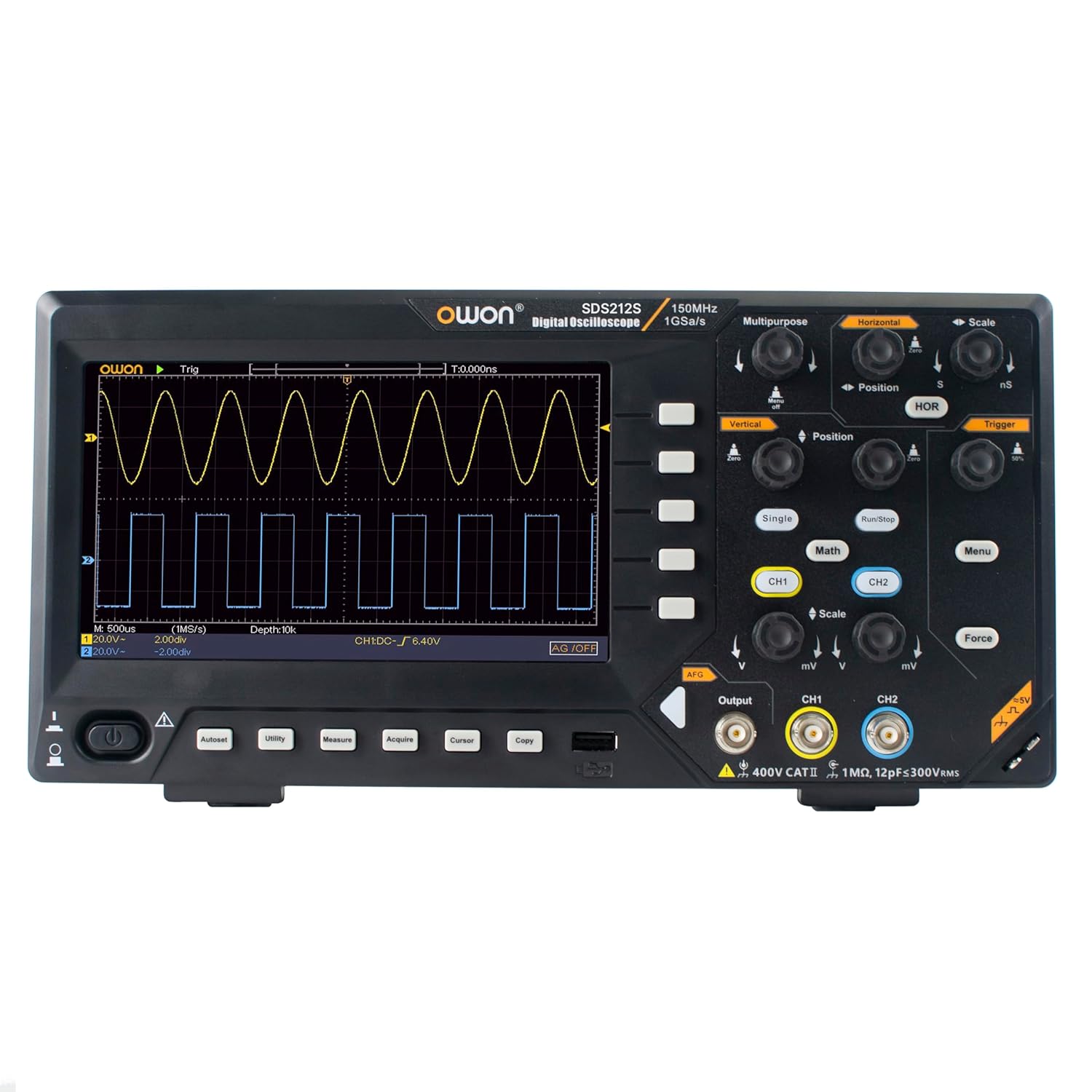

OWON SDS212S Digital Storage Oscilloscope with Function Generator (120 Mhz)
OWON SDS212S Digital Storage Oscilloscope with Function Generator (120 Mhz)
Couldn't load pickup availability
+ Dual-channel Oscilloscope+25MHz Signal Generator（SDS210S,215S,220S）
+ 100MHZ、150MHz, 200MHz bandwidth
+ Dual-channel independent 1GS/s real-time sampling rate
+ 20M memory depth
+ Support 30 Automatic Waveform Measurements
+ 6-digit High-precision Frequency Counter
+ FFT Spectrum Analysis
+ Communicate with PC via USB Device interface, support SCPI and LabVIEW functions, provide free computer software and some programming development demos, so you can remotely control the instrument and conduct secondary development.
+ 7-inch TFT LCD display
|
Model |
SDS210(S) |
SDS215(S) |
SDS220(S) |
|
|
Bandwidth |
100MHz |
150MHz |
200MHz |
|
|
Channels |
Dual |
|||
|
Sample Rate |
Max 1GS/s |
|||
|
Acquisition Mode |
Normal, Peak detect, Averaging |
|||
|
Input Coupling |
DC, AC , Ground |
|||
|
Input Impedance |
1MΩ±2%，in parallel with 20 pF±5 pF |
|||
|
Probe Attenuation Factor |
1X，10X，100X，1000X |
|||
|
Record length |
20M |
|||
|
Horizontal Scale (s/div) |
2 ns/div – 1000 s/div, step by 1 – 2 - 5 |
|||
|
Vertical Sensitivity |
2 mV/div～10 V/div |
|||
|
Automatic Measurement |
Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area. |
|||
|
Waveform Math |
＋, －, ×, ÷, FFT |
|||
|
Waveform Storage |
16 waveforms |
|||
|
Trigger Type |
Edge, Video |
|||
|
Communication Interface |
USB Host and Device |
|||
|
Frequency Counter |
available |
|||
|
Waveform Generator Specifications （only for SDS210S,215S,220S） |
|
|
Standard Waveforms |
Sine wave, square wave, ramp wave, pulse wave, arbitrary wave |
|
Arbitrary Waveforms |
Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds |
|
Max Frequency Output |
25MHz |
|
Arbitrary Waveform |
0.1Hz～5MHz |
|
Sample rate |
125MSa/s |
|
Amplitude (50Ω) |
0.005Vpp ～ 3Vpp |
|
DC Offset Range |
±(3V) (high resistance) |
|
Channel |
1 |
|
Waveform Length |
8k |
|
Vertical Resolution |
14 bit |
|
Load Impedance |
50 Ω |
|
Others |
|
|
Display |
7 inch（800*480）LCD |
|
Dimension (L x H x D) |
301mm × 152mm × 70 mm |
|
Weight |
≈ 1.1kg |
