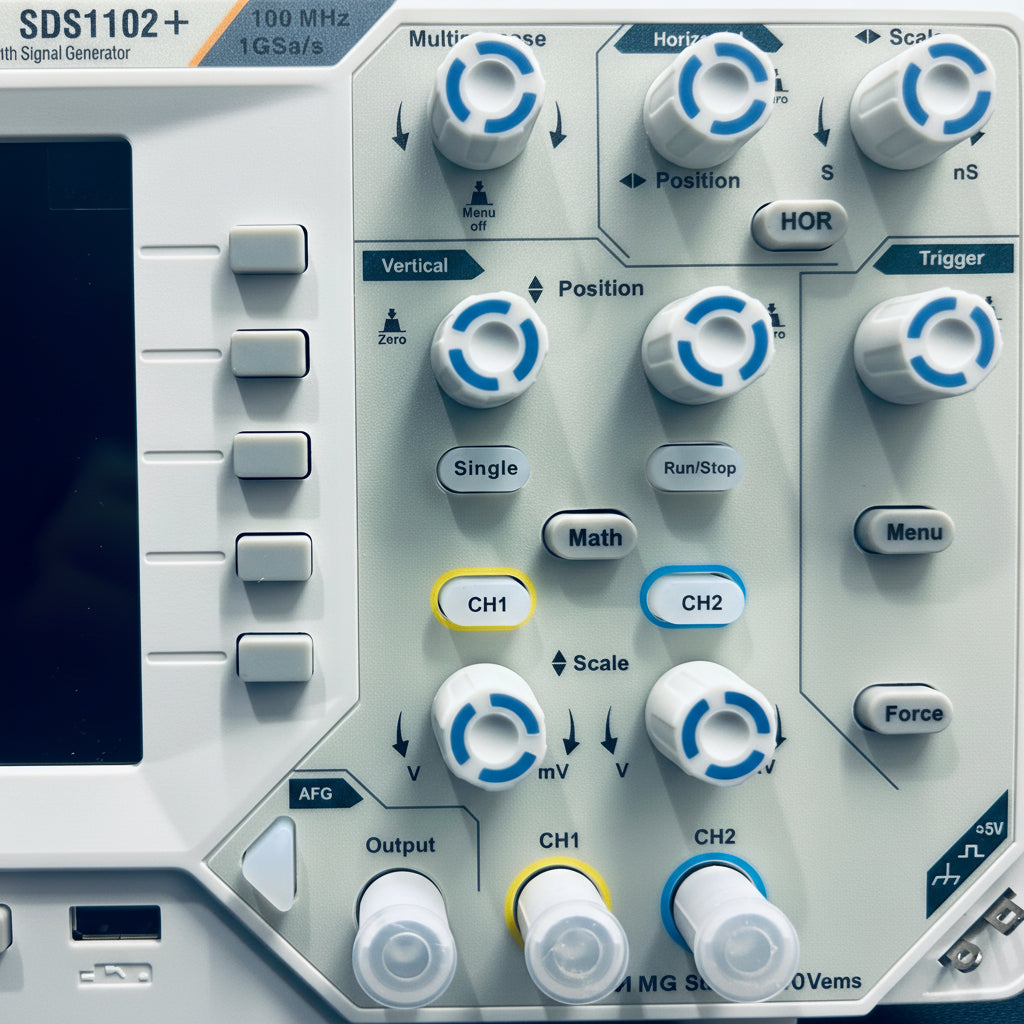

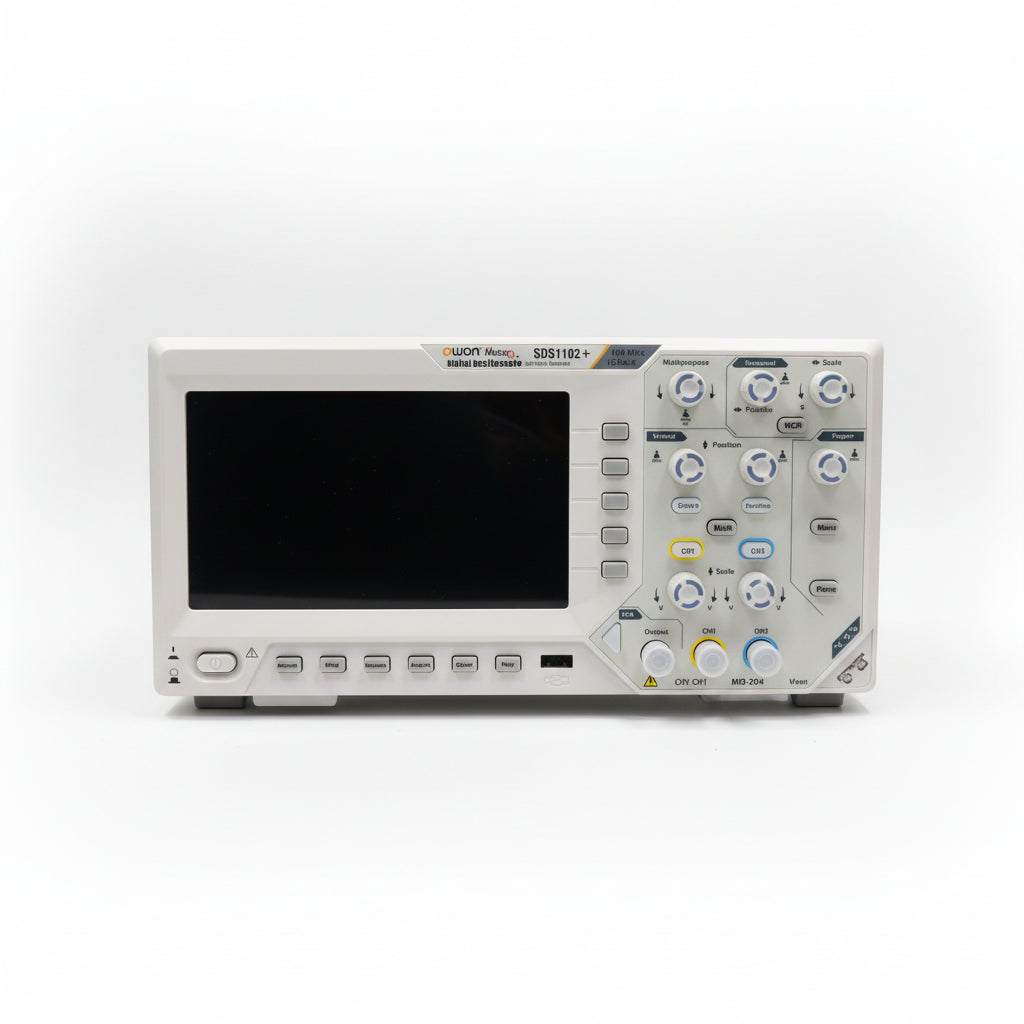

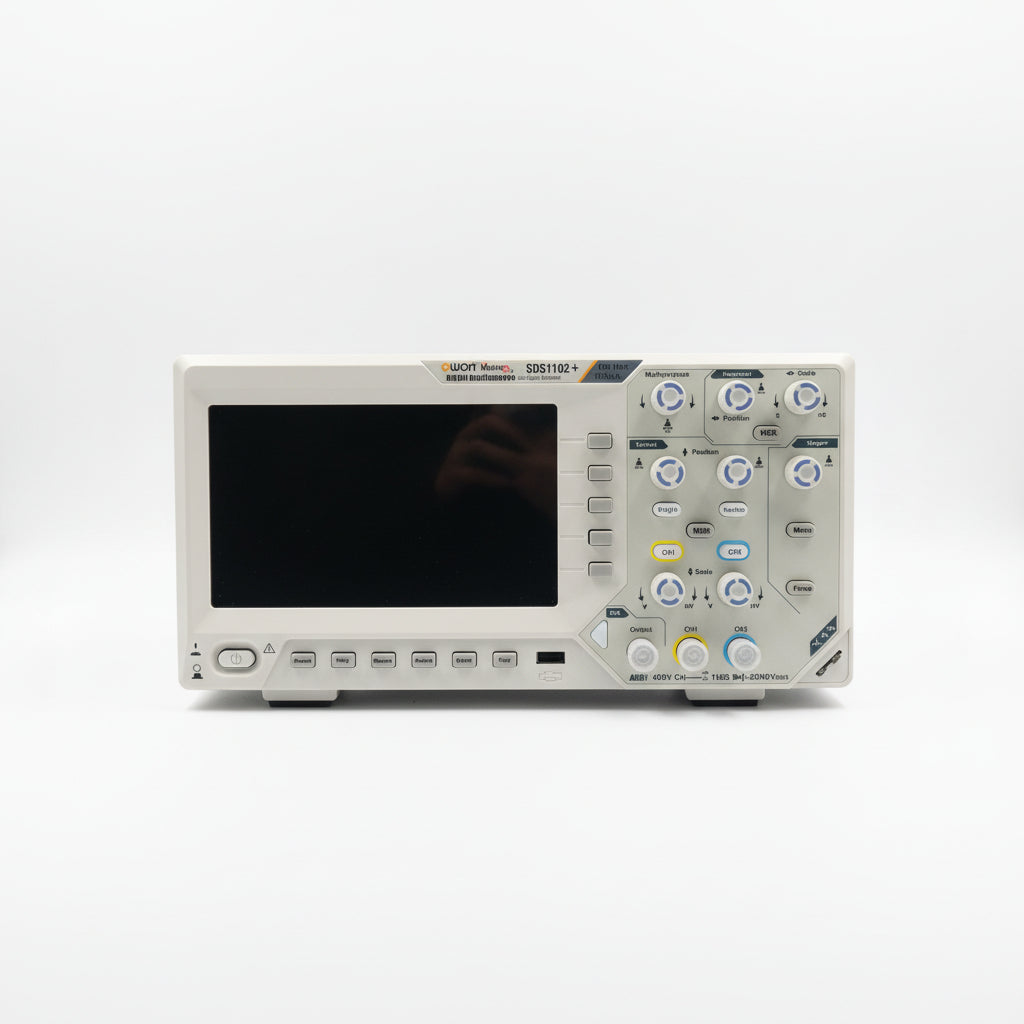

OWON SDS1102+ Digital Storage Oscilloscope with Function Generator (100 Mhz)

Rs. 21,199.00
Rs. 21,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption



The Owon SDS1102+ is a digital oscilloscope equipped with a function generator, offering advanced capabilities for various electronic testing and measurement needs.

Bandwidth: 100MHz

Sampling Rate: 1GSa/s

Record Length: 10K

Automatic Measurements: 30 types

Connectivity: USB, SCPI, LabVIEW support

Display: 7" 800 x 480 pixels LCD

Weight: Approximately 1.10 kg

Dimensions: 301 x 152 x 70 mm (W x H x D)



Performance Specifications

Model SDS1102+
Bandwidth 100MHz
Channel 2
Sample Rate 1GSa/s
Acquisition Mode Normal, Peak Detect, and Average
Input Coupling DC, AC, and Ground
Input Impedance 1MΩ±2%, in parallel with 20 pF±5 pF
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Record Length 10K
Horizontal Scale (s/div) 2 ns/div - 1000 s/div, step by 1 - 2 - 5
Vertical Sensitivity 20 mV/div - 5 V/div
Automatic Measurement Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area
Waveform Math +, -, ×, ÷, FFT
Waveform Storage 16 groups
Lissajou's Figure Bandwidth full bandwidth
Lissajou's Figure Phase Difference ±3 degrees
Trigger Type Edge, Video
Communication Interface USB host, USB device
Frequency Counter 6-digit

Waveform Generator Specifications

Standard Waveform sine, square, ramp, pulse
Arbitrary Waveform sinc, exponential rise, exponential fall, Gaussian, and others, more than 16 groups built-in waveform
Sine 0.1Hz - 10MHz
Ramp 0.1Hz - 1MHz
Square 0.1Hz - 2MHz
Pluse 0.1Hz - 1MHz
Arbitrary Waveform Amplitude (50Ω) 0.25Vpp - 2.5 Vpp
Channel 1
Waveform Length 8k
Vertical Resolution 14 bit
Load Impedance 50 Ω

Accessories

The accessories subject to final delivery may include:

  • Power Cord
  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
  • BNC Cable
