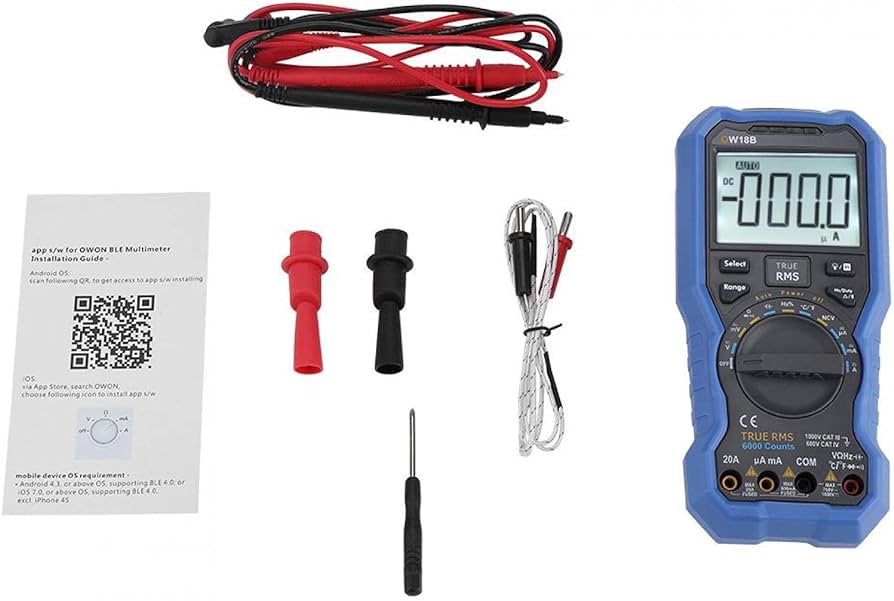

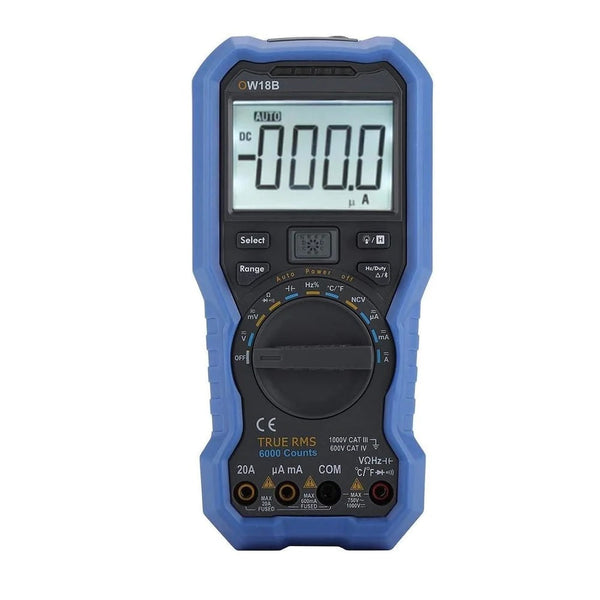

OWON OW18B 3-in-1 Smart Bluetooth Digital Multimeter
Rs. 3,499.00
Rs. 5,500.00
All Prices Incuding GST
No Hidden Charge
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk
- data-logger + multimeter + temperature meter
- BLE 4.0 module supports wireless data transmission
- 3 5/6 - digit full scale reading
- true RMS, and auto-scale function
- super- portability

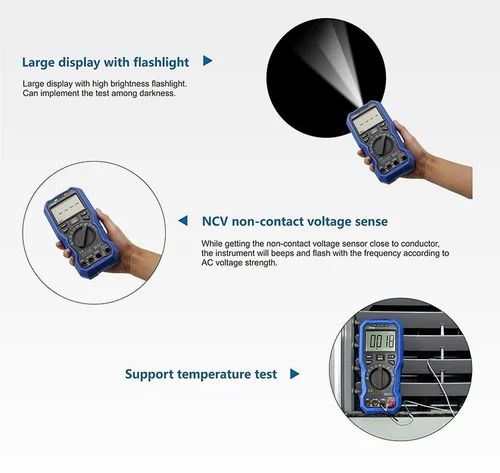

- flashlight function
- NCV (non-contact voltage) sensing supported
- smart voice-reading
- multi-device monitoring onto one display (via mobile app)
- via CHART mode, the change trend analysis accessible
- offline recording function (upto 7 days’ non-stop recording supported)
- multi-OS compatible: Android OS, iOS, and Windows OS*
| Measurement Range | Resolution | Accruacy | ||
| DC Voltage | 60.00mV / 600.0mV / 6.000V / 60.00V / 600.0V | 0.01mV | ±(0.5%+2-dig) | |
| 1000V | 1V | ±(0.8%+2-dig) | ||
| AC Voltage | 600.0mV / 6.000V / 60.00V / 600.0V | 1mV | ±(0.8%+2-dig) | |
| 750V | 1V | ±(1%+3-dig) | ||
| μA | 60.00uA / 600.0μA | 0.01μA | ||
| DC Current | mA | 60.00mA / 600.0mA | 0.01mA | ±(0.8%+2-dig) |
| A | 20.00A | 0.01A | ±(1.2%+3-dig) | |
| μA | 60.00uA / 600.0μA | 0.01μA | ||
| AC Current | mA | 60.00mA / 600.0mA | 0.01mA | ±(1%+3-dig) |
| A | 20.00A | 0.01A | ±(1.5%+3-dig) | |
| Resistance | 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ | 0.1Ω | ±(0.8%+2-dig) | |
| 60.00MΩ | 0.01MΩ | ±(2%+3-dig | ||
| Capacitance | 60.00nF / 600.0nF / 6.000μF / 60.00μF | 0.01nF | ±(2.5%+3-dig) | |
| 600.0μF / 6.000mF / 60.00mF | 0.1μF | ±(3%+5-dig) | ||
|
Frequency
|
9.999Hz / 99,99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 99.9kHz / 9.999MHz |
0.001Hz | ±(0.8%+2-dig) | |
| Duty Ratio | 0.1% - 99.9% (typical value: Vrms=1V, f=1kHz) | 0.10% | ±(1.2%+3-dig) | |
| 0.1% - 9 9.9% (≥1kHz) | ±(2.5%+3-dig) | |||
| Temperature | (-50℃) - (+400℃) | 1℃ | ±(2.5%+3-dig) | |
| (-58°F) - (+752°F) | 1℉ | ±(4.5%+5-dig) | ||
| Display | 5999 | |||
| Frequency | (40 - 1000) Hz | |||
| Shift Rate | 3 times/s |
