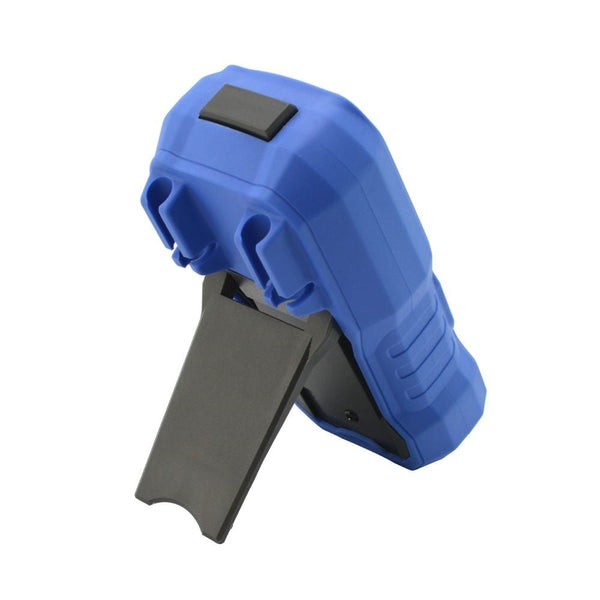

• OWON OW16A Handheld Digital Multimeter
  • OWON OW16A Handheld Digital Multimeter – view 2
1 2

OWON OW16A Handheld Digital Multimeter

Rs. 2,249.00
Rs. 2,249.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption
  • 3 5/6 bit resolution
  • Multimeter + Temperature Meter
  • True RMS
  • NCV (non-contact voltage) sensing supported
Technical Specifications:



    Measurement Range  Resolution  Accruacy
  DC Voltage 6.000V / 600.0V / 60.00V  0.01mV ±(0.5%+2-dig)
    1000V 1V ±(0.8%+2-dig)
  AC Voltage 6.000V / 60.00V / 600.0V 0.1mV ±(0.8%+3-dig)
    750V 1V  ±(1%+3-dig)
  μA 60.00uA / 600.0μA 0.01μA
DC Current mA 60.00mA / 600.0mA 0.01mA ±(0.8%+2-dig)
  A 10.00A 0.01A ±(1.2%+3-dig)
  μA 60.00uA / 600.0μA 0.01μA
AC Current mA 60.00mA / 600.0mA 0.01mA ±(1%+3-dig)
  A 10.00A 0.01A ±(1.5%+3-dig)
  Resistance 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ 0.1Ω ±(0.8%+2-dig)
    60.00MΩ 0.01MΩ ±(2%+3-dig
  Capacitance 60.00nF / 600.0nF / 6.000μF / 60.00μF 0.01nF ±(2.5%+3-dig)
    600.0μF / 6.000mF / 60.00mF 0.1μF ±(3%+5-dig)
  Frequency

9.999Hz / 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz

/ 99.9kHz / 9.999MHz

 0.001Hz ±(0.8%+2-dig)
  Duty Ratio 0.1% - 99.9% (typical value: Vrms=1V, f=1kHz) 0.10% ±(1.2%+3-dig)
    0.1% - 9 9.9% (≥1kHz)   ±(2.5%+3-dig)
  Temperature (-50℃) - (+400℃) 1℃ ±(2.5%+3-dig)
    (-58°F) - (+752°F) 1℉ ±(4.5%+5-dig)
  Display 5999
  Frequency (40 - 1000) Hz
  Shift Rate 3 times/s
