OWON DGE2035 Arbitrary Waveform Generator 35MHz
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item

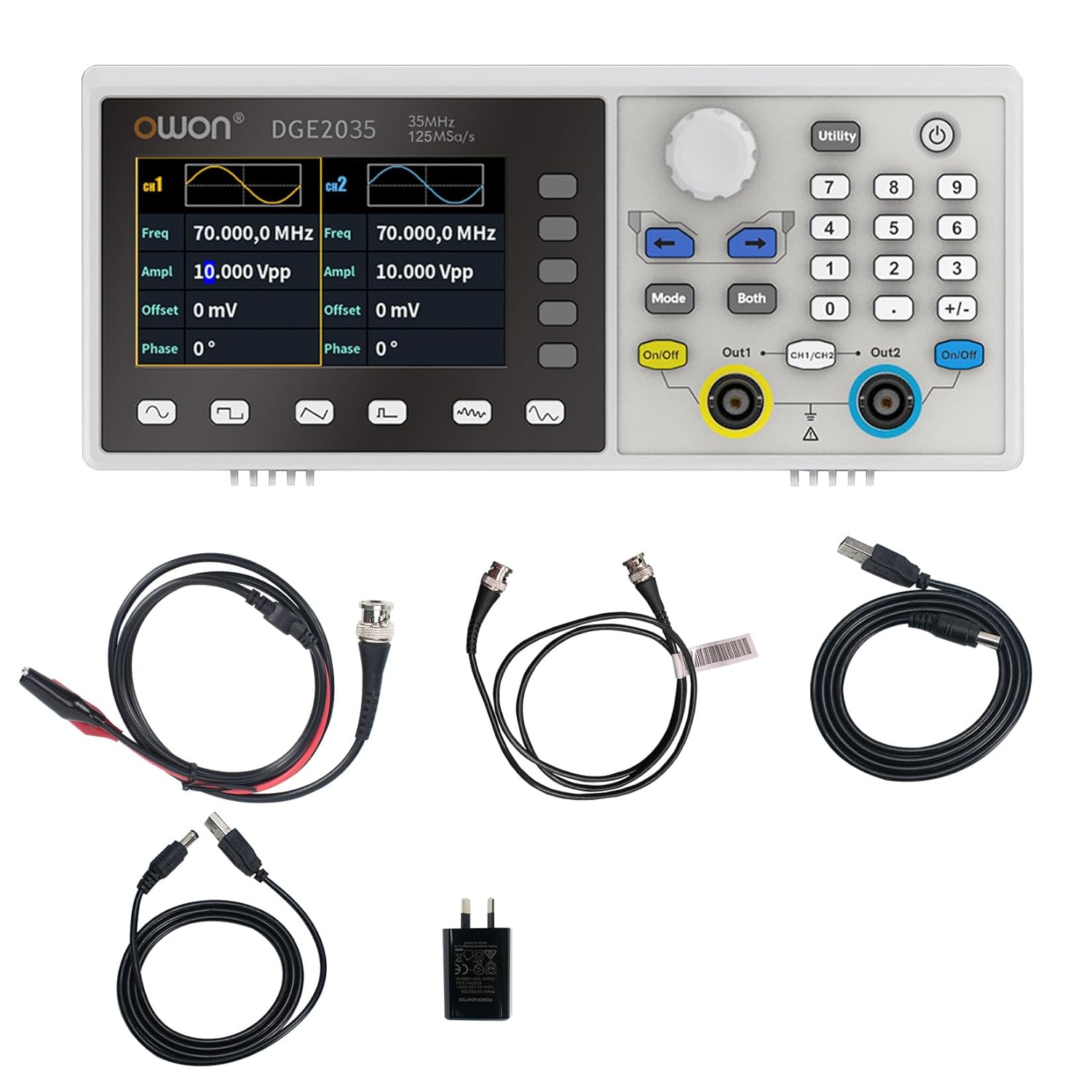

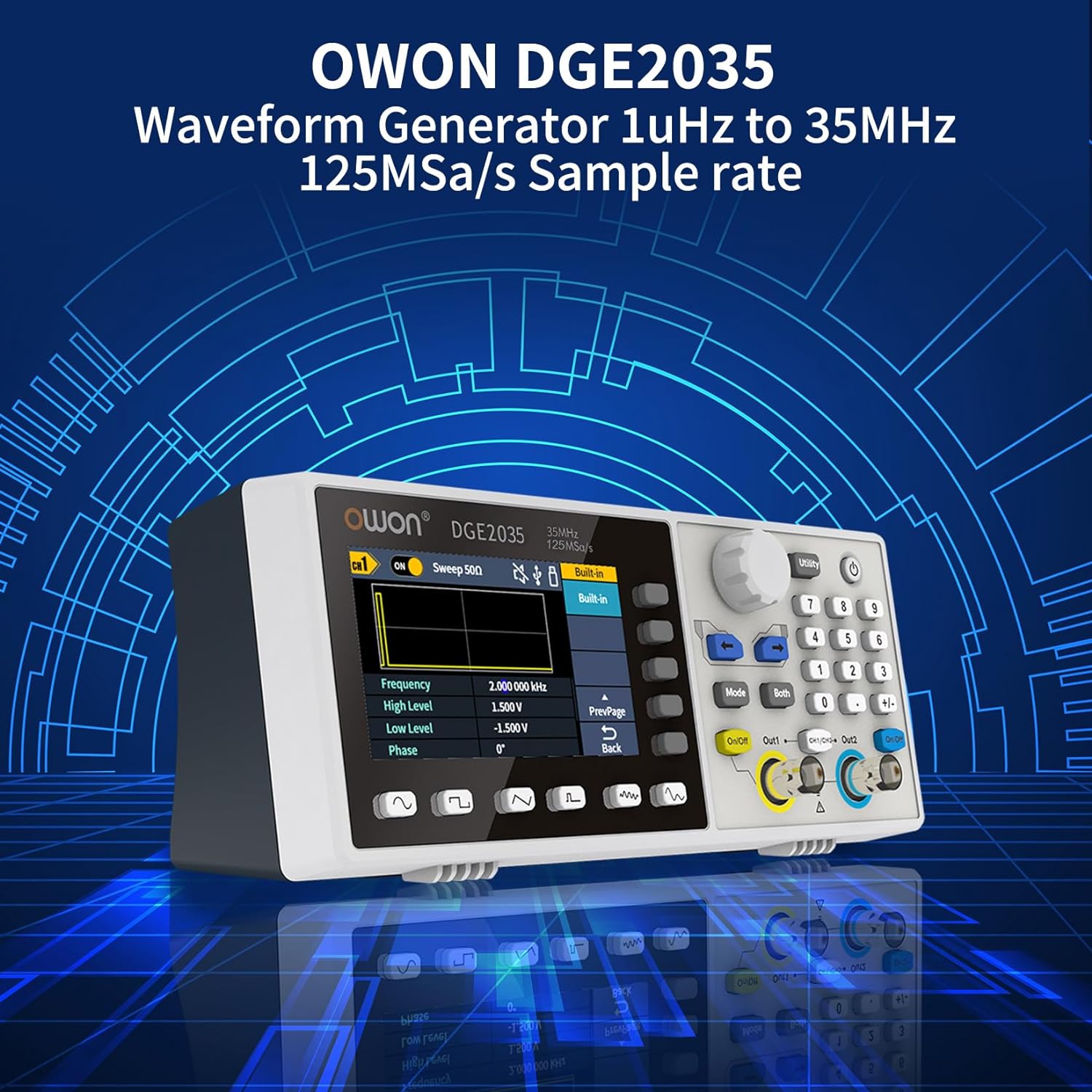

The OWON DGE2035 35MHz Arbitrary Waveform Generator brings dual-channel signal generation to a compact electronics workbench. With five standard waveform types, 150 built-in arbitrary waveforms and multiple modulation modes, it gives you a versatile signal source for circuit development, troubleshooting and practical electronics learning.
Set up a sine wave for a circuit test, explore pulse response or experiment with modulated signals. Its palm-size bench-top design and 3.6-inch LCD help keep essential signal-generation controls close at hand without taking over your workspace.
Key Features
- Two output channels: A dual-channel platform for electronics testing and experimentation.
- Up to 35MHz sine-wave output: The DGE2035 supports sine signals from 1μHz to 35MHz, with 1μHz frequency resolution.
- 500MSa/s sampling rate and 14-bit vertical resolution: Core waveform-generation specifications for a wide range of bench applications.
- Five standard waveforms: Sine, square, pulse, ramp and noise.
- 150 built-in arbitrary waveforms: Includes exponential rise, exponential fall, sin(x)/x and step waveforms.
- Flexible waveform length: Arbitrary waveform lengths from 2 points to 8K points.

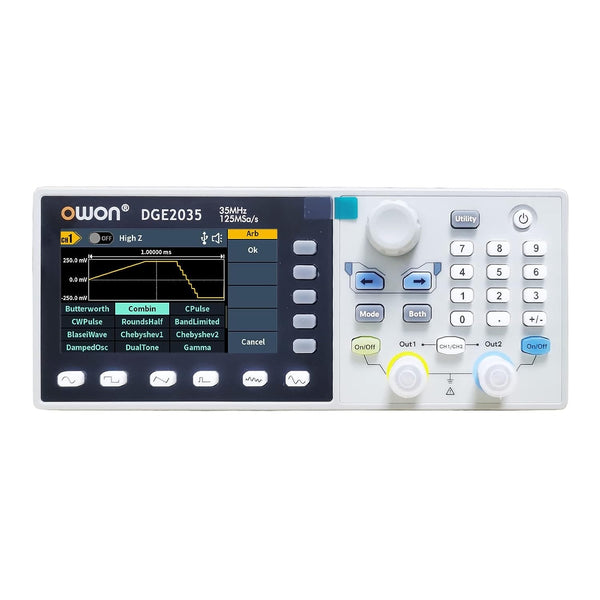

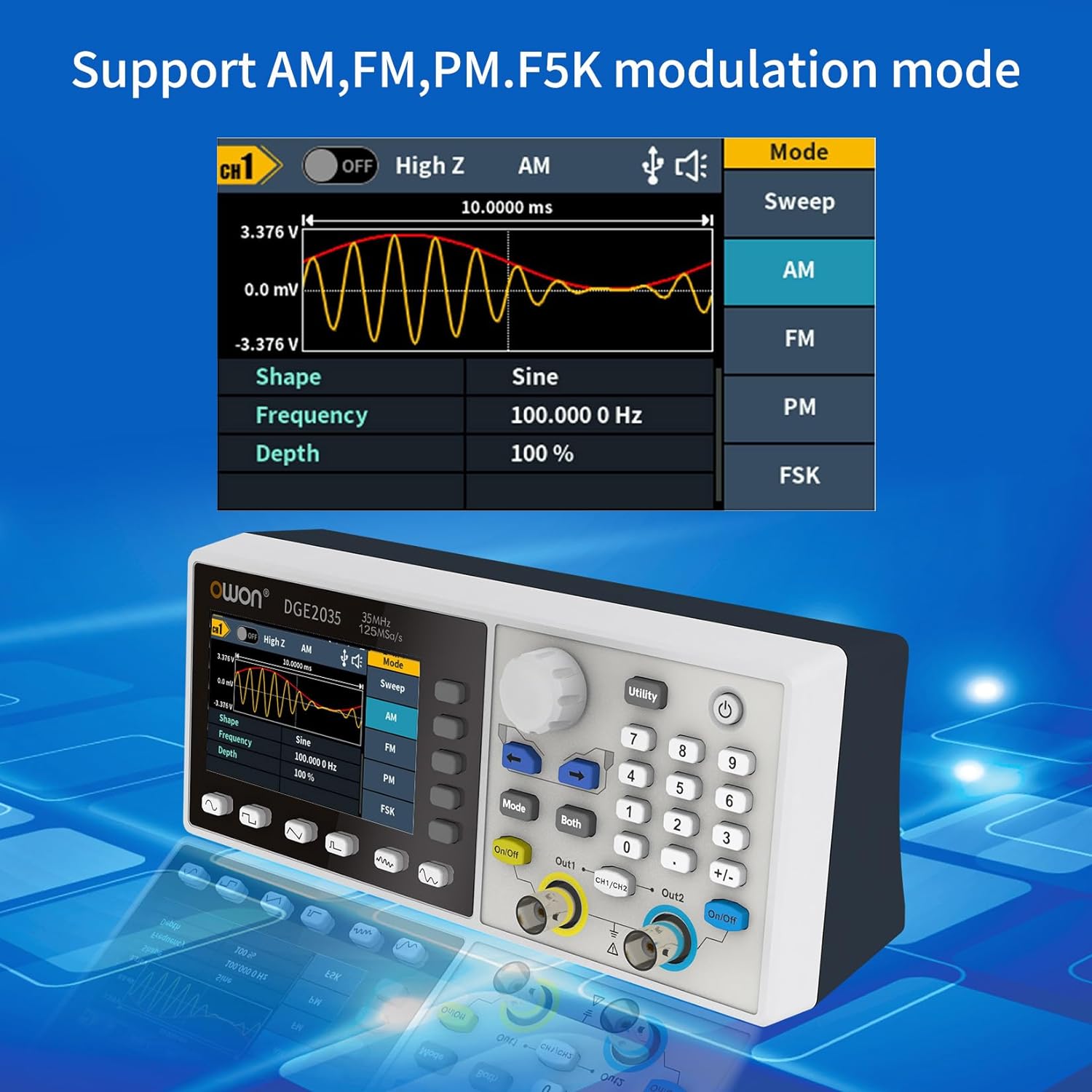

- Modulation and test modes: AM, FM, PM, FSK, sweep and burst.

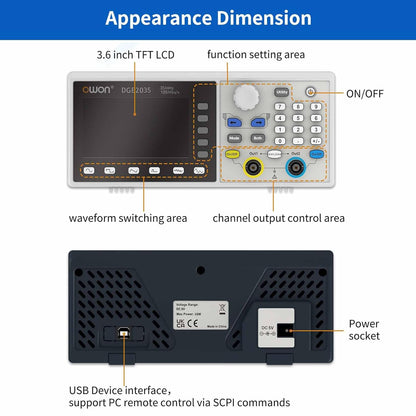

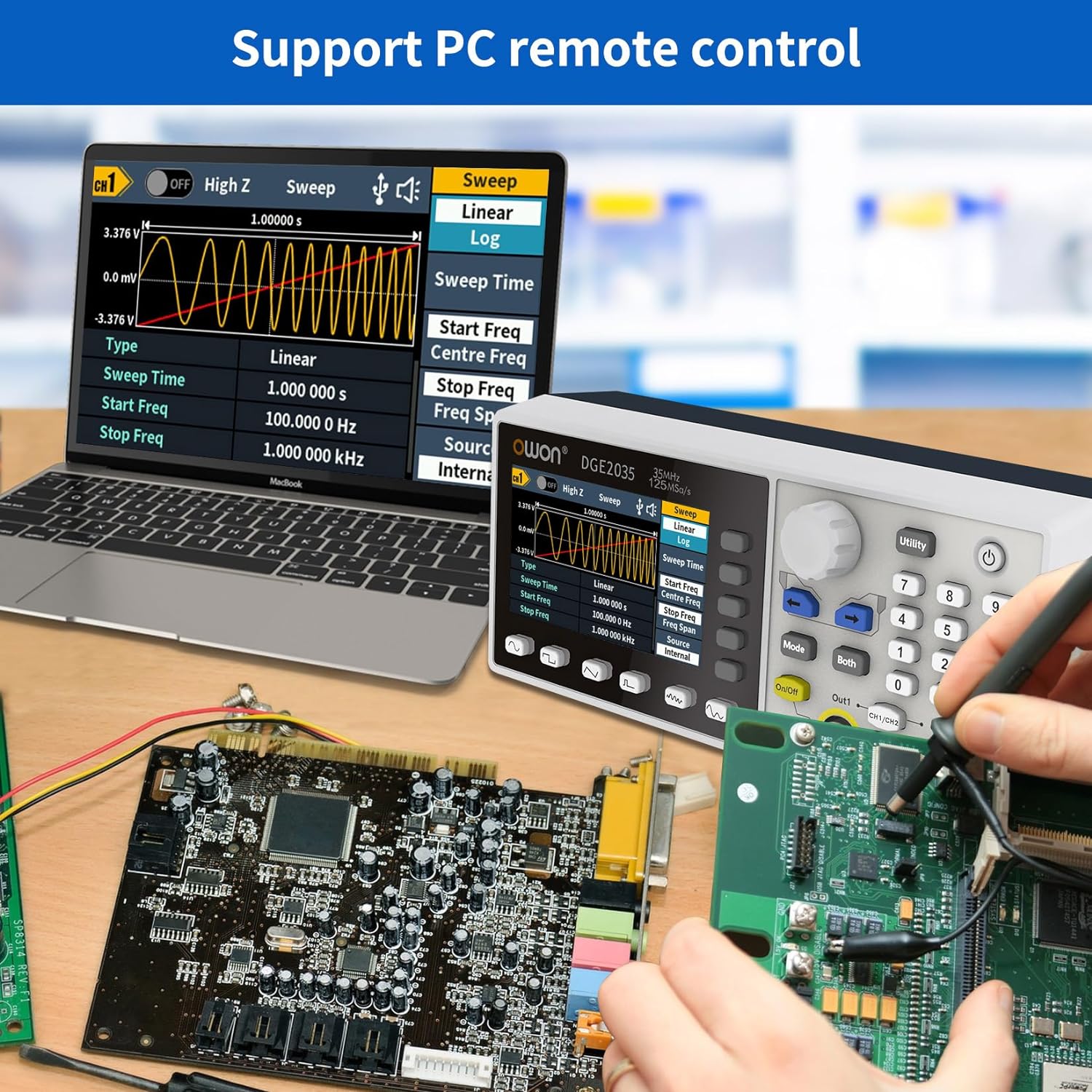

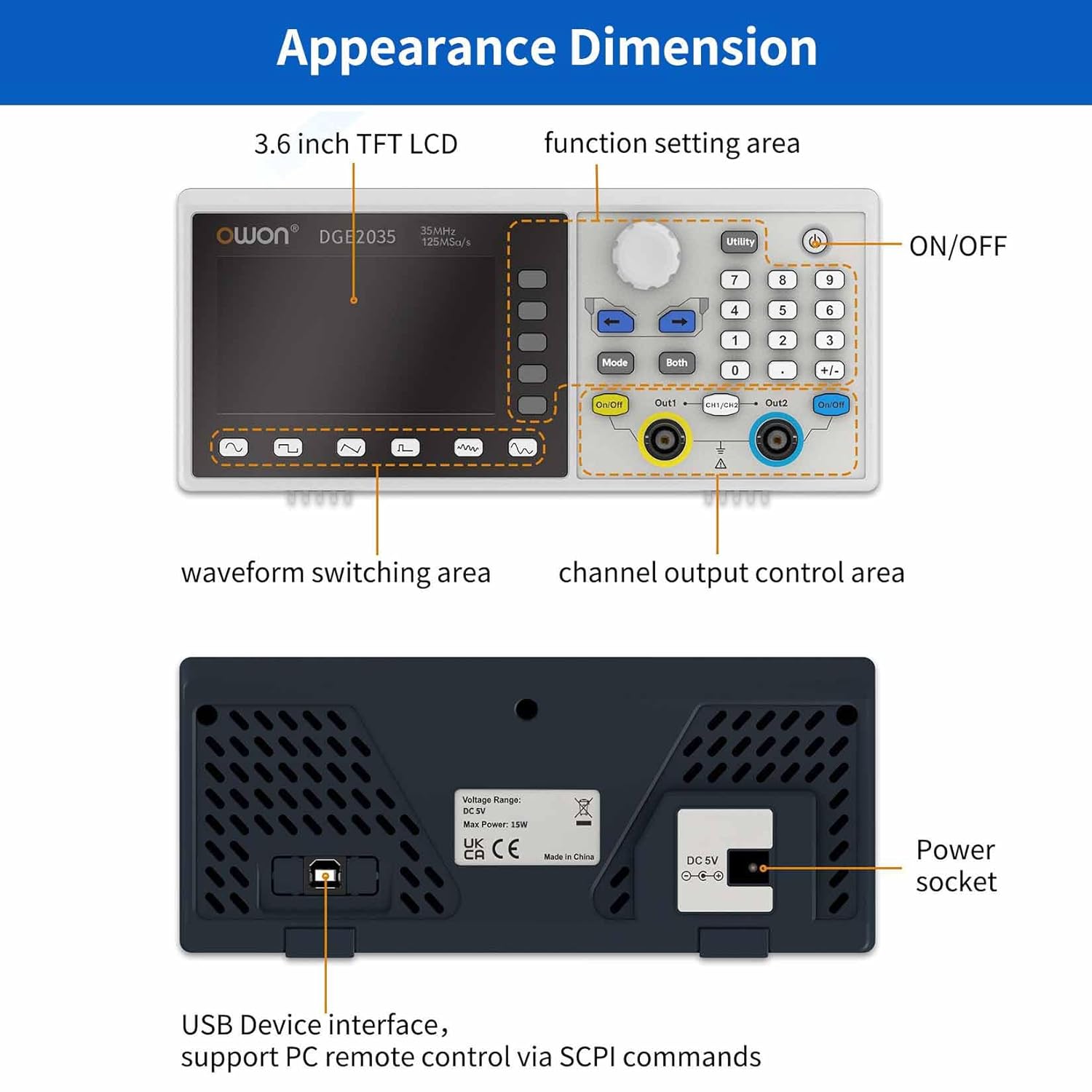

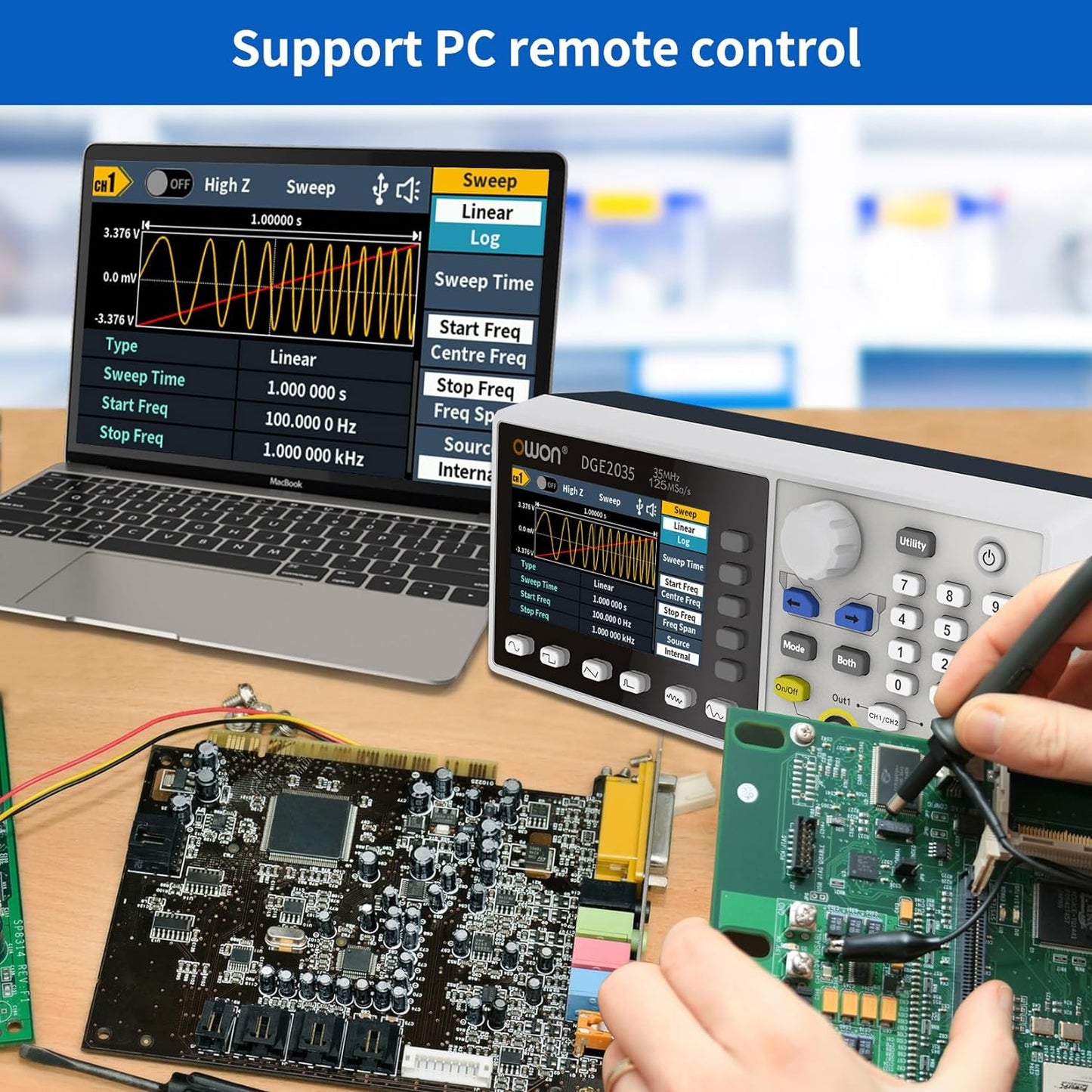

- Control support: SCPI and LabVIEW support, with a USB Host communication interface listed in the specification sheet.
Technical Specifications
| Specification | OWON DGE2035 |
|---|---|
| Output channels | 2 |
| Sine-wave frequency | 1μHz–35MHz |
| Square-wave frequency | 1μHz–15MHz |
| Pulse frequency | 1μHz–15MHz |
| Ramp frequency | 1μHz–1MHz |
| Arbitrary waveform frequency | 1μHz–10MHz |
| Noise bandwidth | 20MHz (-3dB, typical) |
| Frequency resolution | 1μHz |
| Sampling rate | 500MSa/s |
| Vertical resolution | 14 bits |
| Arbitrary waveform length | 2 points–8K points |
| Square-wave rise/fall time | <15ns |
| Square-wave duty cycle | 50.0% fixed |
| Minimum pulse width | 24ns |
| Ramp symmetry | 0%–100% |
| Amplitude into 50Ω load | 1mVpp–10Vpp at frequencies ≤10MHz; the sheet lists 1mVpp–5Vpp for the higher-frequency range. DGE2035 waveform frequency limits apply. |
| DC offset range | ±(10Vpk − amplitude Vpp/2) into high impedance; ±(5Vpk − amplitude Vpp/2) into 50Ω |
| DC offset resolution | 1mV or 4 digits |
| Load impedance | 50Ω, typical |
| Sweep trigger source | Internal or external |
| Display | 3.6-inch LCD, 480 × 260 pixels |
| Dimensions (W × H × D) | 200 × 74.5 × 68.5mm |
| Device weight | 0.45kg |
Suitable Applications
A practical signal source for electronics prototyping, circuit response testing, repair benches, educational laboratories and maker projects. Use it to supply test waveforms to a circuit; an oscilloscope or other suitable measuring instrument is needed to observe the resulting signals.
Specification Sheet
Download the OWON DGE2035 / DGE2070 specification sheet (PDF)
The linked sheet covers both models. This listing is for the DGE2035 35MHz model, not the DGE2070 70MHz model. Maximum frequency depends on the selected waveform.
