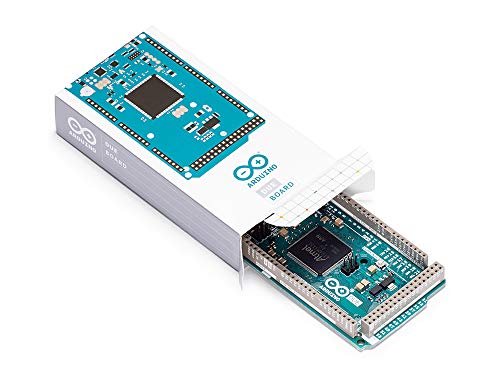

Original Arduino Due Board

Rs. 3,999.00 Rs. 5,000.00
A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock. CPU clock at 84Mhz 96KBytes of SRAM 512KBytes of flash memory for code A DMA controller, that can relieve the CPU from doing memory intensive tasks. -- The Arduino Due is a microcontroller board-based Original Arduino...

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  1. A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
  2. CPU clock at 84Mhz
  3. 96KBytes of SRAM
  4. 512KBytes of flash memory for code
  5. A DMA controller, that can relieve the CPU from doing memory intensive tasks.

--

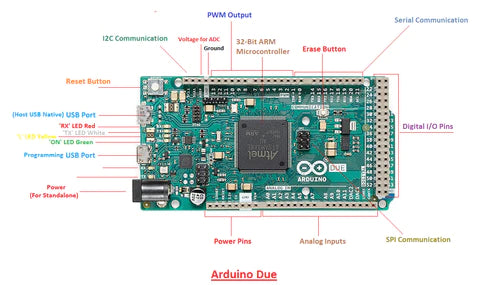

The Arduino Due is a microcontroller board-based Original Arduino Due Board on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Warning: Unlike most Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.

The Arduino Due board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with an AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

The Due follows the 1.0 pinout:

  • TWI: SDA and SCL pins that are near to the AREF pin.
  • IOREF: allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
  • An unconnected pin, reserved for future use.
Model Type

Arduino Due

Microcontroller Chip

AT91SAM3X8E

Input Voltage (limit)

6-16V

Input Voltage(Recommended)

7-12V

Analog I/O Pins

12

Digital I/O Pins

54 (of which 12 provide PWM output)

Analog Output Pins

2 (DAC)

Clock Speed

84 MHz

Flash Memory

512 KB

SRAM

96

DC Current for 3.3V Pin (mA)

800

DC Current per I/O Pin (mA)

130

On Board LEDs

Yes

Operating Temperature (°C)

-20 to 80

Weight (gm)

36

Length (mm)

102

Width (mm)

54

Height (mm)

25
