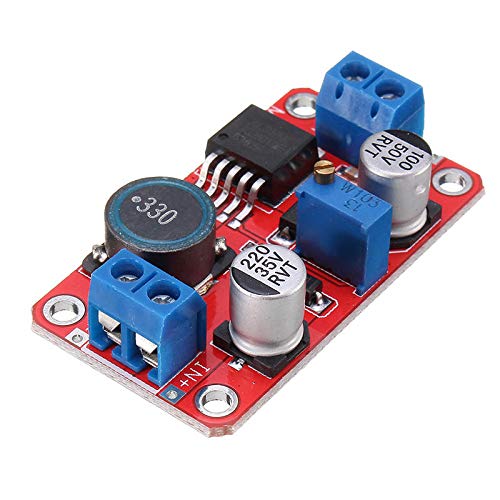

XL6019 5A DC-DC Adjustable Boost Power Module High Power Step Up Board
Subcribe to back in stock notification
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Output power on/off switch Two-row multiple pin outputs, easy to use and connect Red LED illuminates when input DC power is supplied and output is turned on
--
Conventional constant voltage output topology BOOST fully integrated solutions, integrated MOSFET, fewer external components, lower system cost
Feature:
1. With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability.
2. Wide input voltage range, the input voltage up to 35V.
3. Adjustable output voltage, maximum support 40V.
4. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability.
5. System conversion efficiency can achieve 90% above, convenient thermal design.
6. TO263-5 l standard packaging, suitable for booster application within 30W.
Specification:
Name: XL6019 Boost module
Size: 50 x 28 x 13mm
Color: Red
Weight: 20g
