Mobile Phone Vibrator Motor (Coin Vibrate Motor)

Rs. 49.00 Rs. 80.00
  Rated voltage: 3.0VDC Thickness : 2.5mm Rated load: eccentric hammer Rated speed: 12000+/-2500RPM Rated current: 70mA Max Low noise level enables feedback without unwanted distractions Rotates both CW and CCW for ease of use and installation -- This is a tiny round coin size vibration motor. Use it to...

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441



  • Rated voltage: 3.0VDC
  • Thickness : 2.5mm
    • Rated load: eccentric hammer
    • Rated speed: 12000+/-2500RPM
    • Rated current: 70mA Max
    • Low noise level enables feedback without unwanted distractions
    • Rotates both CW and CCW for ease of use and installation


    --

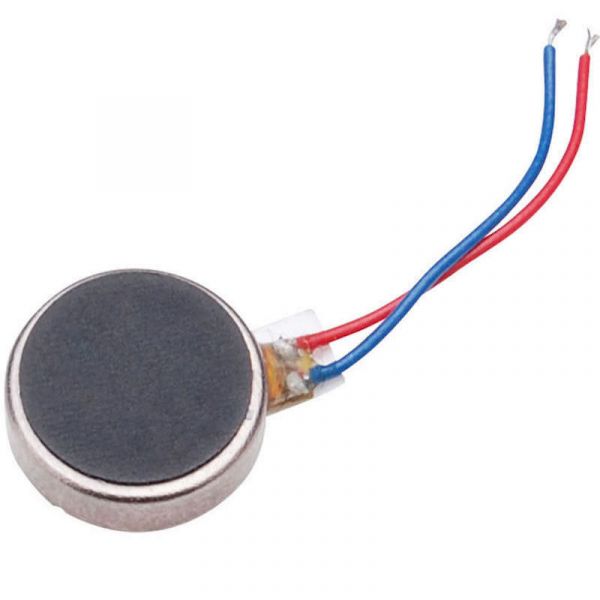

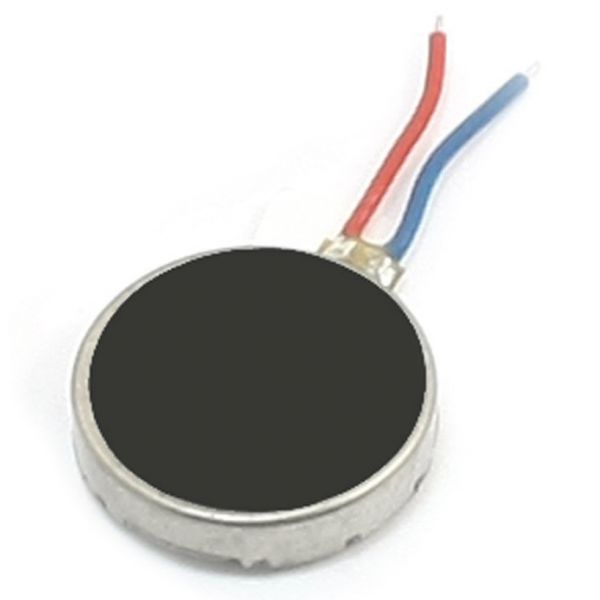

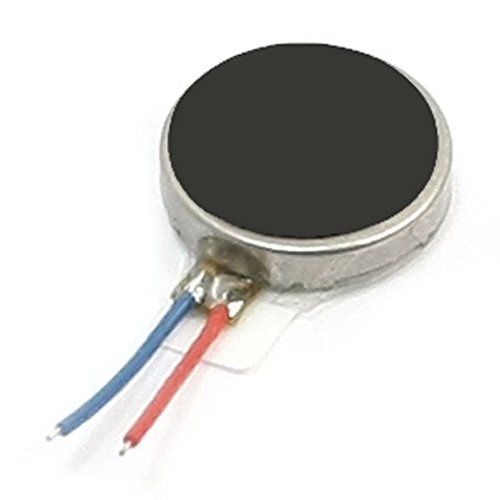

    This is a tiny round coin size vibration motor. Use it to provide vibrational alerts. It comes with a double sided tape on the bottom side which can be used to attach this motor to any flat surface. When powered, the vibration motor causes the attached surface to vibrate. This motor works with an input voltage as low as 2.5V and at higher voltages it vibrates like crazy! It has wire leads coming out from its body which can be used to solder the motor to a PCB.

    Features


      • Rated voltage: 3.0VDC

      • Maximum Working Voltage Limits: 2.5-4.0VDC

      • Rated load: eccentric hammer

      • Rated speed: 12000+/-2500RPM

      • Rated current: 70mA Max

      • Stall current: 120mA Max

      • Insulation resistance: 10M ohms Min

      • Terminal resistance: 30 ohms

      • Small size makes it easy to mount in or on your project

      • Low noise level enables feedback without unwanted distractions

      • Rotates both CW and CCW for ease of use and installation
