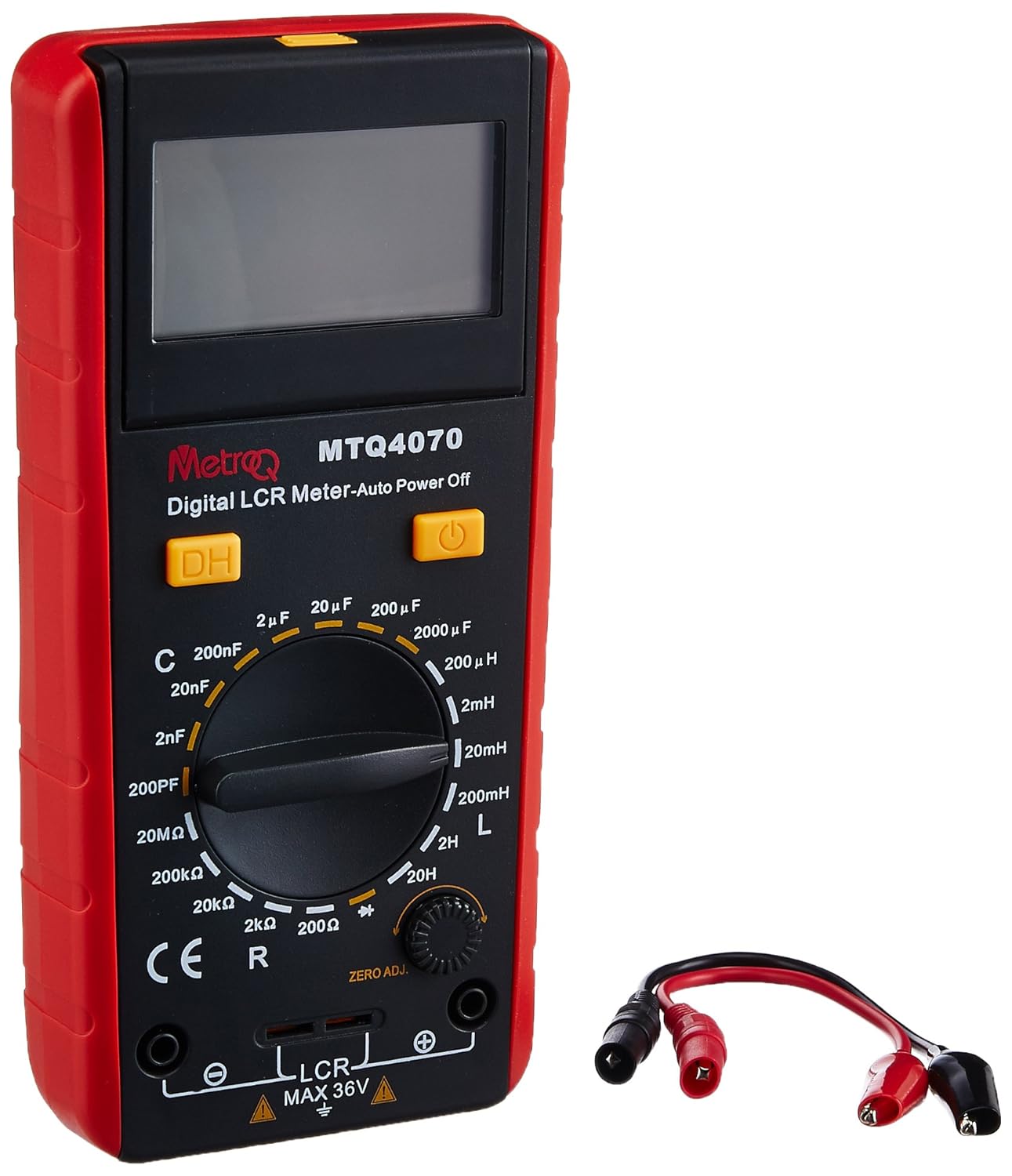

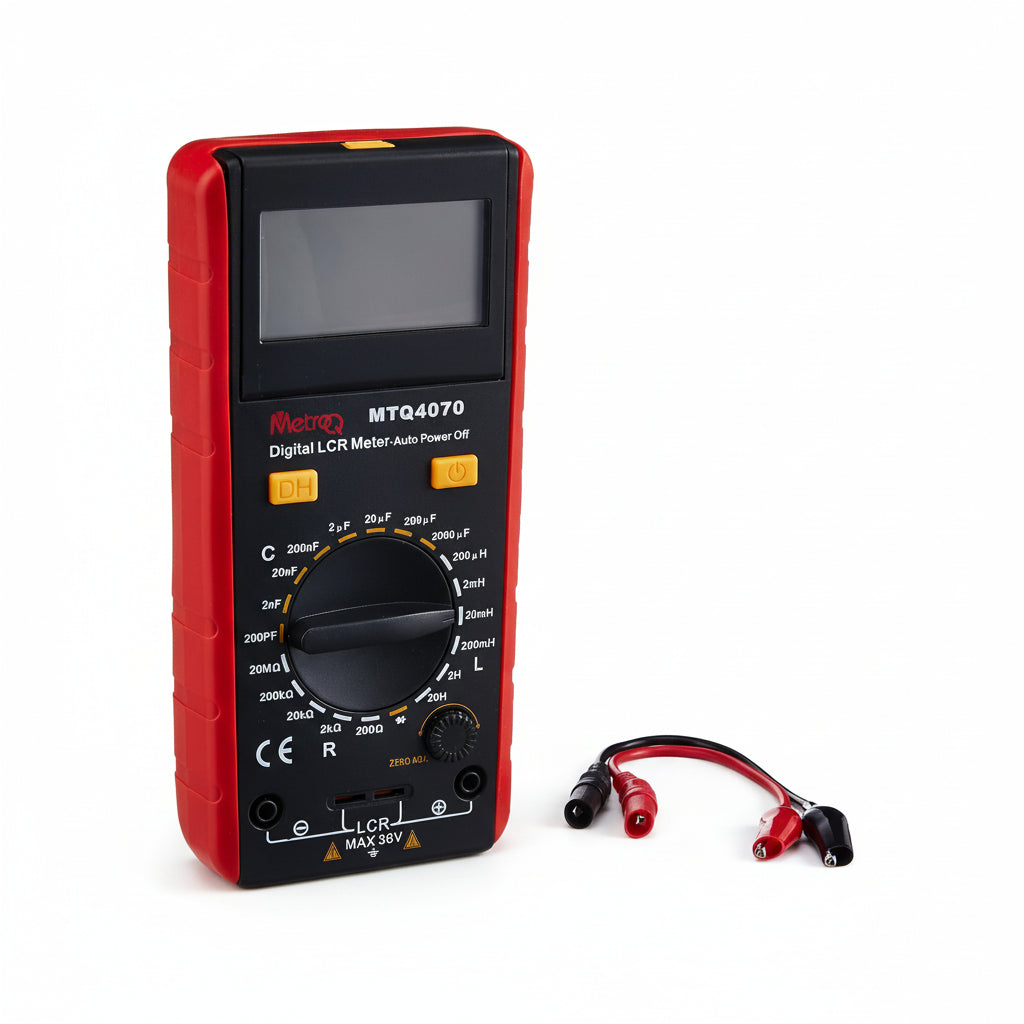

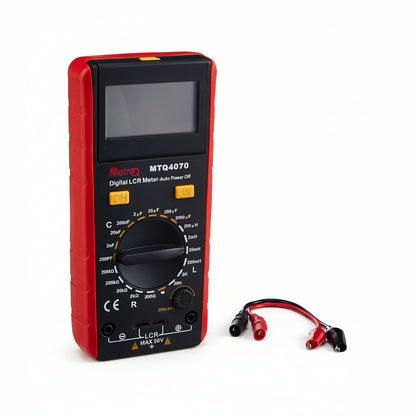

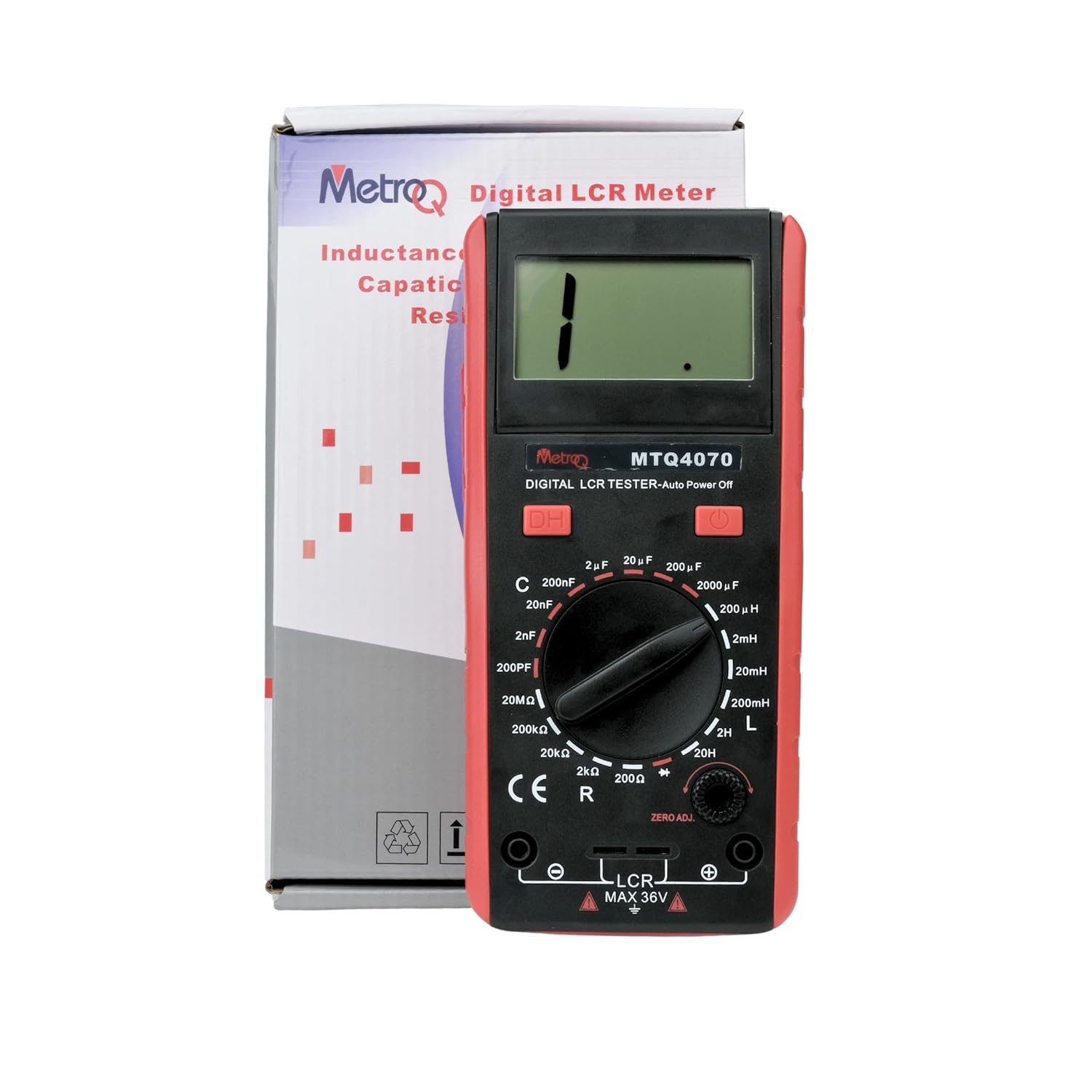

MetroQ MTQ-4070 LCR Meter
MetroQ MTQ-4070 LCR Meter
Regular price
Rs. 2,549.00
Regular price
Sale price
Rs. 2,549.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
LCR Meter, Hand Held 3.5 Dgt., Inductance, Capacitor, Resistance
Features
- Basic Function: 2 mH to 20 H
- Accuracy: ±(5.0% +15)
- Resolution: 10 mH
- Basic Fuction: 1000uF
- Accuracy: ±(5.0% +25)
- Resolution: 1 uF
- Basic Fuction: 20 MΩ
- Accuracy: ±(1.0% +15)
- Resolution: 10 KΩ
A LCR meter (Inductance(L), Capacitance (C), and Resistance(R)) is a piece of electronic test equipment used to measure the inductance, capacitance and, resistance of a component. In the usual versions of this instrument these quantities are not measured directly, but determined from a measurement of impedance.
| Specification | |
|---|---|
| Basic Function | Range |
| Display | 31/2 Digit |
| MAX Display | 1999 |
| DH | Yes |
| Over Load Protection | Yes |
| Auto Power Off | Yes |
| Battery Power | Battery Power is insufficient |
| Shock protection | Yes |
| Capaticance | 200p/2n/20n/200n/2u/20u/200uF±2.5%±5,2000uF:±5%±5 |
| Inductace | 200uH±3.0% ±5,2m/20m/200m/2H± 2.5%±5,20H±5%±5 |
| Resistance | 200/2k/20k/200kΩ ±0.8%±5,20MΩ±2%±5 |
| Power Supply | 6F22 or NEDA 9V×1 |

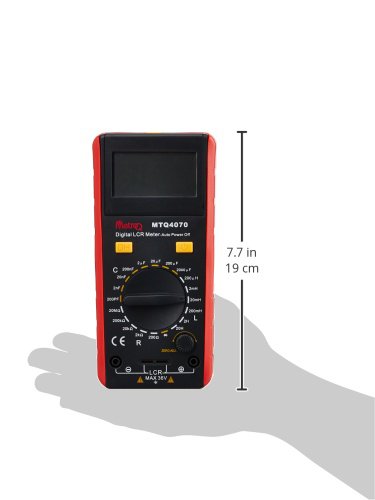

| Size | 190×91×40 mm |
| Weight | about 350g (include battery) |
