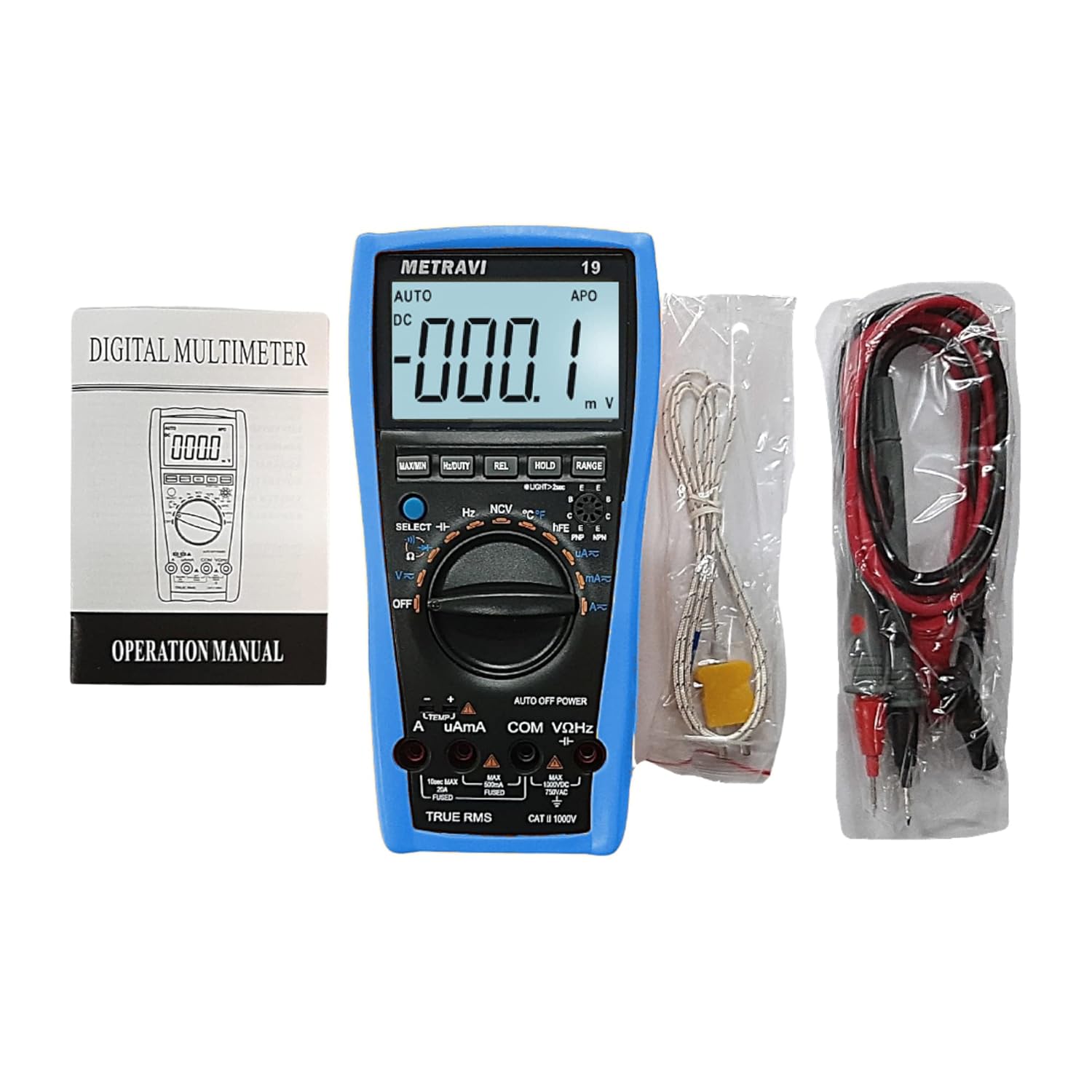

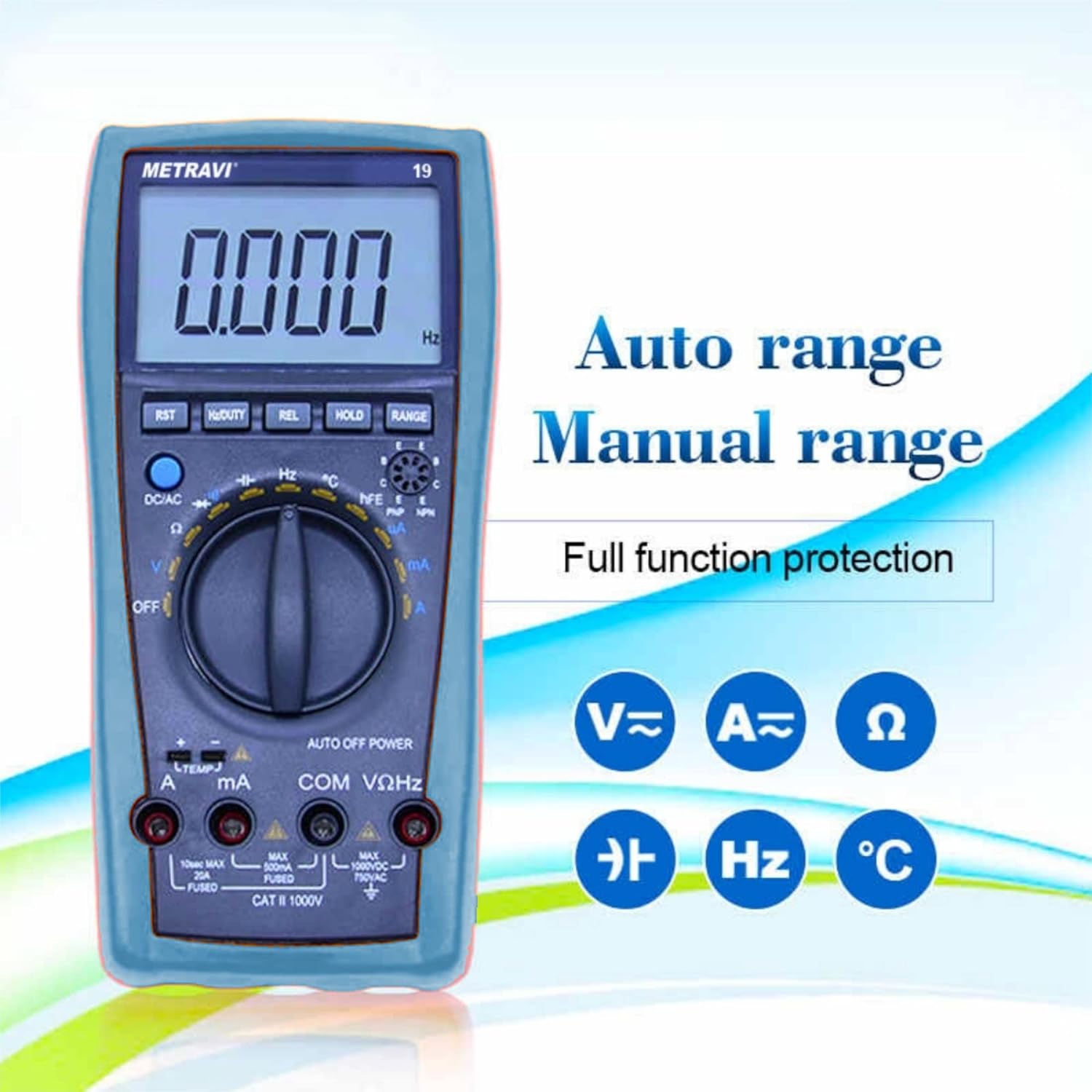

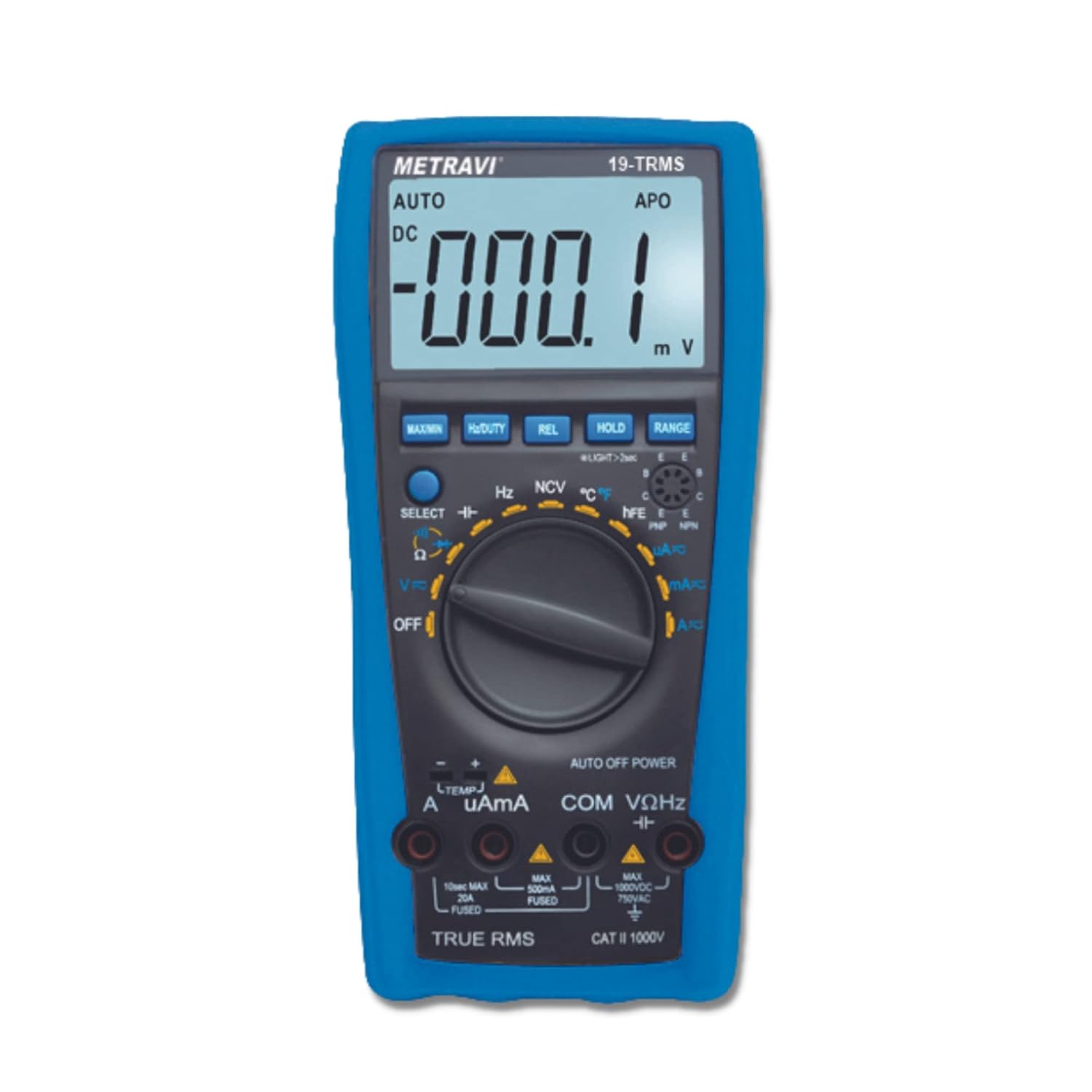

Metravi 19 T-RMS Digital Multimeter
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
3-3/4 Digits 3999 Count, LCD, TRMS, NCV, Auto-ranging, Relative, Data Hold, AC(750V)/DC(1000V) Voltage, AC/DC Current Up to 20A, Resistance, Capacitance, 30MHz Frequency, Duty Cycle, Temperature, Diode, Transistor and Continuity Test, Auto Power Off, CAT-II 1000V.

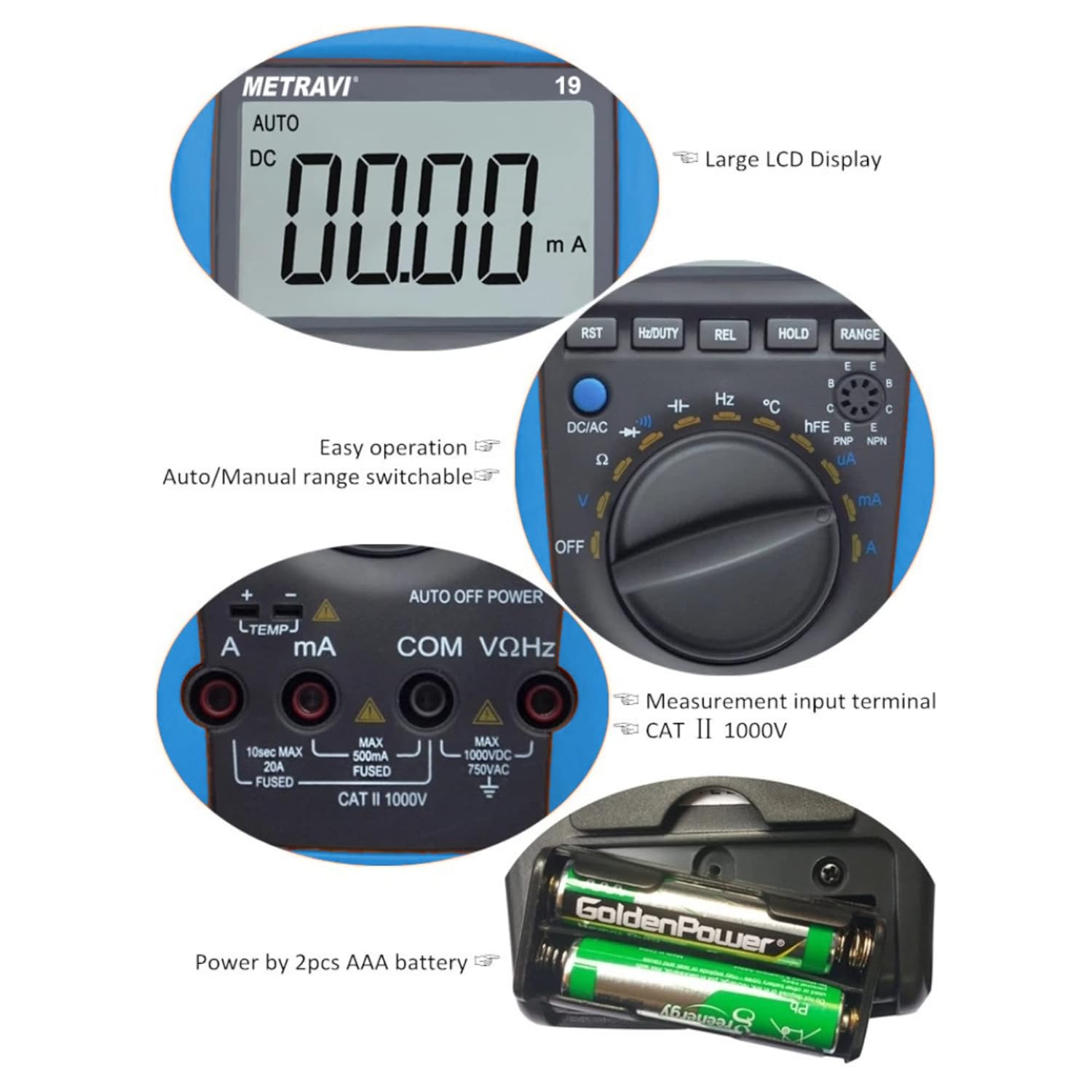

Features:
3-3/4 Digits 3999 Counts Jumbo LCD Display• T-RMS Auto-ranging
• Non Contact Voltage Detector
• Auto Power Off
• AC Bandwidth 40 – 400Hz
• Transistor Test
• Data Hold, MAX-MIN Record
• DC Voltage: 0 – 400mV/4V/40V/400V/1000V
• Accuracy: ±0.5%
• AC Voltage (T-RMS): 0 – 400mV/4V/40V/400V/750V
• Accuracy: ±0.8%
• DC Current: 0 – 400uA/4000uA/40mA/400mA/4A/20A
• Accuracy: ±1.0%
• AC Current (T-RMS): 0 – 400uA/4000uA/40mA/400mA/4A/20A
• Accuracy: ±1.5%
• Resistance: 0 – 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
• Accuracy: ±0.8%
• Capacitance: 0 – 40nF/400nF/4uF/40uF/400uF/4mF/40mF
• Accuracy: ±2.5%
• Frequency: 0 – 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz
• Accuracy: ±0.5%
• Temperature: -40°C~1000°C
• Accuracy: ±1.0%
• Diode Test and Continuity Test
• Confirms to CE, EMC/LVD, IEC1010
Specifications:
Model
19
Brand
Metravi
Warranty
One year against manufacturing defects
Colour
Orange
Display
Backlit LCD
T-RMS
T-RMS
Auto Ranging
Auto Ranging
NCV Detection
Non-contact Voltage Detection
Auto Power Off
Auto Power-off
Transistor Test
Transistor Test
Data Hold
Data Hold
Max/Min/Avg/Dif
Max/Min
Diode & Continuity
Diode & Continuity test
Sampling Time
3 times/sec
Overload Indication
Overload Indication
Low Battery Indication
Low Battery Indication
Relative Measurement
Relative Measurement
Power Source
Battery Operated
Battery Type
Alkaline
Battery Size
AAA
No of Batteries
2
DC Voltage Range
0 – 400mV / 4V / 40V / 400V / 1000V
DC Voltage Accuracy
±0.5%
AC Voltage Range
0–400mV/4V/40V/400V/750V
AC Voltage Accuracy
±0.8%
DC Current Range
0–400uA/4000uA/40mA/400mA/4A/20A
DC Current Accuracy
±1%
AC Current Range
0–400uA/4000uA/40mA/400mA/4A/20A
AC Current Accuracy
±1.2%
Resistance Range
0 – 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Resistance Accuracy
±0.8%
Capacitance Range
0-40nF/400nF/4uF/40uF/400uF/4mF/40mF
Capacitance Accuracy
±2.5%
Frequency Range
0–10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz
Frequency Accuracy
±0.5%
Temperature Range
-40°C to 1000°C
Temperature Accuracy
±1.0%
DC Voltage Resolution
0.1mV to 1V
AC Voltage Resolution
0.1mV to 1V
DC Current Resolution
0.1μA to 10mA
AC Current Resolution
0.1uA to 10mA
Resistance Resolution
0.1Ω to 10kΩ
Capacitance Resolution
10pF to 10uF
Frequency Resolution
0.001Hz to 1kHz
Temperature Resolution
1˚C
Certifications
CE, EMC/LVD, IEC1010
