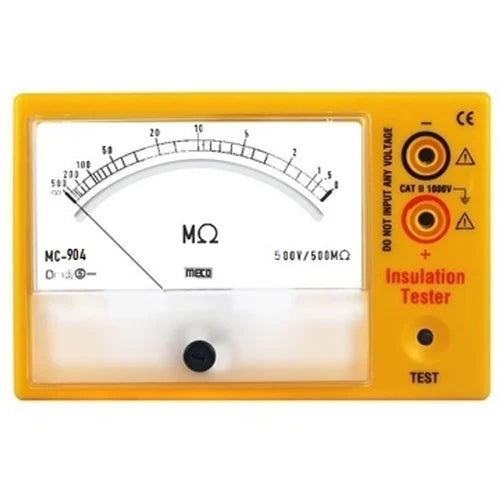

MECO MC 904 Analog Insulation Tester

• Brand-Meco
• Type-Insulation Tester
• Dimensions-144.5 x 95 x 72.5 mm
• Operating Temperature-0 - 50° C
• Range-0 - 500 M Ohms
• Test Voltage-500 V
• Power-9 V Battery
• Weight-0.439 Kg

Features:

• Testing insulation is essential to keeping wires and motors working properly.
• The analog insulation tester will measure the resistance in ohms and will display the results on a dial.
• It can also be used on the wire insulation, as well as cables and cords.
• The analog insulation tester is made up of a set of probes that are inserted into the insulation to test the insulation resistance.
• Single person push-button operation.
• High accuracy ±5% of indicated value in effective range.
• Meco insulation tester has a scale length is 80mm.
• Terminal voltage has >85% of rated voltage for insulation resistance.
• The measurement is from 10% to 100% of the insulation resistance range.
• ABS resin yellow case with polycarbonate meter front cover.
