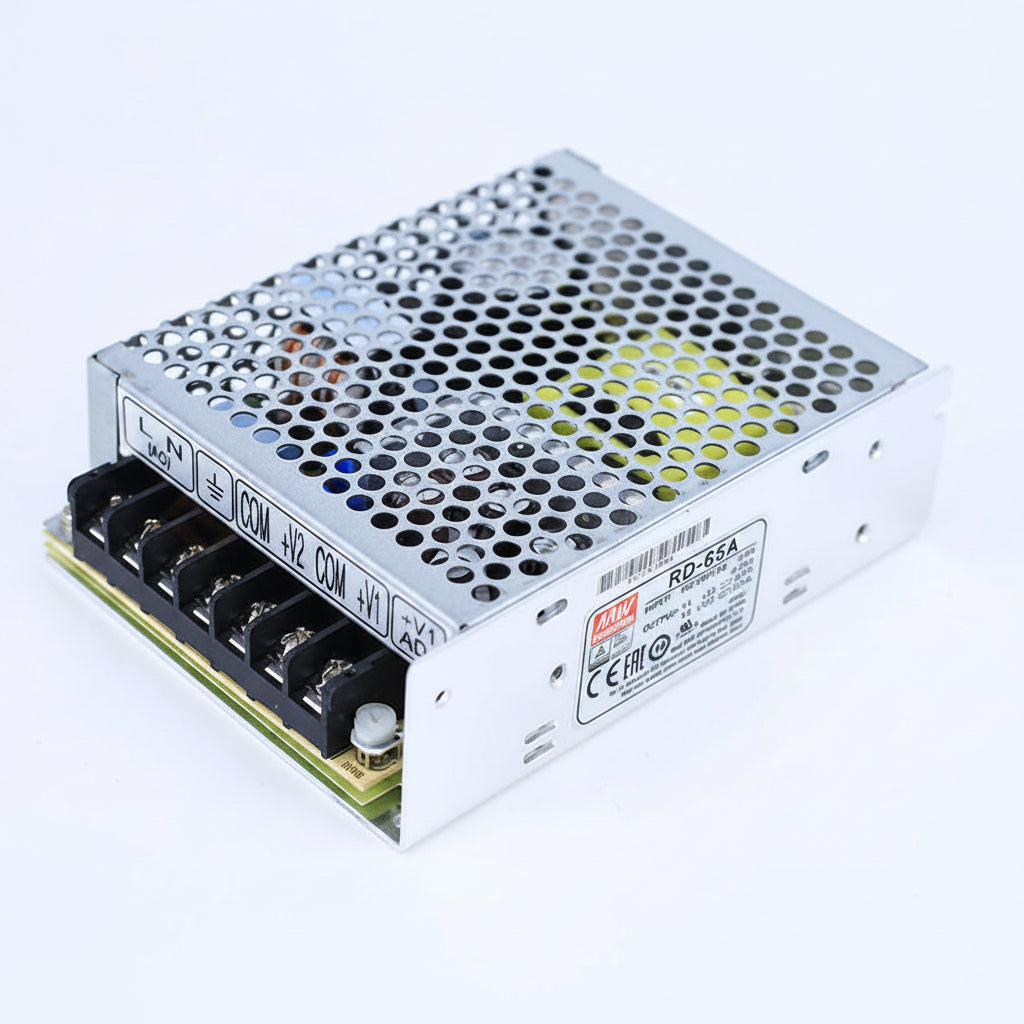

Mean Well RD-65A 5V + 12V 66W Dual Output SMPS
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
The Mean Well RD-65A is an enclosed dual-output AC-to-DC switching power supply delivering CH1: 5V DC at 6A; CH2: 12V DC at 3A, with a total rated output of 66W. It is a component power supply for integration into electronic equipment, digital circuits and automation projects where the load requirements match its ratings.
Key features
- Full-range AC input for flexible equipment integration.
- Fanless cooling by free-air convection.
- Protections against short circuit, overload and overvoltage.
- Compact metal enclosure for installation inside suitable equipment.
Technical specifications
| Manufacturer | Mean Well |
|---|---|
| Model | RD-65A |
| Output configuration | Dual output |
| Rated output | CH1: 5V DC at 6A; CH2: 12V DC at 3A |
| Rated power | 66W total across both outputs |
| Input voltage | 88–264VAC / 125–373VDC |
| Dimensions (L × W × H) | 129 × 98 × 38 mm |
| Cooling | Free-air convection |
Selection and installation
Match the output voltage to your equipment and allow suitable current headroom for startup loads. Follow the manufacturer's derating curves, mounting clearances and ventilation requirements. This is not a plug-in desktop adapter or a battery charger. Mains wiring, protective earthing and installation should be carried out by a qualified person with power disconnected.
Do not exceed 66W combined output power. The manufacturer recommends loading CH1 above 10% for regulation; consult the datasheet for cross-regulation and loading conditions.
Download the official Mean Well RD-65 datasheet for complete electrical characteristics, wiring diagrams, operating limits and application restrictions.
Package contents
1 × Mean Well RD-65A switching power supply.
Product images are illustrative and may differ from the supplied unit. Confirm the model label and terminal markings before installation.
