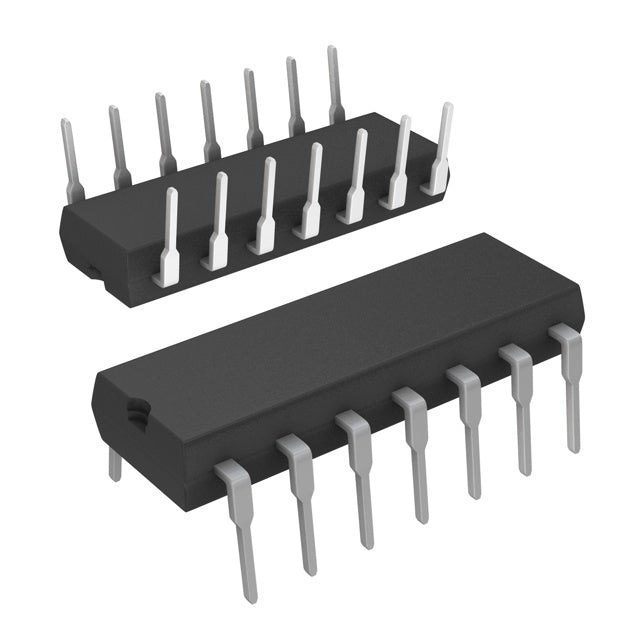

MC1496 Balanced Modulator/Demodulator IC DIP-14 Package

Rs. 89.00 Rs. 180.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

These devices were designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications include the suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications. See ON Semiconductor Application Note AN531 for additional design information.


  • Excellent Carrier Suppression: −65 dB typ @ 0.5 MHz, −50 dB typ @ 10 MHz
  • Adjustable Gain and Signal Handling
  • Balanced Inputs and Outputs
  • High Common Mode Rejection −85 dB Typical
  • This Device Contains 8 Active Transistors
  • Pb−Free Package is Available


Parameter Value
Applied Voltage 30 V
Differential Input SignaL 5 V
Maximum Bias Current 10 mA
Thermal Resistance, Junction−to−Air Plastic Dual In−Line Package 100 °C/W
Operating Ambient Temperature Range 0 to +70°C
Storage Temperature Range −65 to +150°C
Human Body Model (HBM), Machine Model (MM) 2000V, 400V
