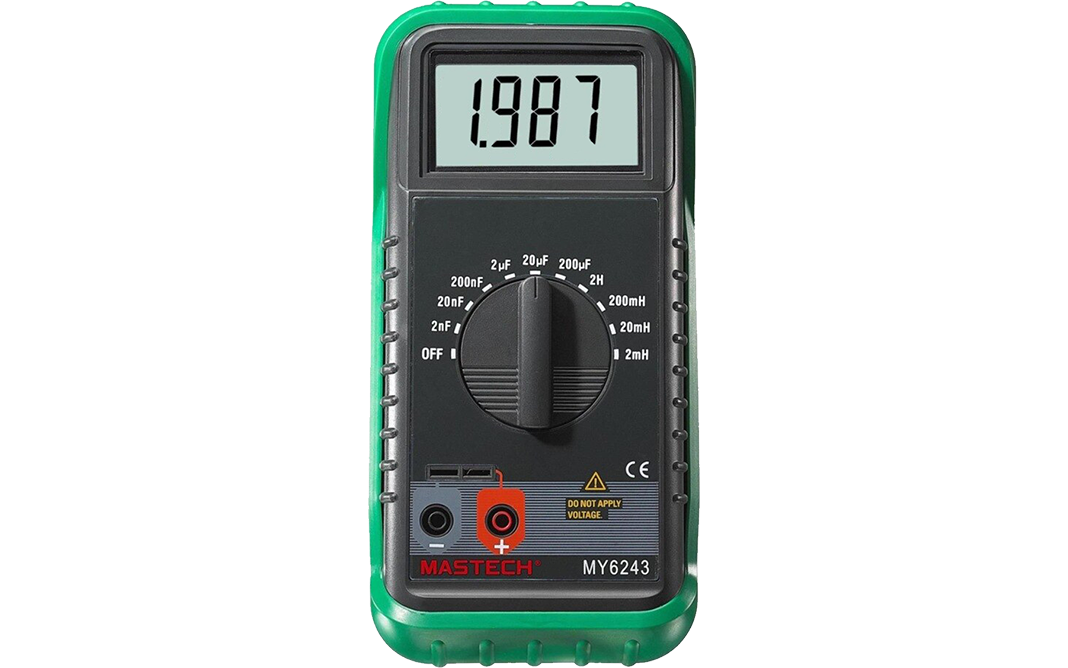

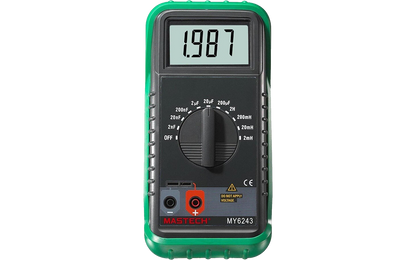

Mastech MY6243 2000 Counts Digital LCR Meter
Mastech MY6243 2000 Counts Digital LCR Meter
Regular price
Rs. 4,199.00
Regular price
Sale price
Rs. 4,199.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
● Display 2000 counts
● Input Jacks
● High Accuracy in Measuring
● Low Battery Display
This Mastech MY6243 2000 Counts Digital LCR Meter gives a direct reading of inductance and capacitance on a 3-digit LCD. Six ranges from 1 pF to 200 pF and four ranges from 1 pH to 2 pH give precision readings, which include virtually all inductance and capacitance used in the electronic engineering laboratory, production, service shops, and schools. Its battery operation, lightweight, and small size make it a truly portable instrument
Features and Specifications:
- 21mm LCD provided; MAX. indication: 1999.
- 6 Ranges from 2nF to 200 pF.
- 4 ranges from 2 mH to 2 h.
- High accuracy in measuring.
- Zero automatic.
- Dual-slope integration A/D converter.
- Overload indication of ” 1 “.
- Safety-designed test probe.
- Power Supply: 1×9V 6F22 Battery
- Product Size : 189mm×91mm×31.5mm/7.4″×3.6″×1.2″
- Product Weight: 240g/0.52lb
- Certification: CE / ETL / RoHS
|

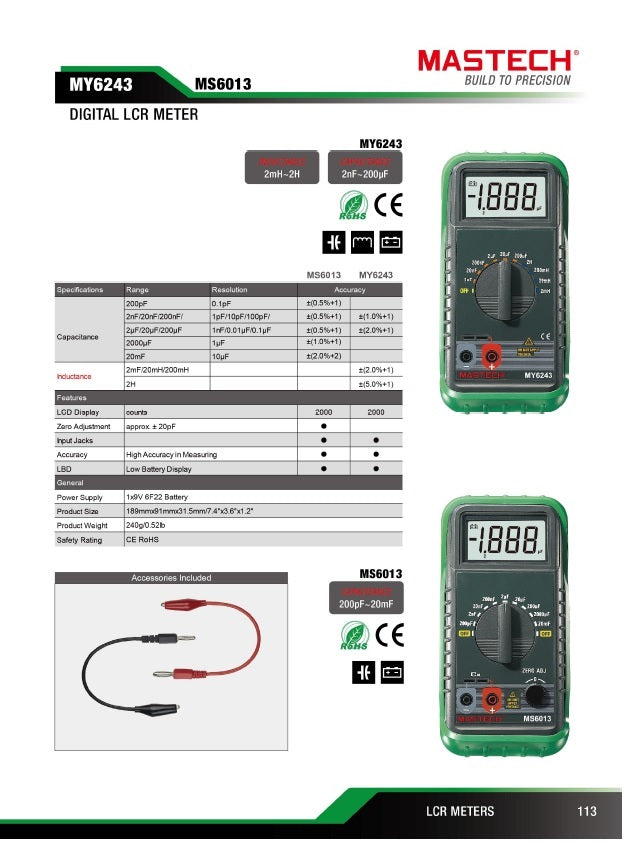

Specifications |
Range |
Resolution |
Accuracy |
|
Capacitance |
2nF/20nF/200nF |
1pF/10pF/100pF |
±(1.0%+1) |
|
2μF/20μF/200μF |
1nF/0.01μF/0.1μF |
±(2.0%+1) |
|
|
Inductance |
2mH/20mH/200mH |
1μH/10μH/100μH |
±(2.0%+1) |
|
2H |
1mH |
±(5.0%+1) |
Package Includes:
- 1 x Mastech MY6243 2000 Counts Digital LCR Meter
- 1 x Test clips
- 1 x Battery and User’s manual
