LoRa SX1278 433MHZ Long Range RF Wireless Module with Wireless alarm system

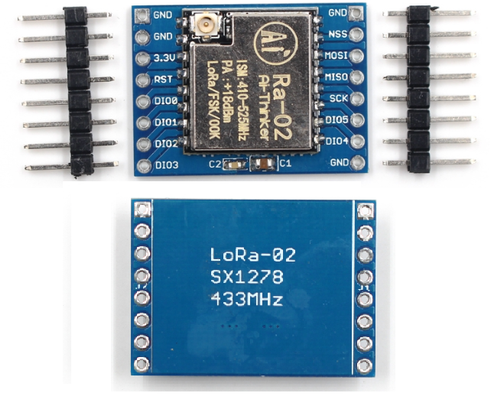

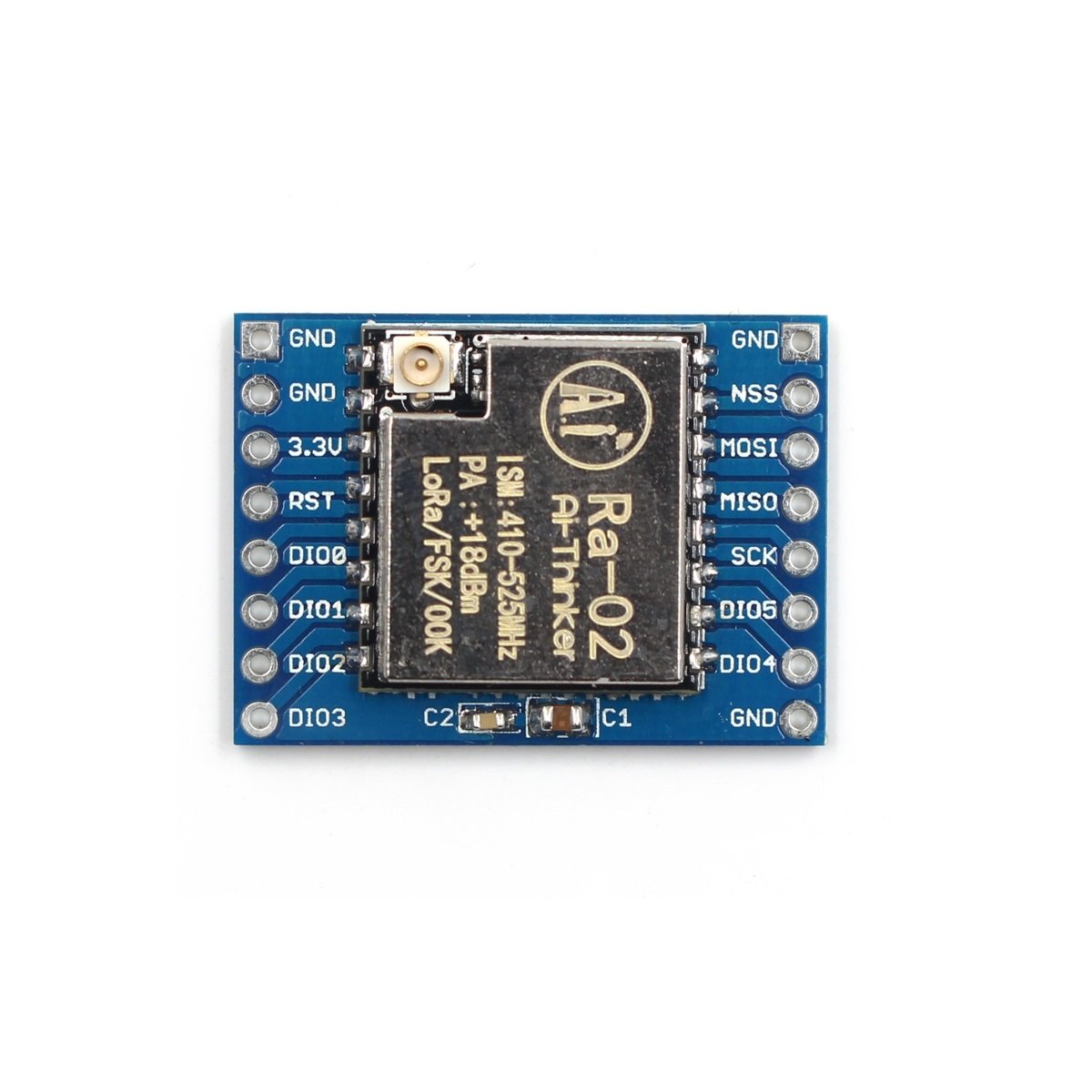

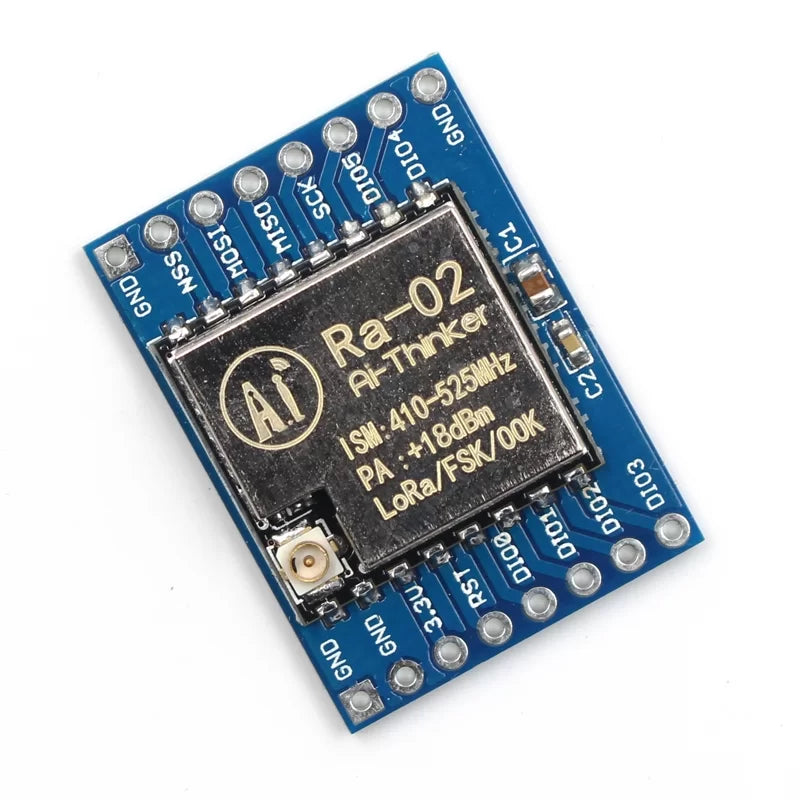

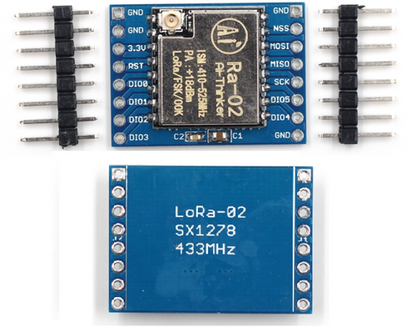

Lora SX1278 433MHZ Long Range RF Wireless Module with Wireless alarm system. This module is a type of low-cost RF front-end transceiver module based on SX1278 from Semtech Corporation. It keeps the advantages of RFIC SX1278 but simplifies the circuit design. The high sensitivity (-136dBm) in LoRa modulation and 20dBm high power output make the module suitable for low range and low data rate applications. The module consists of RFIC SX1278, thin SMD crystal, and an antenna matching circuit. The antenna port is well matched to standard 50 Ohm impedance. Users don’t need to spend time in RF circuit design and choose suitable antennas for different applications. The module operates at 1.8~3.6V with extra-low standby current which makes it suitable for battery powered-up applications. Because it is purely a hardware module and it adopts a 10ppm crystal which the resolution of it places an important role in calculating spreading factor, bandwidth, etc.
Applications:
- Remote control and remote data acquisition system
- Wireless meter reading (water, electricity, gas)
- Wireless ordering machine, oil, mining, construction sites, factories and other original 485/232 interface system
- Industrial data acquisition, transmission, intelligent control system
- Wireless alarm system
- Intelligent furniture system
- Baby monitoring system/hospital paging system
- The wireless small data transmission system
Features/Specs:
- Using FSK / GFKS technology and LoRa (remote) spread spectrum technology
- Half-duplex communication.
- Super anti-jamming (channel rejection ratio: 56db)
- High Receive Sensitivity: 139dbm. (32M Passive 10ppm Crystal)
- ISM multi-band, no need to apply for frequency free use.
- Multi-frequency and a variety of transmission rates for chosen. Can be used in FDMA and FM technology.
- Intelligent reset, low voltage monitoring, timer wakeup, low power mode, sleep mode.
- Low power consumption to accept current: 10-12mA
- 256-bit FIFO TX / RX
- RSSI channel detection function
- Transmission mode: FIFO / direct mode (recommended FIFO pack mode)
- FC / air wake-up function / low power / carrier sense / FEC error correction / AEC encryption
- Ultra-long distance transmission open up to 5KM.
- Material: Metal
- Transmit power: 0.1 (W)
- Size: 17mm x 16.5mm
- Band: 433 (Mhz)
Note: Product Images are shown for illustrative purposes only and may differ from actual product.
