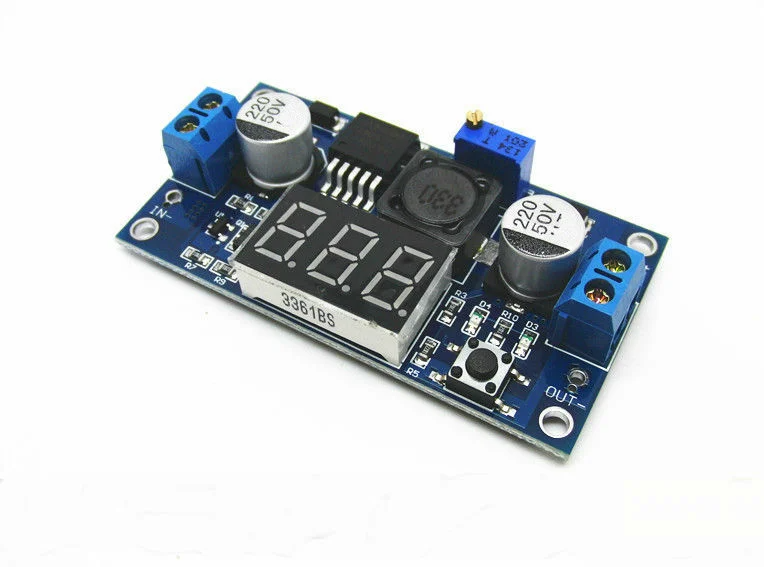

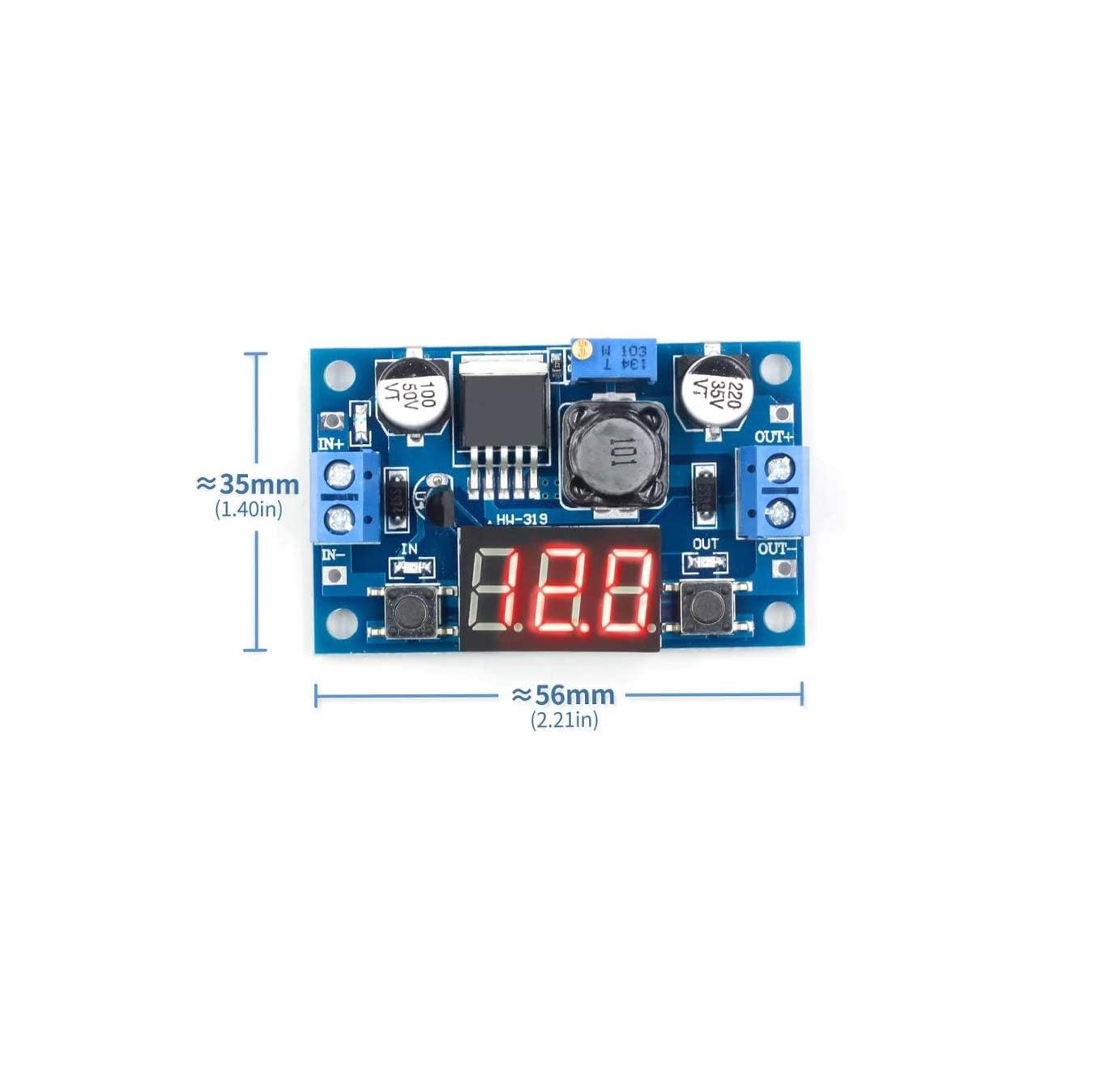

LM2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3-37V LED Voltmeter

Rs. 499.00
Input Voltage(VDC): 4 ~ 40. Output Voltage(VDC): 1.3 ~ 37. Output Current: 2A Rated, ( 3A maximum with heat sink). Switching Frequency: 150 kHz. Input reverse polarity protection. Built-in output short protection function.--Features : Input reverse polarity protection Built-in output short protection function The built-in thermal shutdown function Press the...

Subcribe to back in stock notification

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

Input Voltage(VDC): 4 ~ 40.
Output Voltage(VDC): 1.3 ~ 37.
Output Current: 2A Rated, ( 3A maximum with heat sink).
Switching Frequency: 150 kHz.
Input reverse polarity protection.
Built-in output short protection function.


--

Features :
Input reverse polarity protection
Built-in output short protection function
The built-in thermal shutdown function

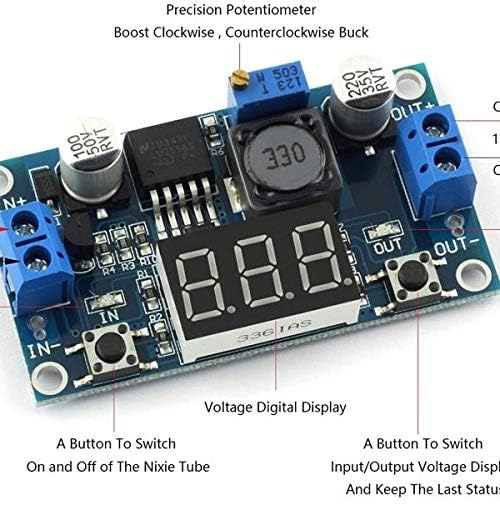

Press the right key to let the display show the input or output voltage. when the right “OUT” led light, it shows output, the left “IN” led show input.
Power-off memory function, show that road after power voltage values measured for the last time
Press the touch button for 3 seconds to turn off the LED display, touch the button again to turn on the LED display
The band terminals, no iron can also be easy to use, and retention wire connection point
This is LM2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3 ~ 37V, it comes with a built-in voltmeter display and uses an advanced microcontroller.

Together with its high precision multi-turn potentiometer, this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boasts a very high operating range with a DC input supply range of 4 ~ 40V and an adjustable output range of 1.3 ~ 37V.
