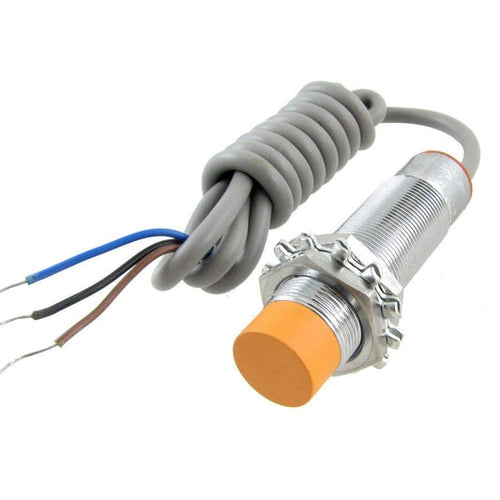

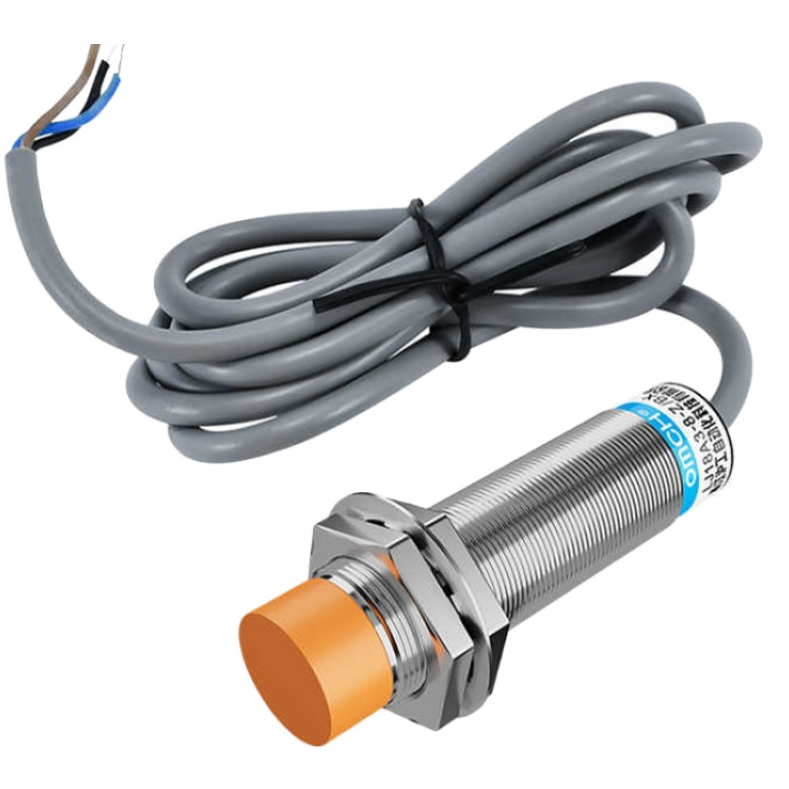

LJ18A3-8-Z BX NPN Sensor Inductive Proximity Switch Detector 8mm DC 6-36V M18 300mA 3 Wire
LJ18A3-8-Z BX NPN Sensor Inductive Proximity Switch Detector 8mm DC 6-36V M18 300mA 3 Wire
Regular price
Rs. 598.00
Regular price
Sale price
Rs. 598.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Product Model -LJC18A3-8-Z / BX
- Sensing distance up to 10mm
- Operating voltage- DC 3-36V
- Current 300mA
- Output Type- NPN (3 wire)
- Dimensions- 71 x 30mm /2.76 x 1.18″” (L xDia)
- Total Length of Wire 120cm (Approx)
- Detection Method - Capacitive
- Weight 80g

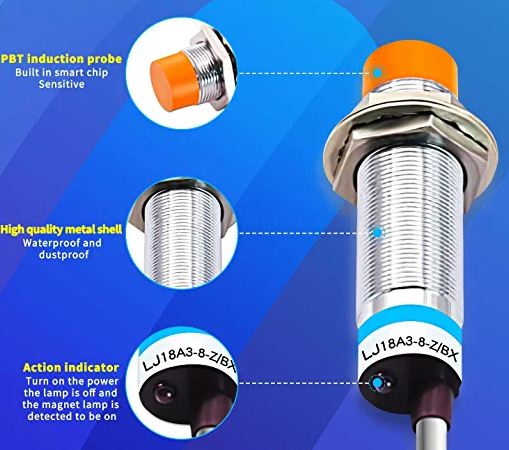

The proximity switch is mainly a switch-type sensor, which has the characteristics of good sensing performance, fast frequency response, long application life and strong anti-interference ability.
It is widely used in machinery, detection, counting and control etc.
Wiring method:
The brown wire is connected to the positive pole of the power supply, the blue wire is connected to the negative pole of the power supply, the signal output of the black wire is connected to one end of the load, the other end of the load - NPN is connected to the positive pole, and the PNP is connected to the negative pole.
