LCD KeyPad Shield for Arduino UNO
LCD KeyPad Shield for Arduino UNO
Couldn't load pickup availability
Analog 0 Buttons (select, up, right, down and left)
Digital 4 DB4
Digital 5 DB5
Digital 6 DB6
Digital 7 DB7
Digital 8 RS (Data or Signal Display Selection)
Digital 9 Enable
--

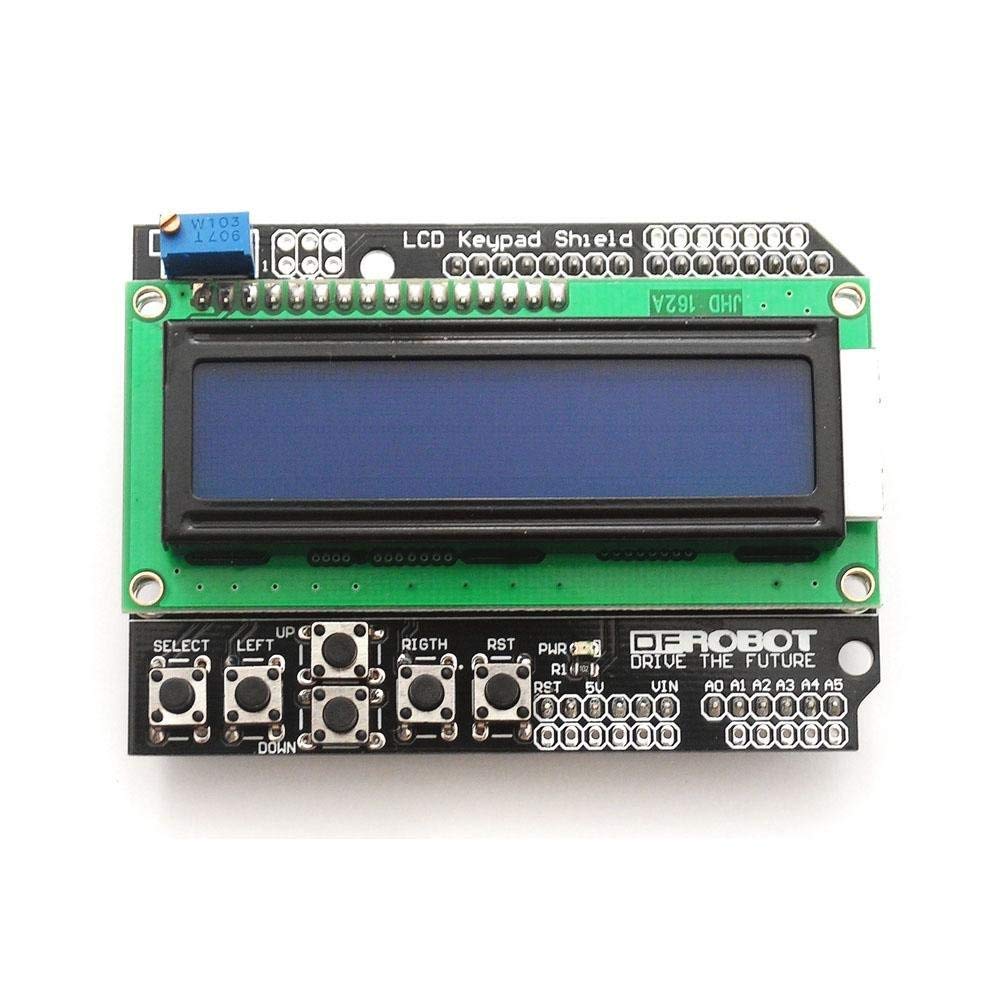

This is a 16x2 LCD and Keypad shield for Arduino Uno, Diecimila, Duemilanove and Freeduino boards.
Blue Backlight with white words
uses 4 Bit Arduino LCD Library
Left, Right, Up, Down and Select buttons
Screen contrast adjustment
Arduino Reset button
The board uses different pins to the Arduino example sketches, so to make the display work, use the following sequence of pins when starting the library:
LiquidCrystal lcd(8,9,4,5,6,7);
The buttons are connected to only one analog input pin through resistors to give a different voltage for each button, thus saving on input/output pins
