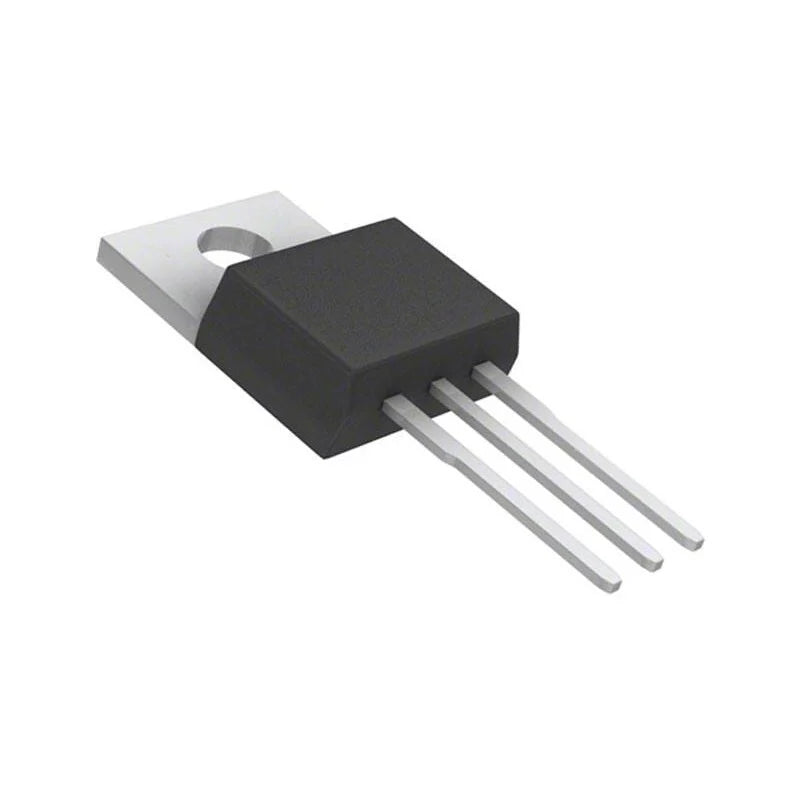

IRF9540 MOSFET IC IRF 9540 P-Channel Power MOSFET

Rs. 70.00 Rs. 90.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441


  • Max Voltage Applied From Drain to Source: -100V

  • Max Gate to Source Voltage Should Be: ±20V

  • Max Continues Drain Current is : -19A

  • Drain to Source Resistance in ON State: 200 Ohms

  • Max Pulsed Drain Current is: -76A


--

IRF9540 is a P channel MOSFET transistor that can be used for switching and amplification purposes. The transistor is capable to drive max load of -19A with the load voltage of -100V and the max load in pulse mode can be upto -76A.


It also has low gate driving capability due to which the user can operate it directly from the output of ICs or microcontrollers. It can also drive load of upto 56A in pulse mode.

Features:



  • Max Voltage Applied From Drain to Source: -100V

  • Max Gate to Source Voltage Should Be: ±20V

  • Max Continues Drain Current is : -19A

  • Drain to Source Resistance in ON State: 200 Ohms

  • Max Pulsed Drain Current is: -76A

  • Max Power Dissipation is: 150W

  • Max Storage & Operating temperature Should Be: -55 to +175 Centigrade

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
