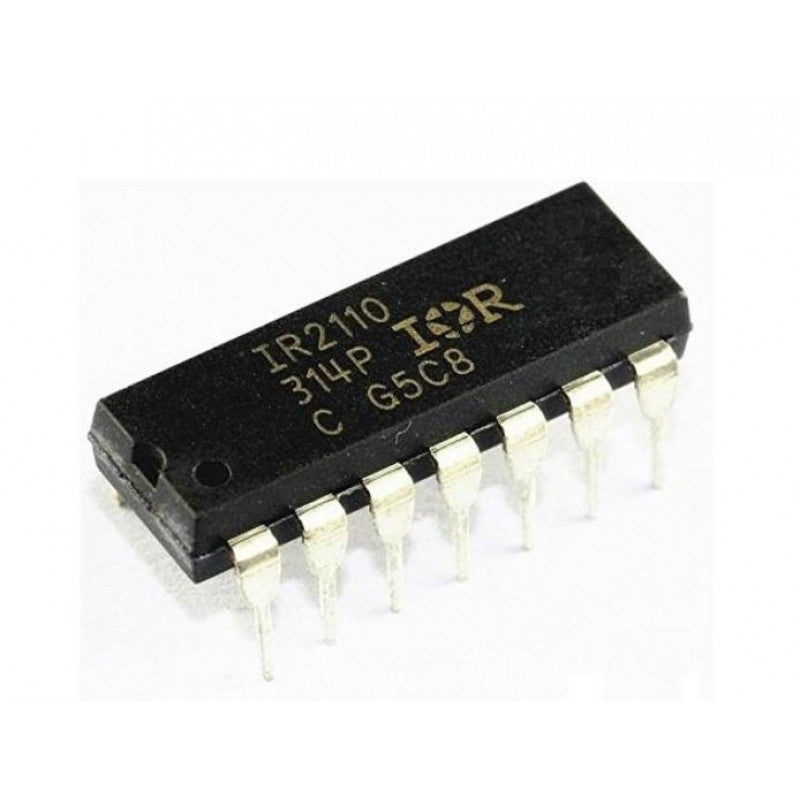

IR 2110 High and Low Side Driver IC

Rs. 99.00 Rs. 140.00
  Gate drive supply range from 10 to 20V CMOS Schmitt-triggered inputs with pull-down Cycle by cycle edge-triggered shutdown logic Matched propagation delay for both channels Outputs in phase with inputs -- The IR2110 is high voltage, high speed power MOSFET and IGBT driver with independent high and low side...

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441



    • Gate drive supply range from 10 to 20V

    • CMOS Schmitt-triggered inputs with pull-down

    • Cycle by cycle edge-triggered shutdown logic

    • Matched propagation delay for both channels

    • Outputs in phase with inputs


--

The IR2110 is high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.

Features:-


    • Floating channel designed for bootstrap operation Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune

    • Gate drive supply range from 10 to 20V

    • Under voltage lockout for both channels

    • 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset

    • CMOS Schmitt-triggered inputs with pull-down

    • Cycle by cycle edge-triggered shutdown logic

    • Matched propagation delay for both channels

    • Outputs in phase with inputs

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- FedEx, Delhivery, XpressBees, Ecom Express, E kart Logistics, for remote location we use India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
