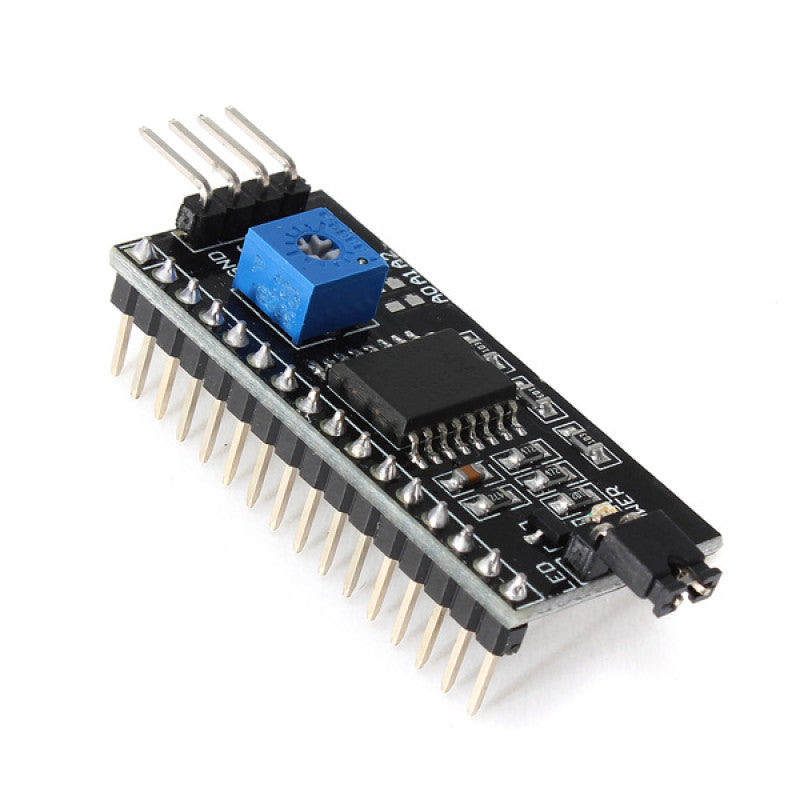

IIC / I2C Module for LCD Serial Interface Adapter Module

Rs. 65.00
Rs. 65.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption
  • Operating Voltage: 5V
  • Backlight and Contrast is adjusted by potentiometer
  • Serial I2C control of LCD display using PCF8574
  • Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
  • Compatible for 16x2, 20x4 LCD
  • This is another great IIC/I2C/TWI/SPI Serial Interface

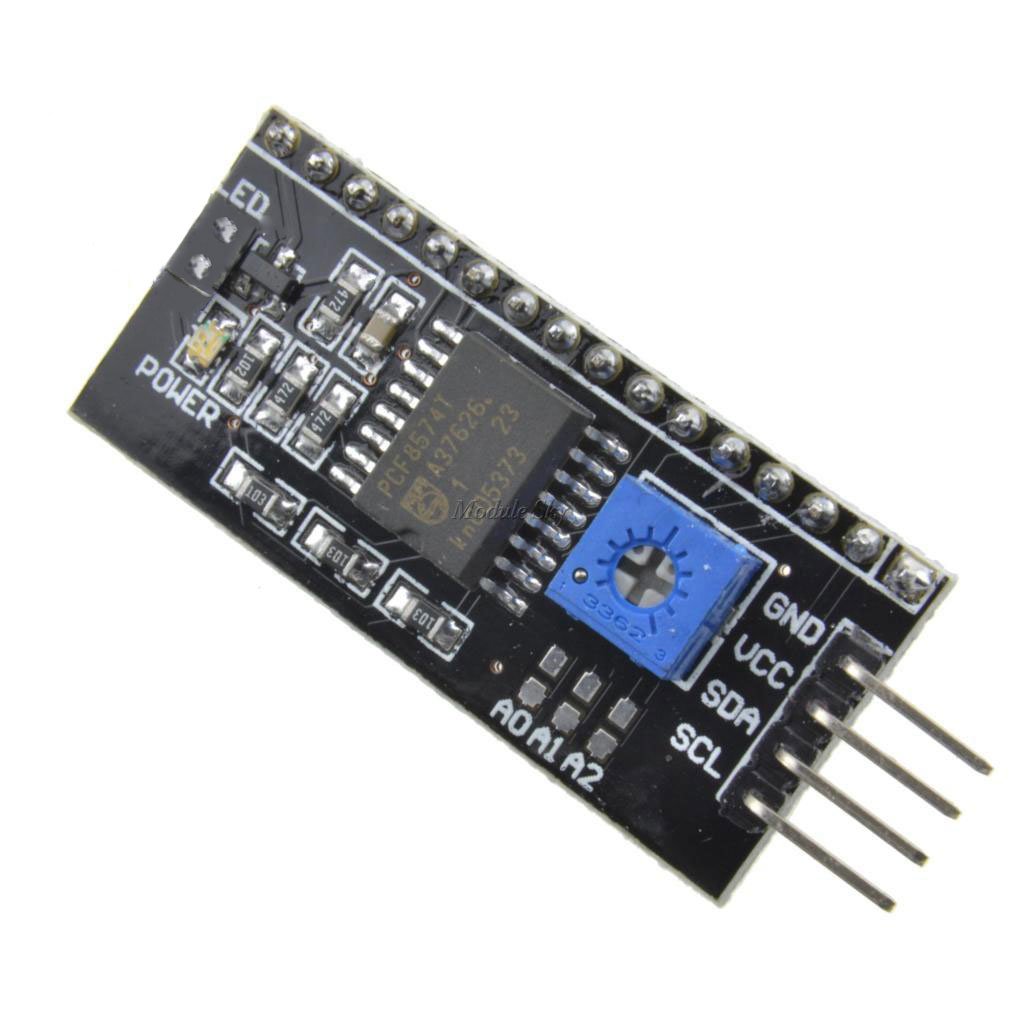

I2C Module has a inbuilt PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display.

These modules are currently supplied with a default I2C address of either 0x27 or 0x3F. To determine which version you have check the black I2C adaptor board on the underside of the module. If there a 3 sets of pads labelled A0, A1, & A2 then the default address will be 0x3F. If there are no pads the default address will be 0x27.
