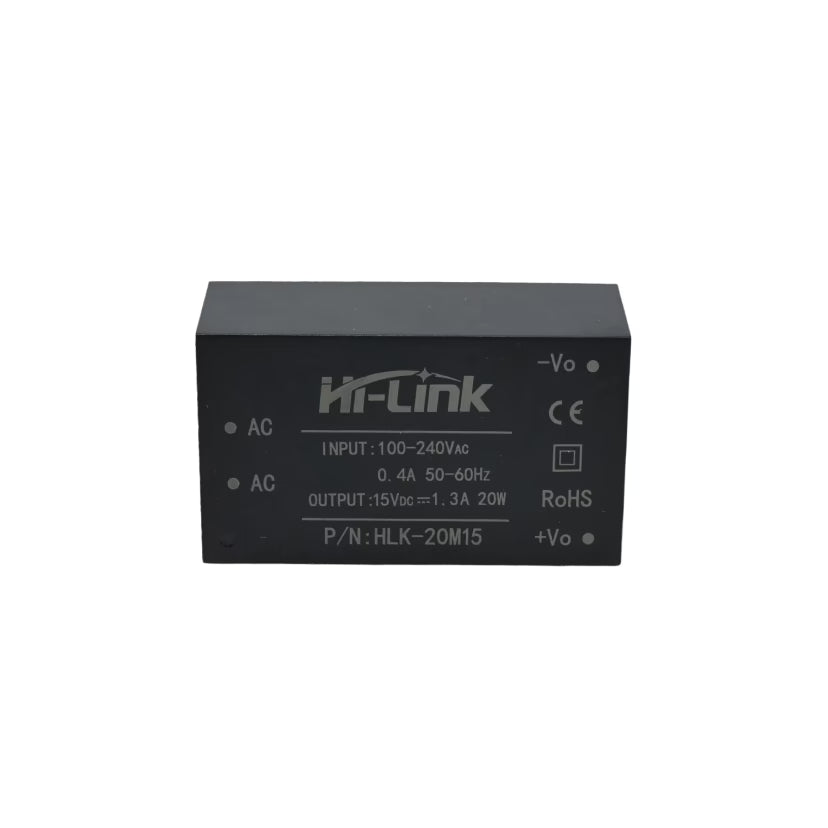

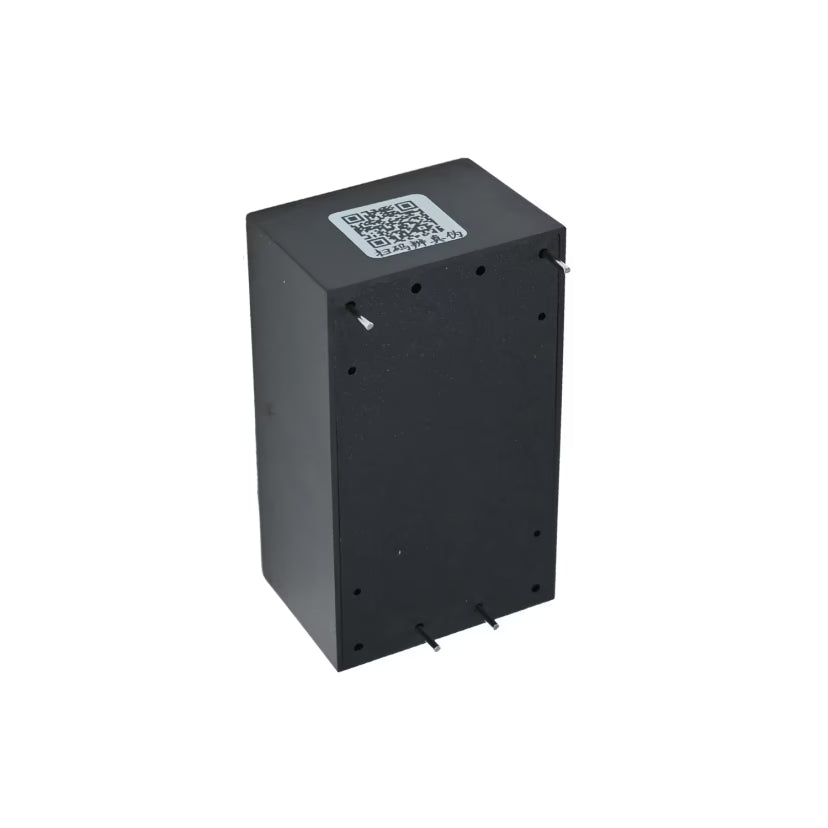

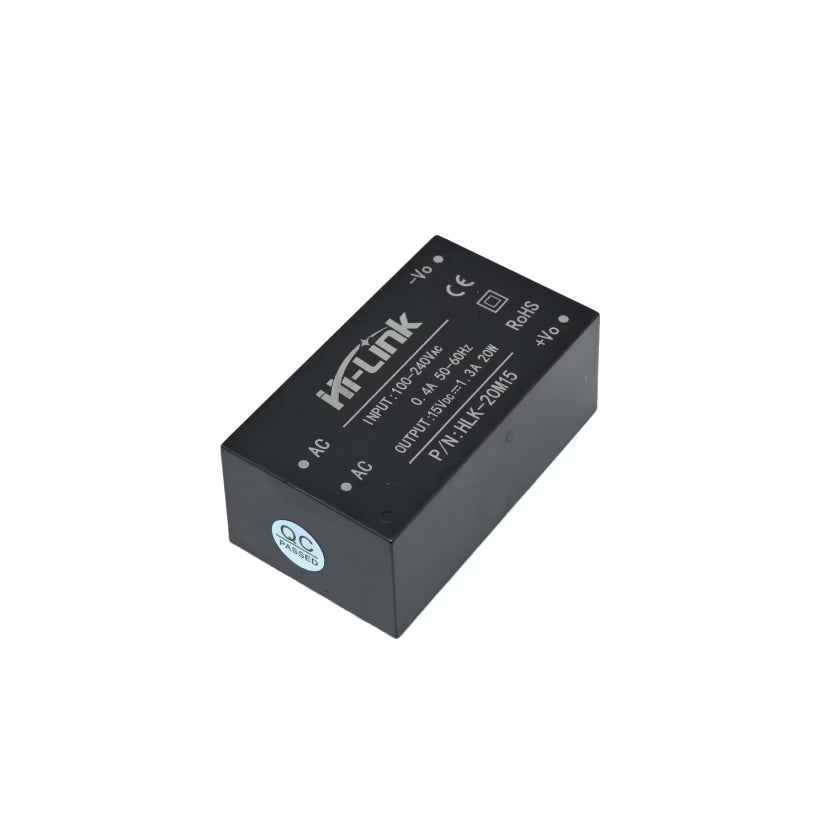

Hi-Link HLK-20M15 15V 20W AC to DC Power Supply Module
Hi-Link HLK-20M15 15V 20W AC to DC Power Supply Module
Couldn't load pickup availability
- Output Voltage: 15Vdc @ 1.3A
- Power Rating: 20W
- Efficiency: ≥84%
- Isolation Voltage: 3000VAC
- Input Voltage: 100-240 Vac @0.4A, 50-60Hz
The Hi-Link HLK-20M15 is a 20W ultra-compact AC-DC power module designed for efficient and reliable power conversion from 220V AC to 15V DC. Built with high efficiency and low power consumption, this module ensures stable output with minimal ripple and noise. Its compact size, high isolation, and robust protection features make it ideal for embedded systems and industrial applications.
With universal input voltage support and long operational life, it delivers consistent performance in demanding environments. The module is fully sealed for moisture resistance and vibration protection, ensuring durability. It is widely used in smart home systems, automation, and communication devices where space-saving and reliability are critical.
Features:
- Ultra-compact and thin design
- Universal input voltage (85–265VAC / 70–350VDC)
- High efficiency up to 84%
- Low no-load power consumption (<0.1W)
- Low ripple and noise output
- Over-current and short circuit protection
- 3000VAC isolation voltage
- Long life (>100,000 hours)
Specifications:
- Input Voltage Range : 85–265VAC / 70–350VDC
- Rated Input Voltage : 100–240VAC
- Output Voltage : 15V DC
- Output Current : 1300mA
- Voltage Regulation : ±0.2%
- Load Regulation : ±0.5%
- Ripple & Noise : ≤150mVp-p
- Efficiency (230VAC) : ≥84%
- Input Current : ≤0.4A
- Surge Current : ≤34A
- MTBF : ≥100,000 hours
- Operating Temperature : -25°C to +60°C
- Storage Temperature : -40°C to +80°C
- Humidity : 5–95% RH
- Isolation Resistance : >100MΩ
- Dimentions: 55 x 30 x 20 mm
- Weight : 67 g
