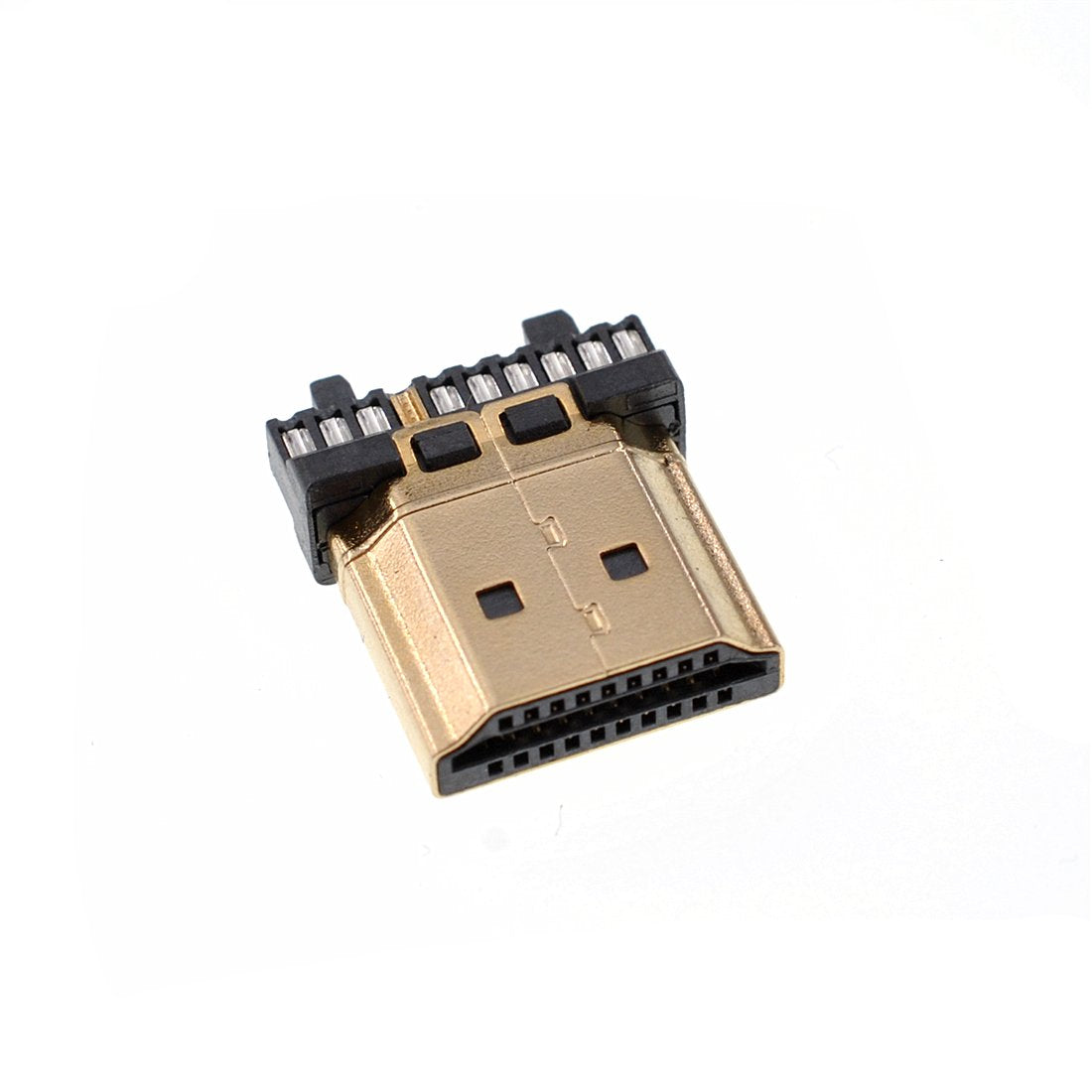

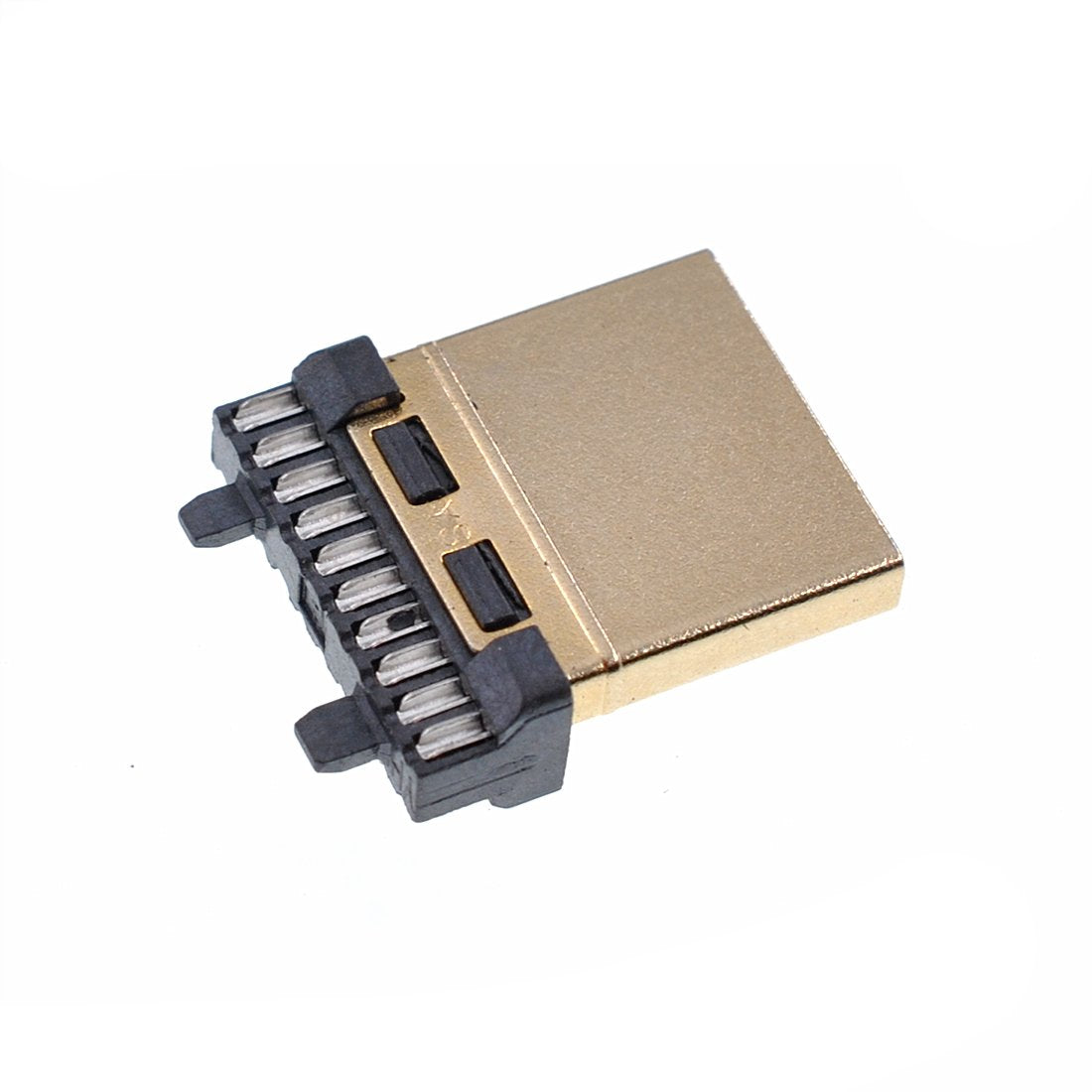

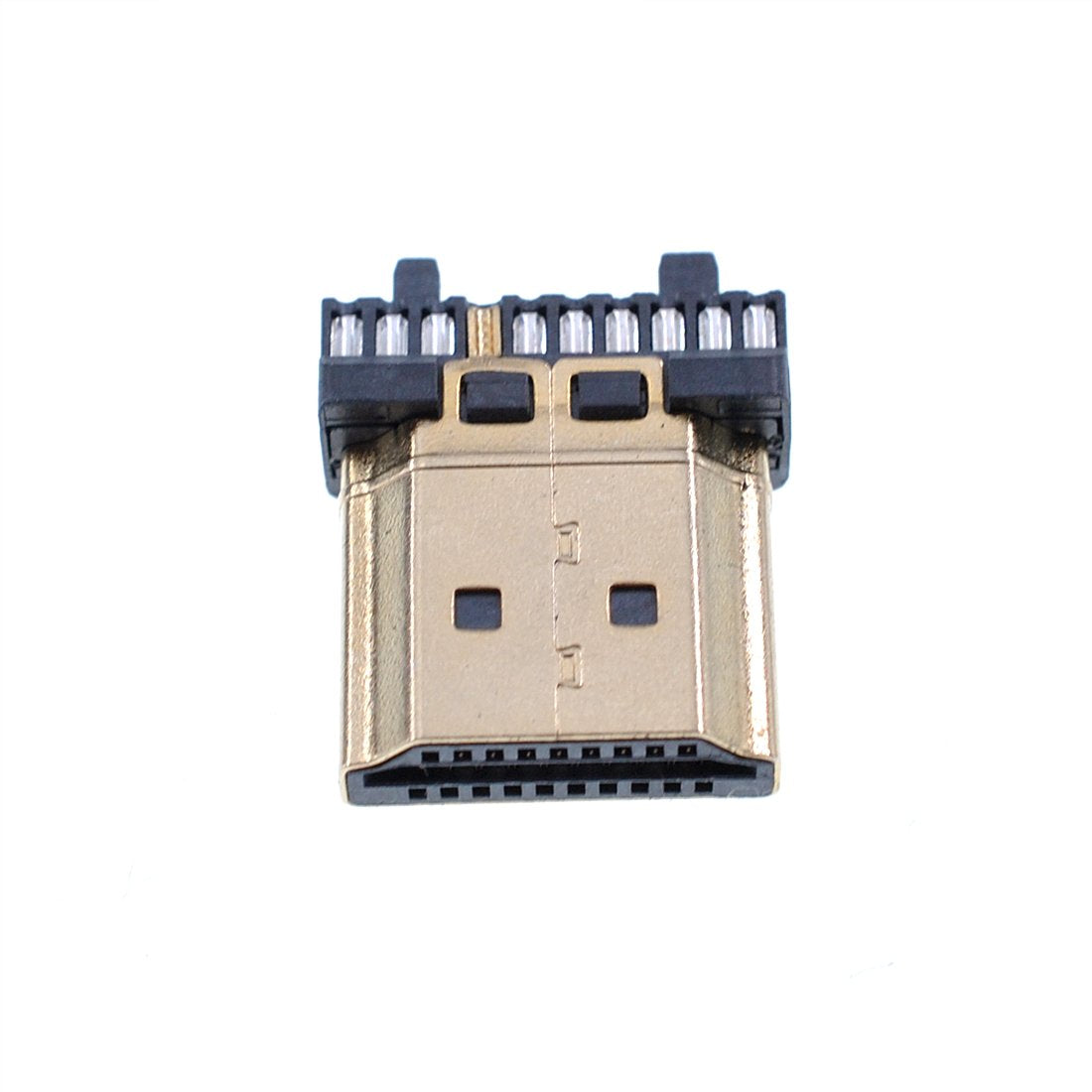

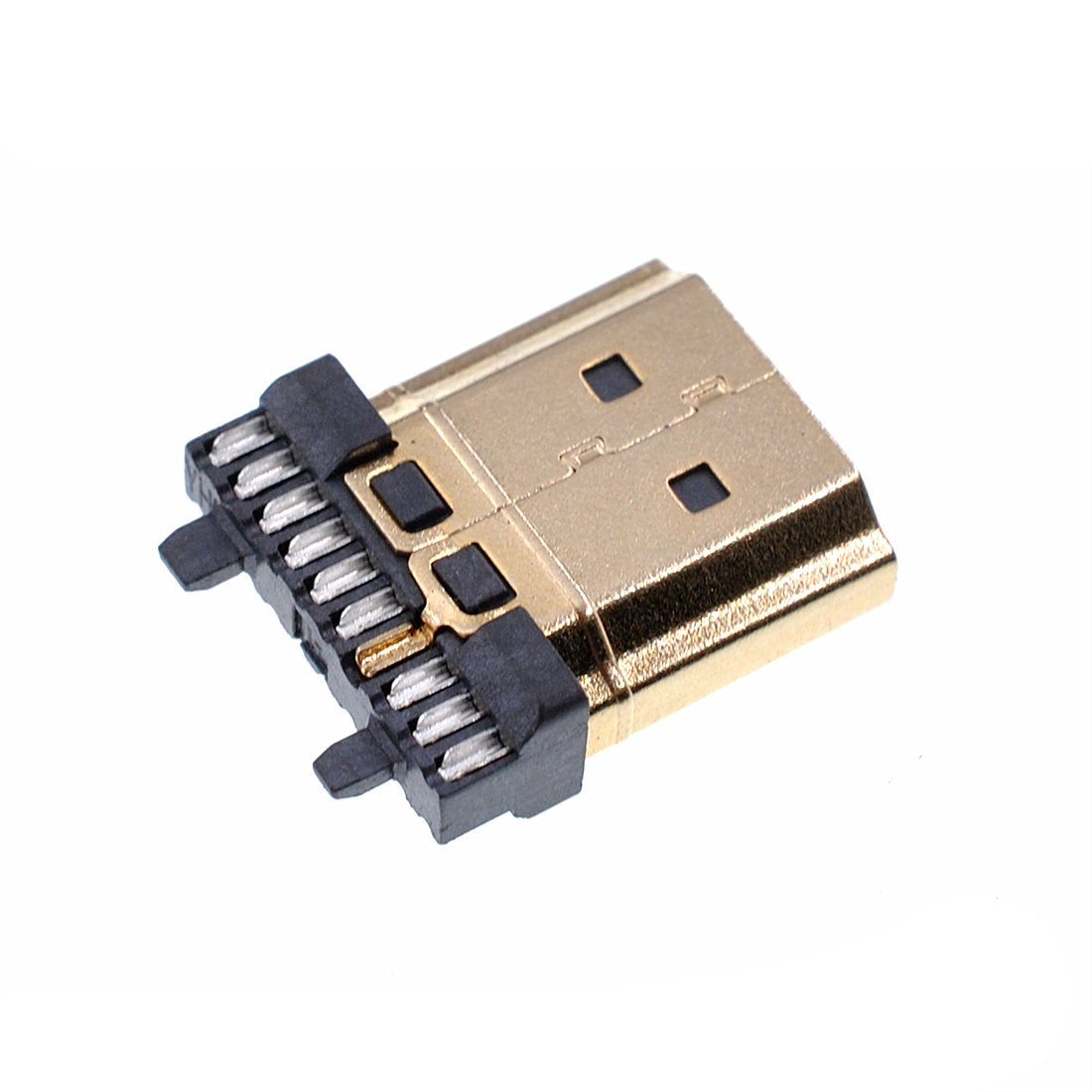

HDMI Gold Plated HDMI A Type 19 Pin Male Plug HDMI Connector with Dust Cap & Wire Clip
HDMI Gold Plated HDMI A Type 19 Pin Male Plug HDMI Connector with Dust Cap & Wire Clip
Regular price
Rs. 29.00
Regular price
Sale price
Rs. 29.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Number Of Pins: 19
- Standard: HDMI
- Gender: Male
- Max Operating Temperature: 85 C
- Min Operating Temperature: -25 C
- Mount: Surface Mount
- Rating DC 30V 0.2A
- Insulation resistance ≥1000MΩ min. 500V DC
- Dielectric strength 250V AC for 1min
- Contact resistance ≤50mΩ
- Operating temp.range -30ºC ~ +70ºC
- Lifetime 5000 cycles min.
- Insertion force ≤35N
- Extraction force ≥10N
- Application They can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

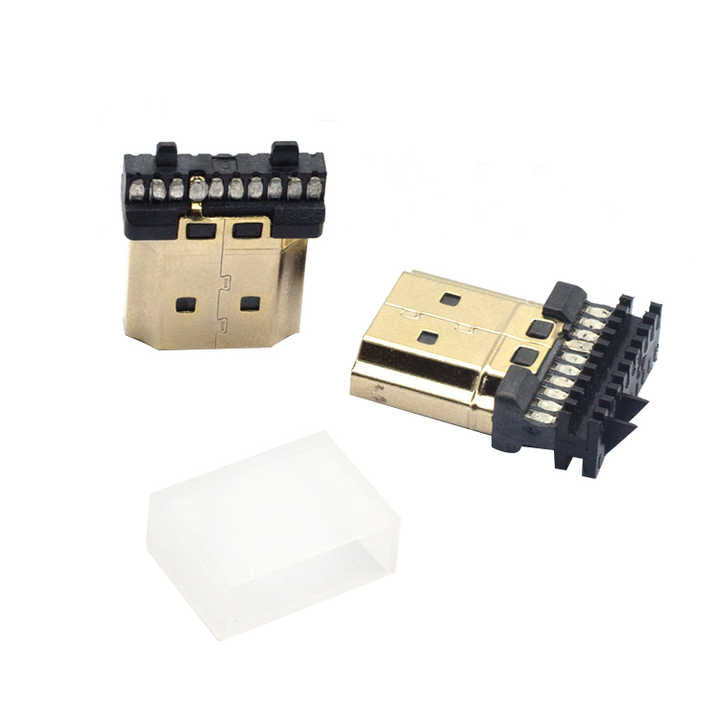

Package Include:
- HDMI MALE CONNECTOR- 1

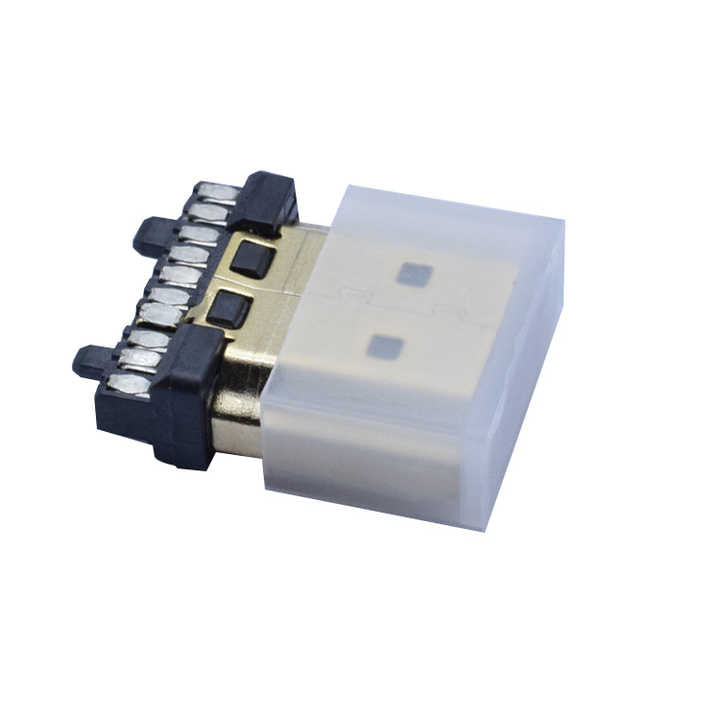

- DUST COVER- 1
- WIRE GUIDE- 1
