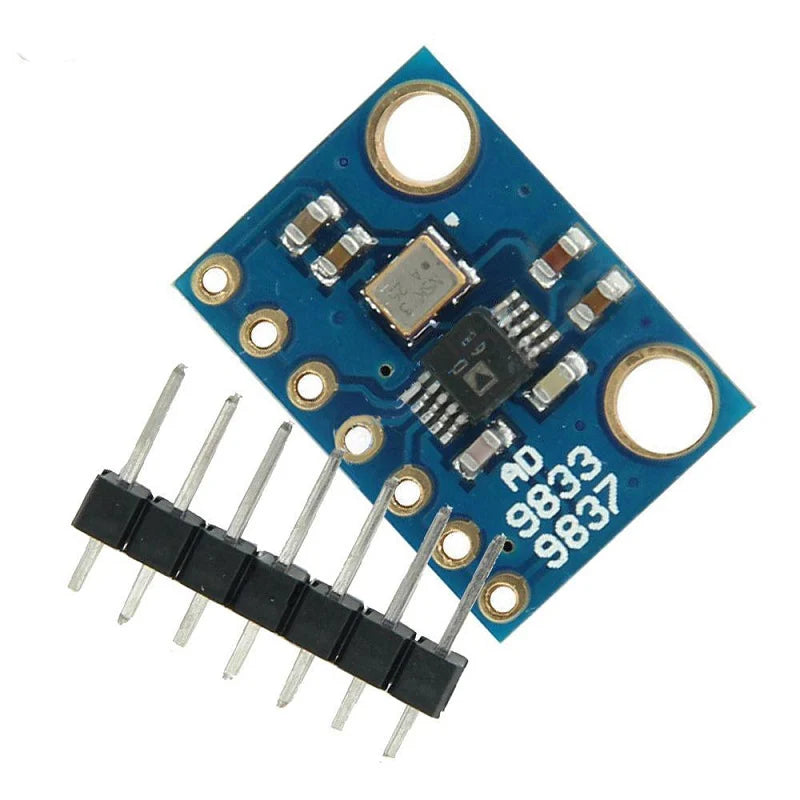

GY-9833 AD 9833 Programmable Sine Square Wave DDS Signal Generator

Rs. 379.00 Rs. 450.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, actuation, and time domain reflectometry (TDR) applications. The output frequency and phase are software programmable, allowing easy tuning. No external components are needed.

The AD9833 has a standard serial interface that allows the part to interface directly with several microprocessors. The device uses an external serial clock to write the data or control information into the device.

The AD9833 is written to via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The device operates with a power supply from 2.3 V to 5.5 V.

The AD9833 has a power-down function (SLEEP). This allows sections of the device that are not being used to be powered down, thus minimizing the current consumption of the part, e.g., the DAC can be powered down when a clock output is being generated.


  1. Digitally programmable frequency and phase
  2. 12.65 mW power consumption at 3 V
  3. 0 MHz to 12.5 MHz output frequency range
  4. 28-bit resolution: 0.1 Hz at 25 MHz reference clock
  5. Sinusoidal, triangular, and square wave outputs
  6. 2.3 V to 5.5 V power supply
  7. No external components required
  8. 3-wire SPI interface

Package Includes:

1 x GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator
