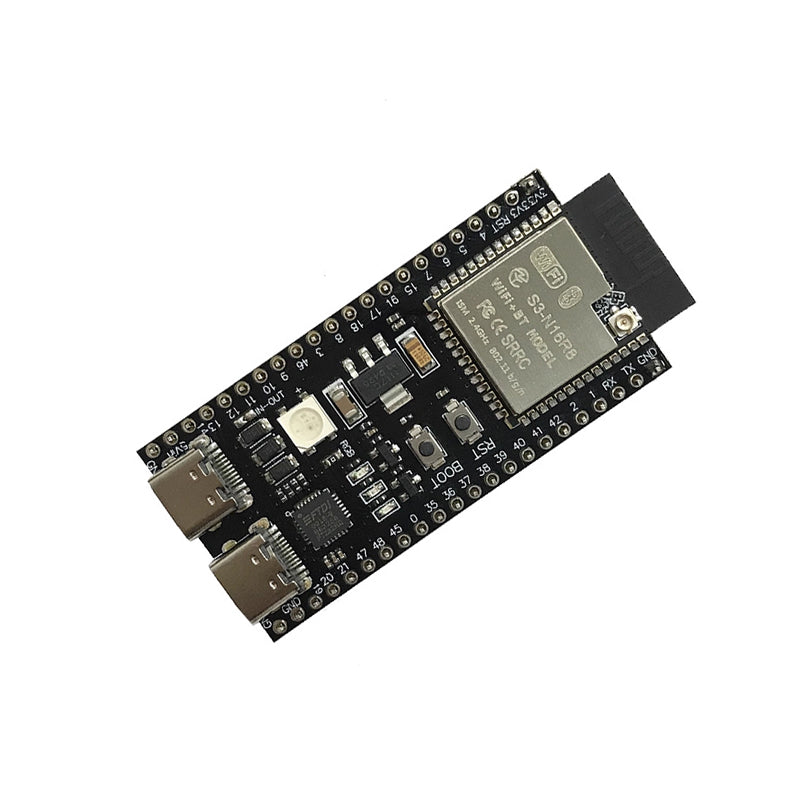

ESP32-S3-N16R8 Development Board – WiFi, BLE 5.0, Dual USB-C & External Antenna Port

ESP32-S3-N16R8 Development Board for Connected Projects

Build your next connected prototype around the ESP32-S3-N16R8 development board. With a 32-bit LX7 dual-core processor, 16 MB flash and 8 MB PSRAM, this board brings processing power, memory and wireless connectivity together in a compact 57 × 28 mm format.

From experimenting with connected sensors to developing a wireless control interface, its 36 IO ports give you room to connect your project hardware. Dual USB Type-C ports provide separate COM-labelled and native USB connections, while the external antenna port supports an external antenna setup. The antenna is not included.

Key Features

• Dual-core processing: 32-bit LX7 processor for embedded development and multitasking.
• N16R8 memory configuration: 16 MB flash for program storage and 8 MB PSRAM for memory-demanding projects.
• Wireless connectivity: 2.4 GHz WiFi and Bluetooth 5.0 Low Energy (BLE), with a listed WiFi data rate of up to 150 Mbps.
• Dual USB-C interfaces: COM-labelled connection for programming and a native USB interface supporting OTG functionality.
• Flexible hardware connections: 36 IO ports, with 2 I2C and 4 SPI interfaces.
• Onboard RGB indicator: WS2818 RGB LED connected to IO48.
• Power-management options: Low-power coprocessor and a listed transmit-power mode of up to 20 dBm.
• External antenna port: Antenna must be sourced separately.

Technical Specifications

• Model: ESP32-S3-N16R8
• Processor: 32-bit LX7 dual-core
• Flash memory: 16 MB
• PSRAM: 8 MB
• WiFi: 2.4 GHz; listed data rate up to 150 Mbps
• Bluetooth: Bluetooth 5.0 BLE
• Listed board working voltage: 3.3–5 V
• IO ports: 36
• Interfaces: 2 I2C, 4 SPI and 2 USB Type-C ports
• RGB LED: WS2818, connected to IO48

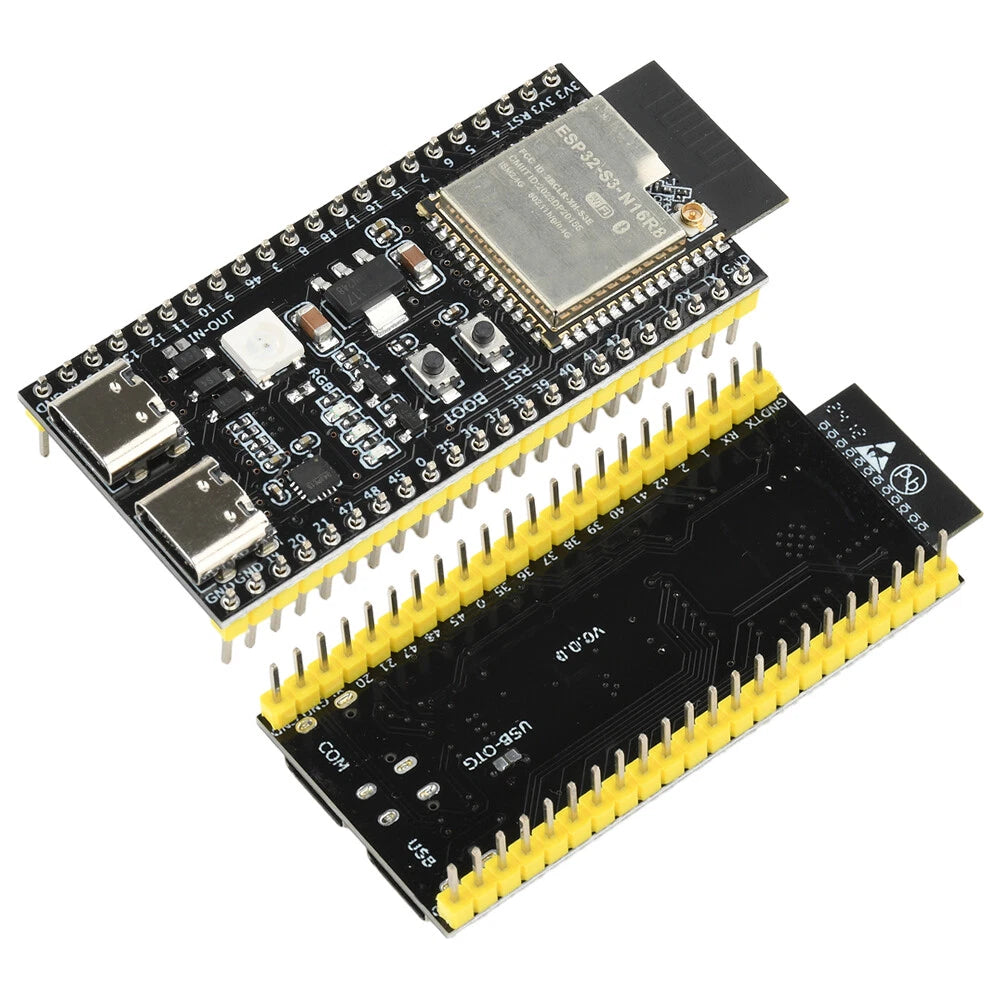

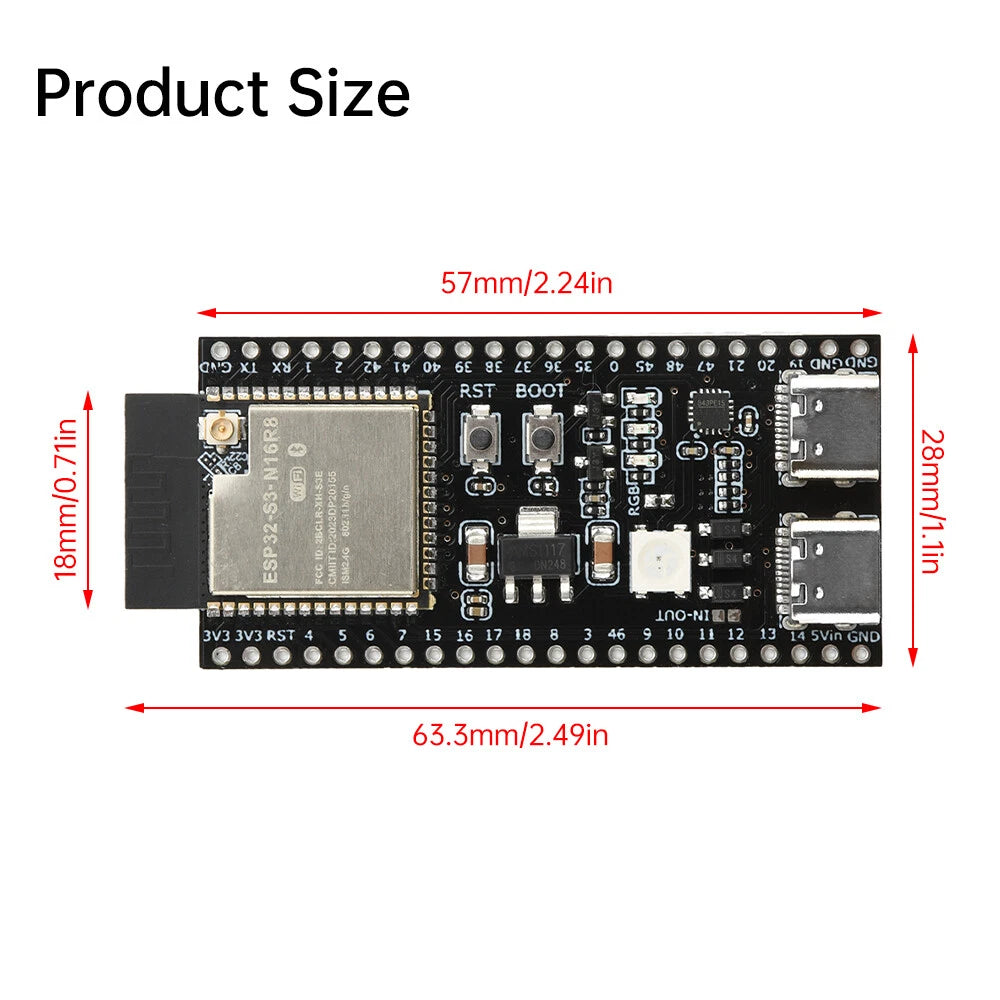

• Dimensions: 57 × 28 mm
• Supplied condition: Unsoldered

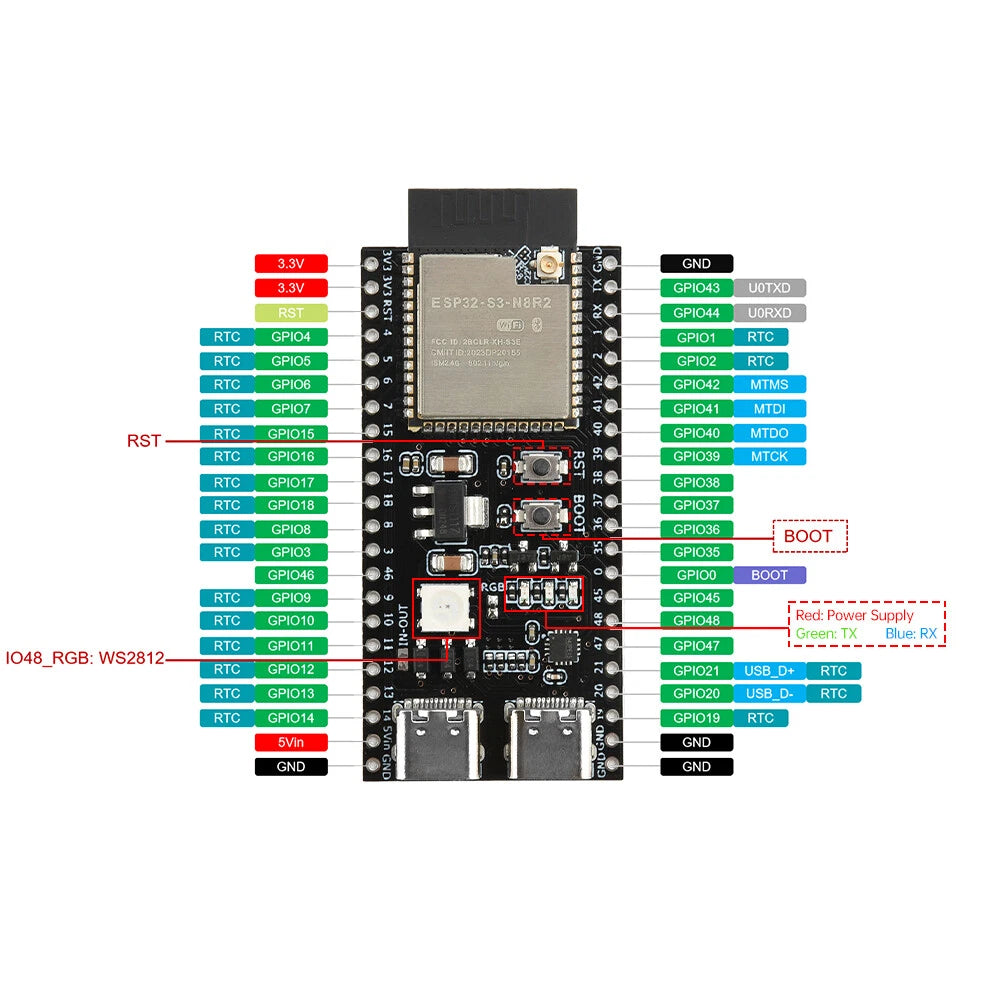

Programming and Setup Notes

Use the COM-labelled Type-C port for the direct COM connection. For programming through the native USB port, holding BOOT while connecting may be needed for the programming port to appear. The supplied factory program lights the RGB indicator when connected to WiFi and switches it off when disconnected.

Voltage note: The listed 3.3–5 V working range refers to the board power specification, not a statement that its GPIO pins accept 5 V signals. Verify the board pinout and electrical limits before connecting external hardware.

Package Contents

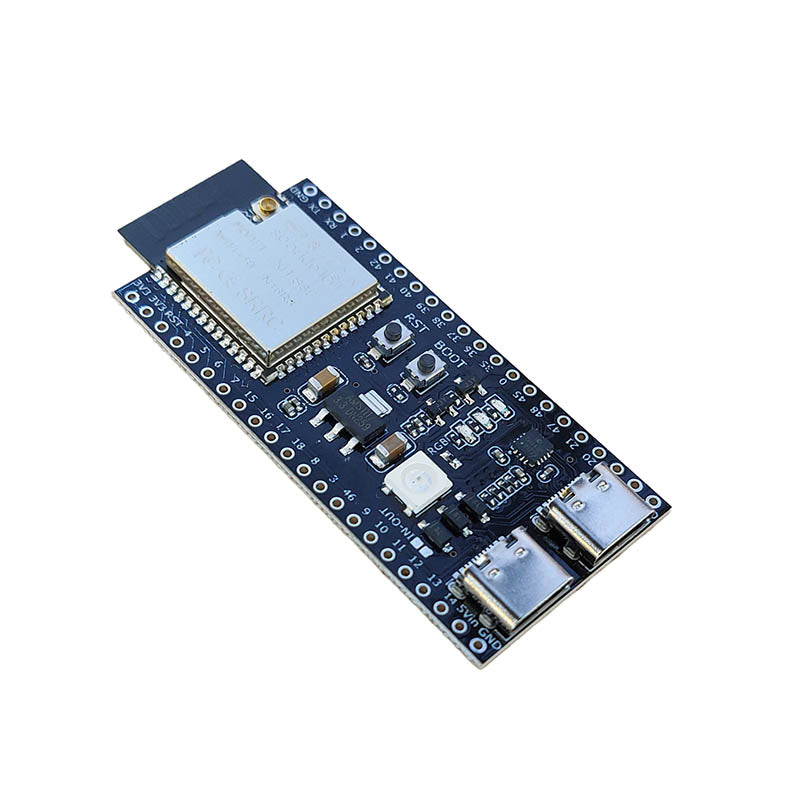

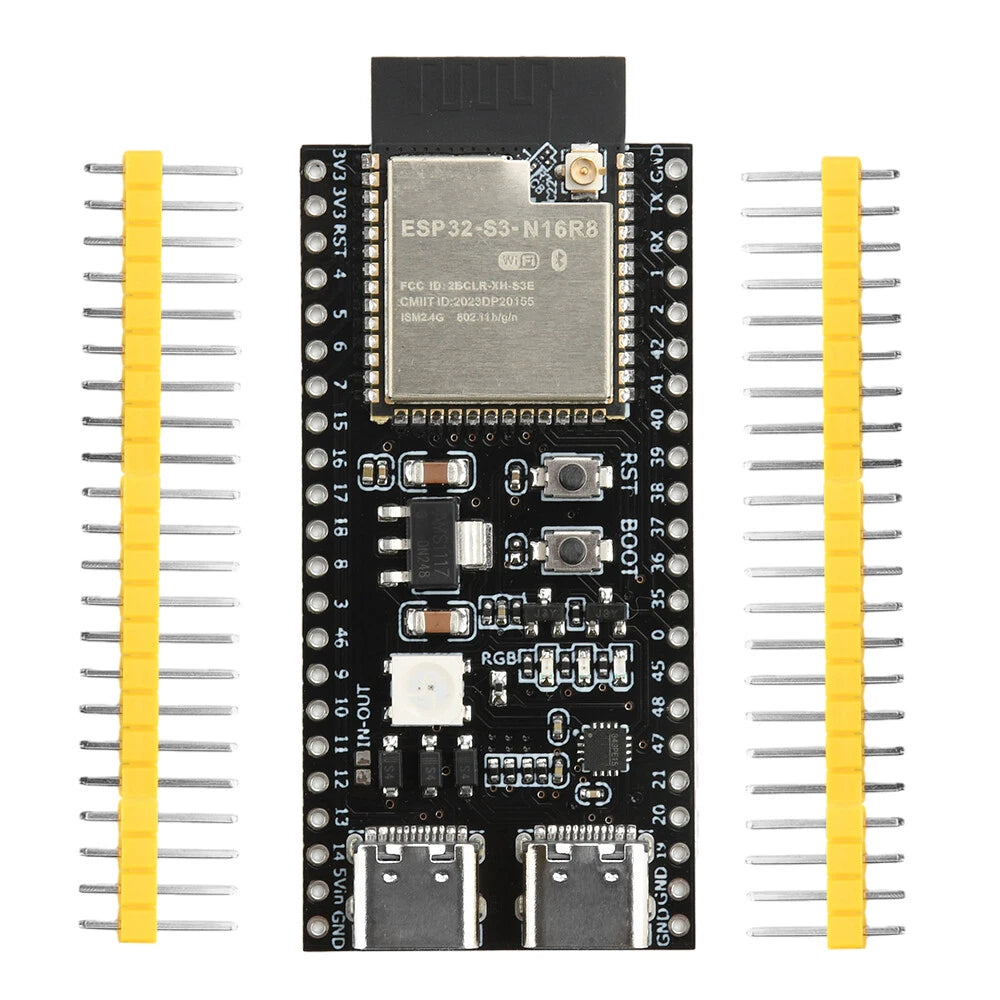

• 1 × ESP32-S3-N16R8 Development Board (Unsoldered)

Please note: Antenna not included. Images are for reference only; the actual product may vary.
