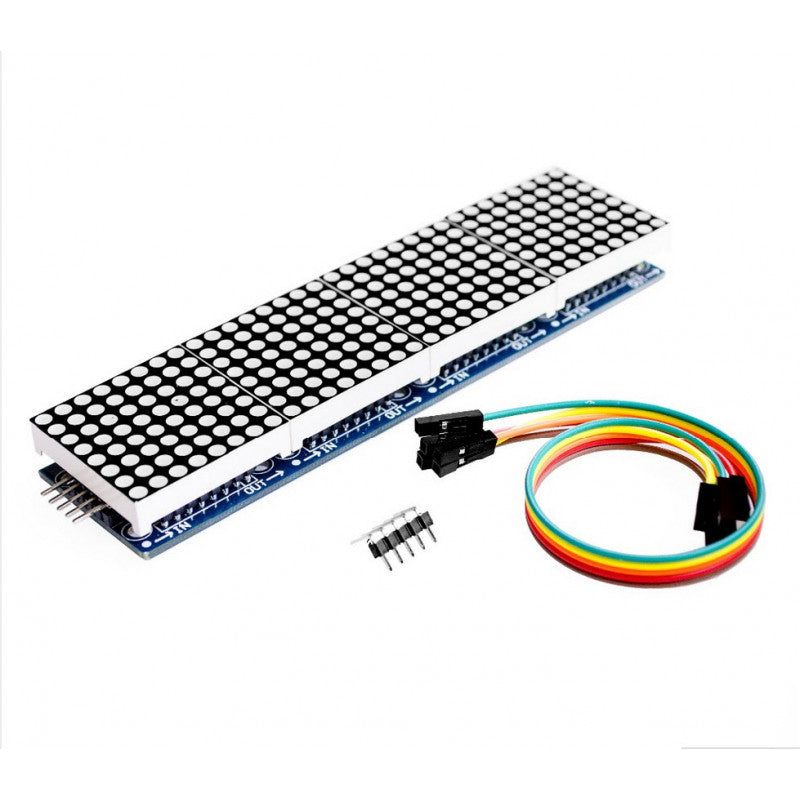

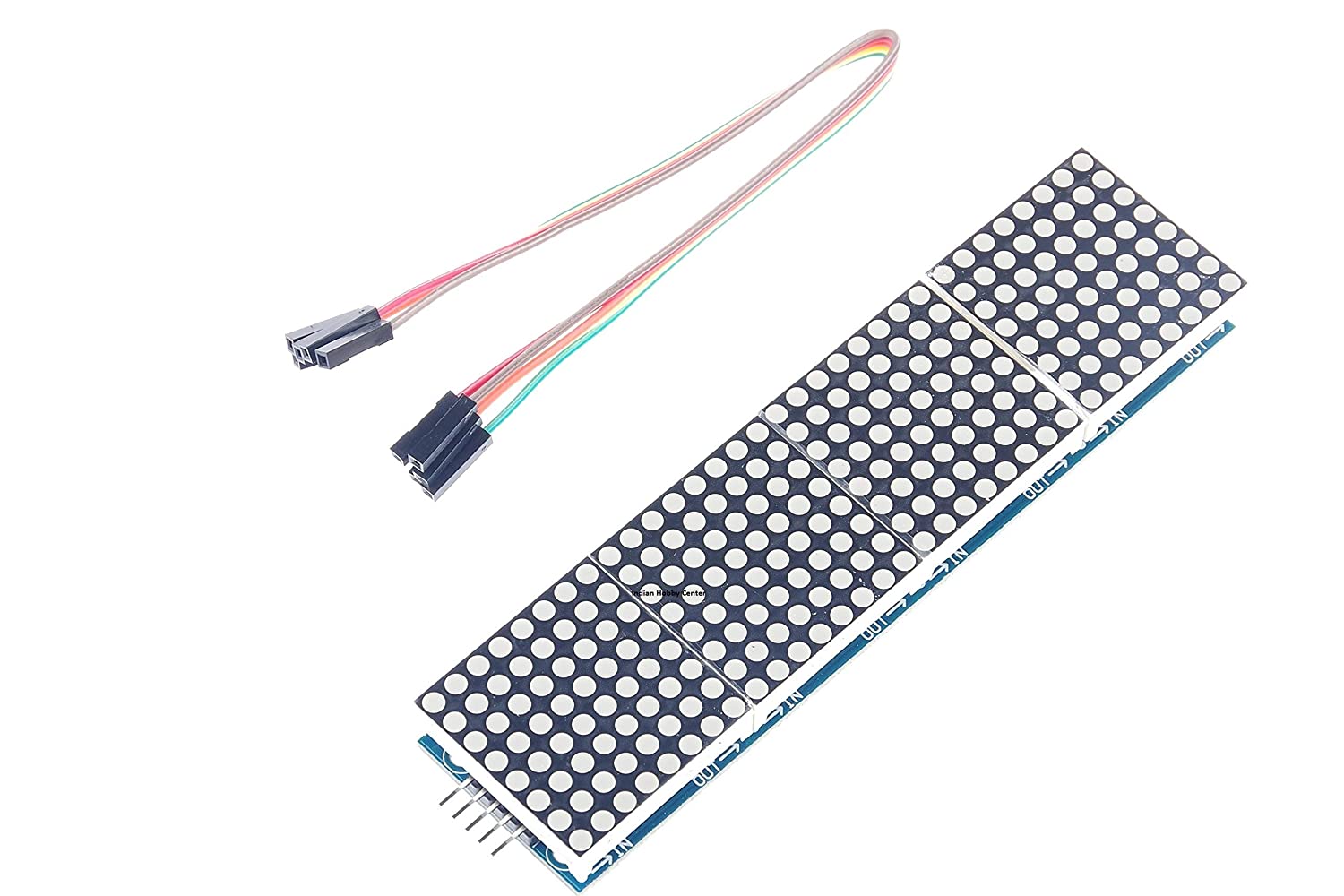

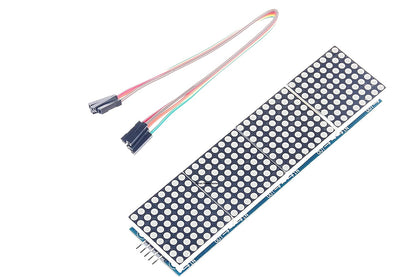

MAX7219 LED Dot Matrix 4 In 1 Display Module
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Operating voltage: 5V
Weight: 55 gm
Fixing screws with 64 holes with a diameter 3mm
Module with input and output interfaces
4-in-1 Display Dot Matrix Module is an integrated serial input/output common-cathode display driver, it connects the microprocessor 7-segment digital LED display with 8 digits, you can also connect a bar graph display or 64 independent LED.
The MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects. Only one external register is used to set the segment current of each LED.
Features :
- Requires only 3 communication wires of MCU
- Pre-cascaded MAX7219 Dot Matrix LED Module.
- The overall size of the display is very compact
- The PCB features M3 holes for mounting.
- Module with input and output interfaces
- Support for cascading multiple modules
- Quite large display
Package Includes :
1 x 4-in-1 Dot LED Matrix Module
1 x Connecting Wire
