• Brand : DL
• Composition Alloy : 60/40 Tin/Lead (Sn60/Pb40)
• Wire Gauge : 22 SWG
• Color White
• Packaging Size : 50 Grams/Reel
• Melting Point (Solidus) 183 Degree Celsius
• Flow Point (Liquidus) 190 Degree Celsius
• Usage/Application : For all common soldering applications.
• Diameter : 0.71mm
• Flux : 2.0%
• Apperance Bright and Shiny Finishes.
• Made in : India

FEATURES:

• DL 60/40 is a high purity alloy made from virgin materials.
• Product carries clear residue to maintain the board cosmetics.
• If required residues can be cleared with suitable liquid application.
• Applicable for Hand or Feed soldering process in electronic & electric assemblies.

STORAGE AND HANDLING:

• Store in cool and dry environment
• Do not use fire near storage area
• Wear appropriate personal protective while handling and processing

ALLOY COMPOSITION:

• Sn:- Remainder
• Pb:- 39.5~40.5

• Sb:- 0.12

• Cu:- 0.05

• Bi:- 0.1

• Zn:- 0.002

• Fe:- 0.02

• Al:- 0.002

• As:- 0.03

• Cd:- 0.002

Although 60/40 is widely used in electronics for both manual and automatic soft soldering applications, it is also used in general purpose applications where fast alloy flow is desired. This alloy offers good corrosion resistance properties, has the highest strength of the tin/lead series and generally is used where low soft soldering temperature requirements are required. Soldering Iron Set Temperatures ranging from 350°C to 400°C are recommended to get desired Solder Joints.

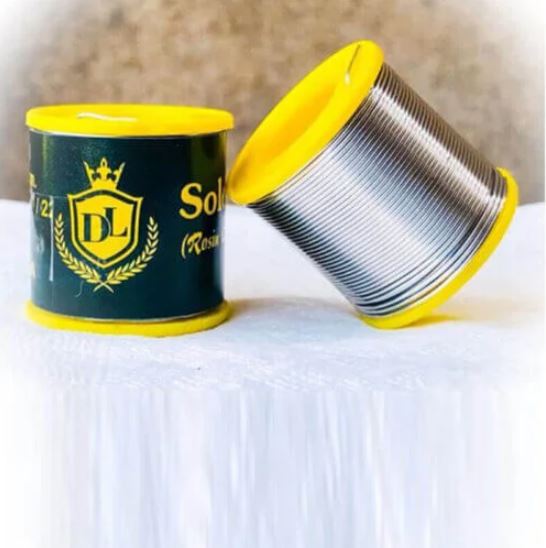

DL Solder Wire 50g – 60/40 Tin/Lead Rosin Coated Solder wire that provides greater soldering experience. It is loved by industrial customers and hobbyists for its great quality.
