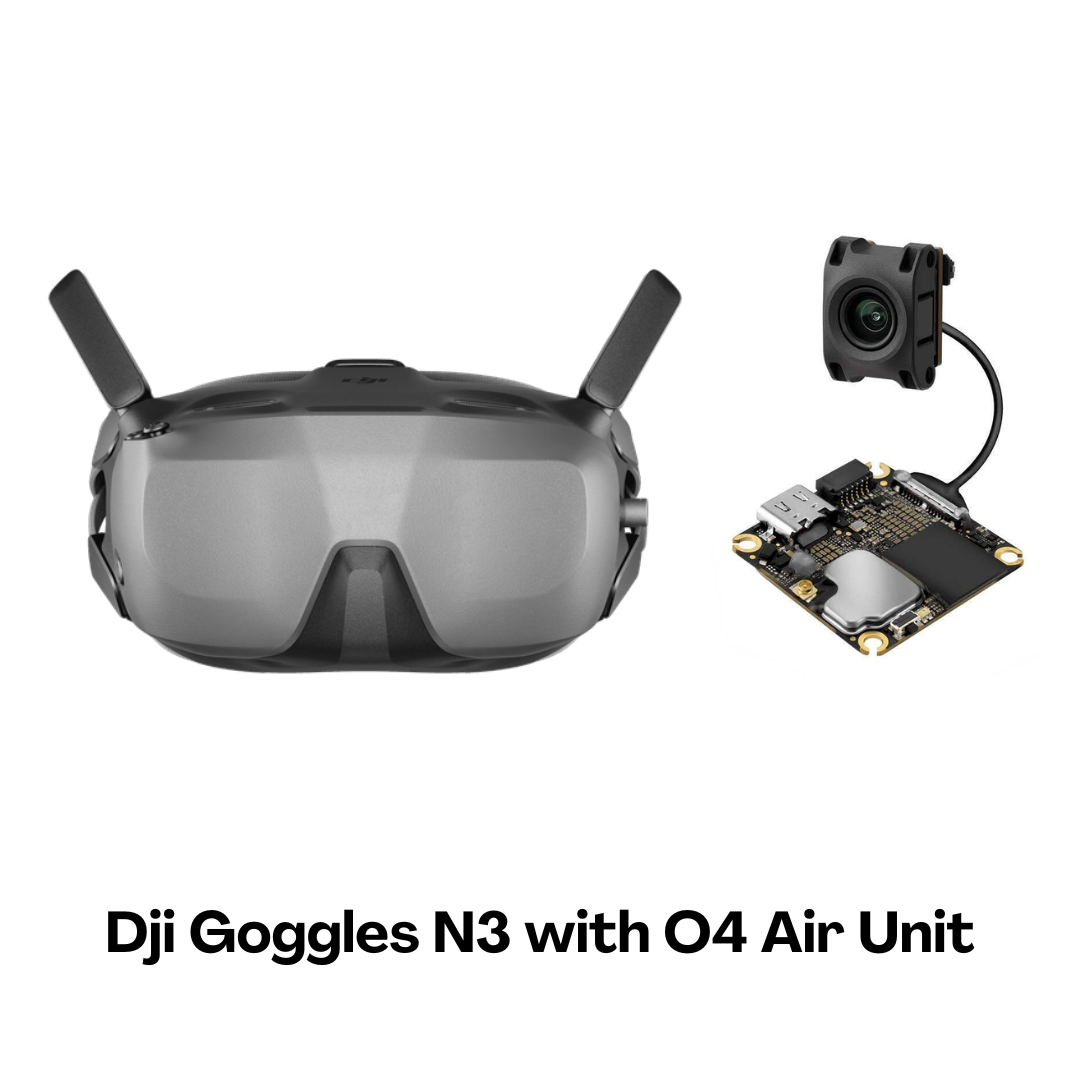

Dji Goggles N3 with O4 Air Unit Combo

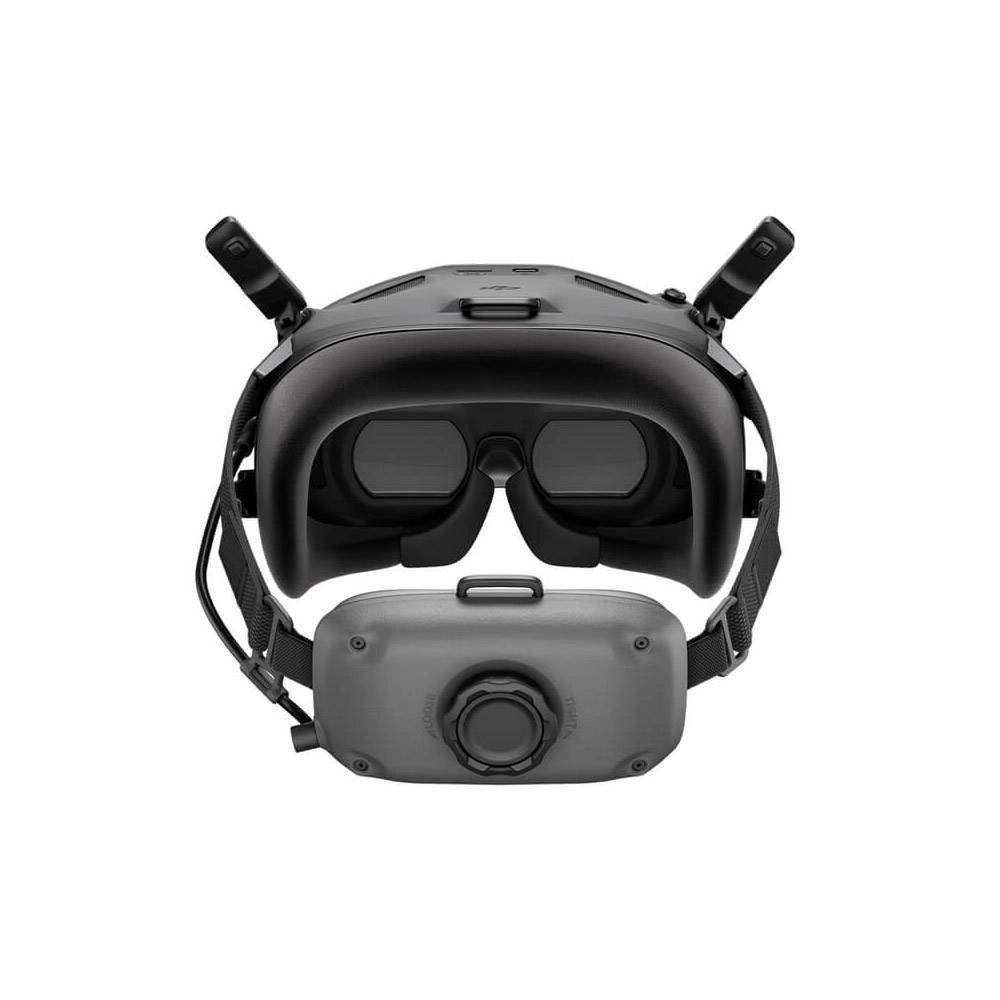

Goggles

• Model: TKGSM

• Weight: 536 g (battery and headband included)
                349 g (battery and headband excluded)

• Dimensions:

• • With antennas folded: 193×163×103 mm (L×W×H)
  • With antennas unfolded: 206×163×132 mm (L×W×H)

• Screen Size (single screen): 3.5 inches

• Resolution (single screen): 1920×1080

• Refresh Rate: Up to 60 Hz

• Interpupillary Distance Range: No interpupillary distance adjustment required, ready to use immediately.

• Diopter Adjustment Range: Diopter adjustment not supported, can be used with personal glasses.

• FOV (single screen): 54°

• Video Recording Format: MOV (video format: H.264)

• Supported Video and Audio Playback Formats: MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
  Panoramic Video: Spherical 2D panoramic videos
  Max Video Specification: 4K/60fps

• Real View Display : Real View not supported.

• Operating Temperature: -10° to 40° C (14° to 104° F)

• Power Input: Built-in battery

• Supported SD Cards: microSD (up to 512 GB)

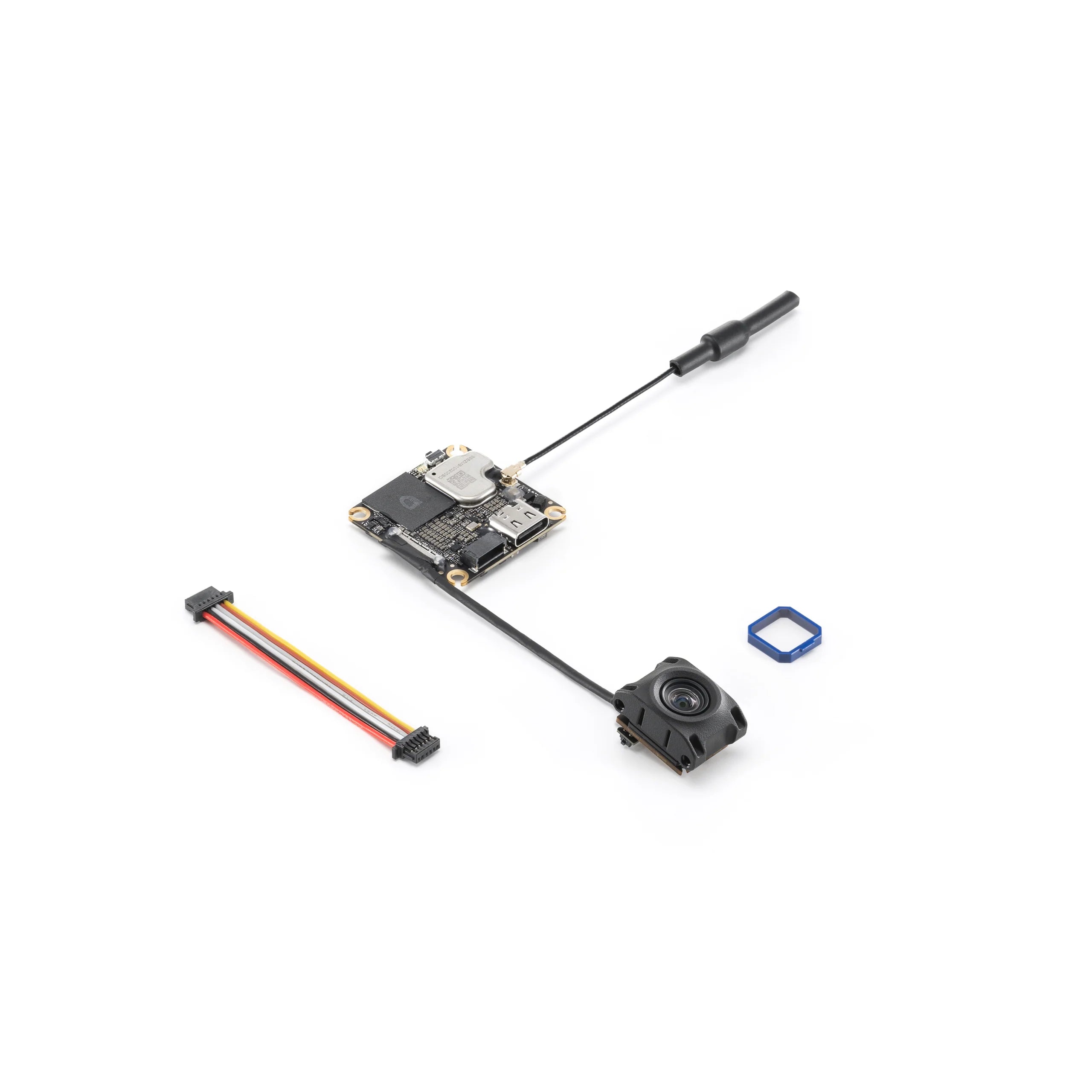

Video Transmission

• Video Transmission: O4

• Operating Frequency:

• • 2.400-2.4835 GHz
  • 5.150-5.250 GHz
  • 5.725-5.850 GHz


  ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 30 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)
  < 21 dBm (FCC)

  5.8 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

• Max Transmission Distance

• With DJI Avata 2:
  13 km (FCC)
  10 km (CE/SRRC/MIC)

  With DJI Neo:
  10 km (FCC)
  6 km (CE/SRRC/MIC)

  ^{Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the aircraft's max flight distance. Always pay attention to RTH reminders on the live view during your flight.}

• Max Video Bitrate

• With DJI Avata 2: 60 Mbps
  With DJI Neo: 50 Mbps

  ^{Measured in an open, outdoor environment without interference or obstructions. Actual data varies with the operating environment.}

GFSK

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

Battery

• Dimensions: 120×71×44 mm (L×W×H)

• Capacity: 2450 mAh

• Voltage: 6.33-8.4 V

• Type: Li-ion

• Chemical System: LiNiMnCoO2

• Energy: 17.64 Wh

• Charging Temperature: 5° to 45° C (41° to 113° F)

• Max Charging Power: 5 V/3 A (charging when powered off)

• Runtime: 2.7 hours

  ^{The 2.7-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 6, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.}
