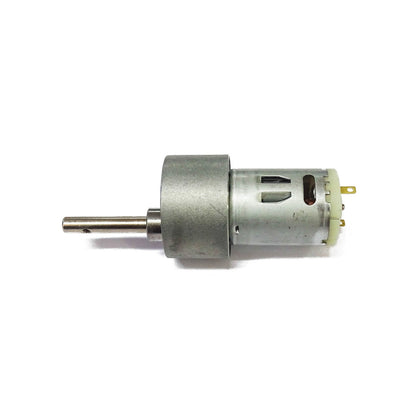

200 RPM Johnson DC Gear Motor Side Shaft (New Model)

200 RPM Johnson DC Gear Motor Side Shaft (New Model)

Rs. 385.00
Rs. 450.00 Rs. 385.00
Sale Sold out
Taxes included. Flat Shipping calculated at checkout.
Trust

Description:-

Johnson Geared Motor Premium Quality Imported New Model 200 RPM

Specifications:

  1. Rated Base Motor RPM: 18000
  2. Gear Material: Metal
  3. Rated Speed (RPM): 200
  4. Operating Voltage (VDC): 6 ~ 18
  5. Nominal Voltage (V): 12
  6. Rated Torque(kg-cm): 3.9
  7. Stall Torque(Kg-Cm): 15.6
  8. No-Load Current (mA): 300
  9. Load Current Max (mA): 900
  10. Shaft Diameter (mm): 6
  11. Shaft Length (mm): 30
  12. Gearbox Diameter (mm): 37

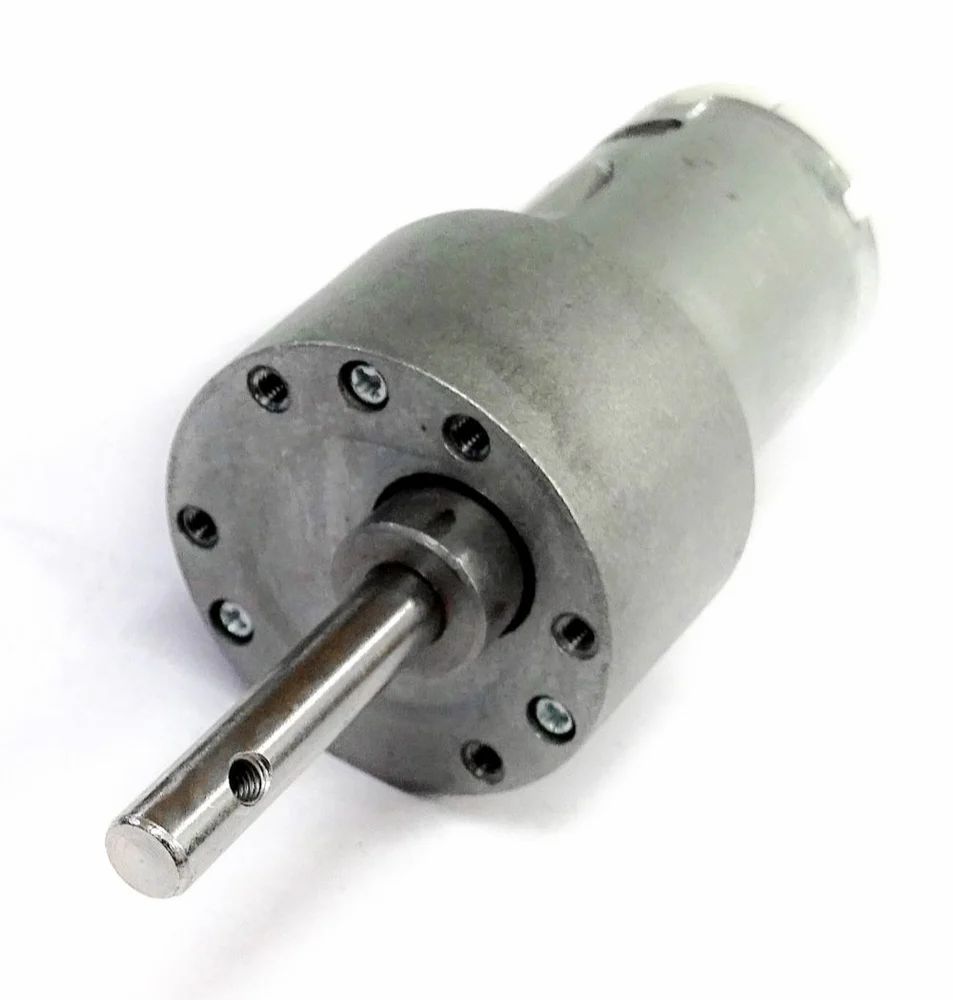

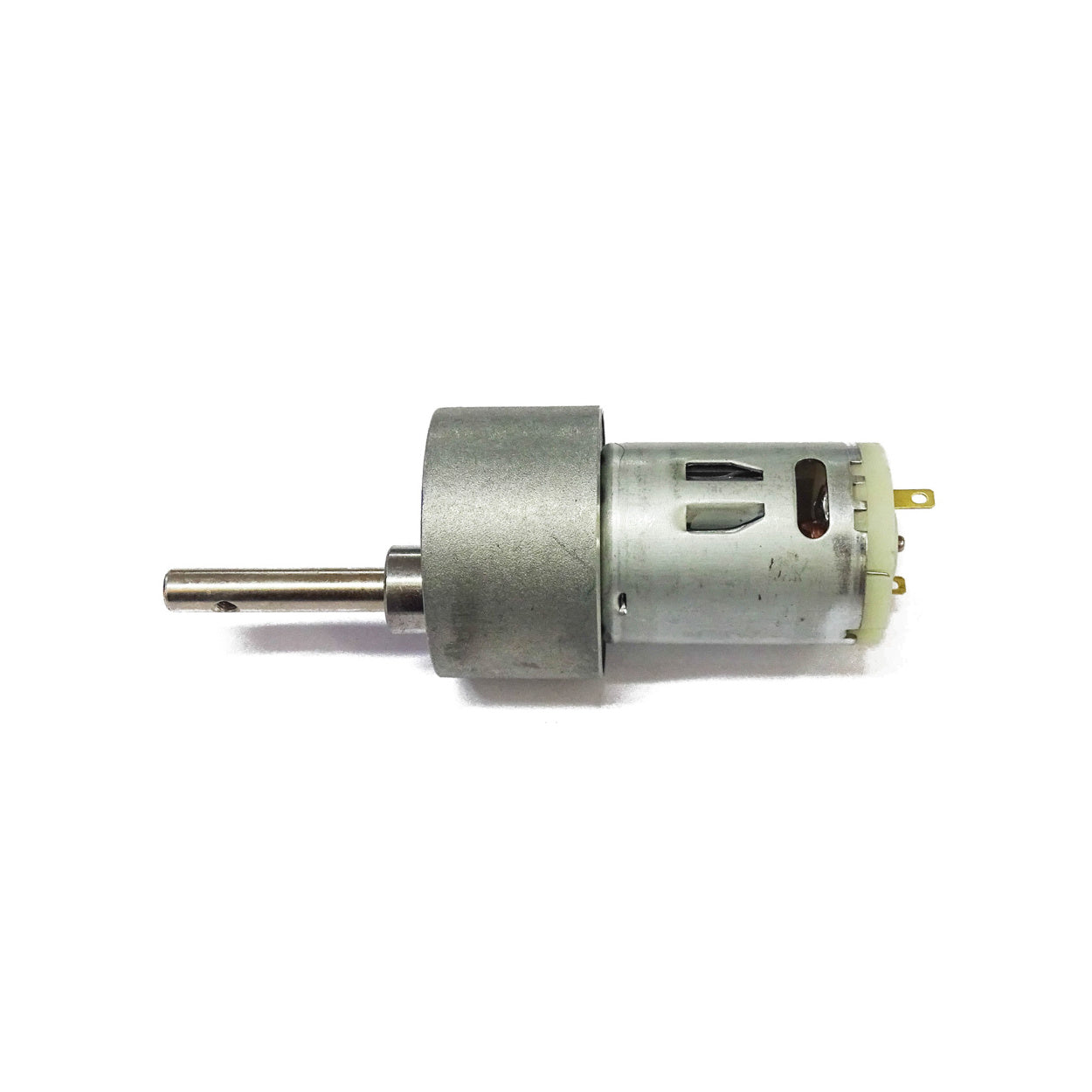

The Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.

Features:

  1. The motor has a sturdy construction.
  2. Shaft equips metal bushes for long life.
  3. It comes with High-Quality gears.
  4. The shaft has a hole for better coupling.
