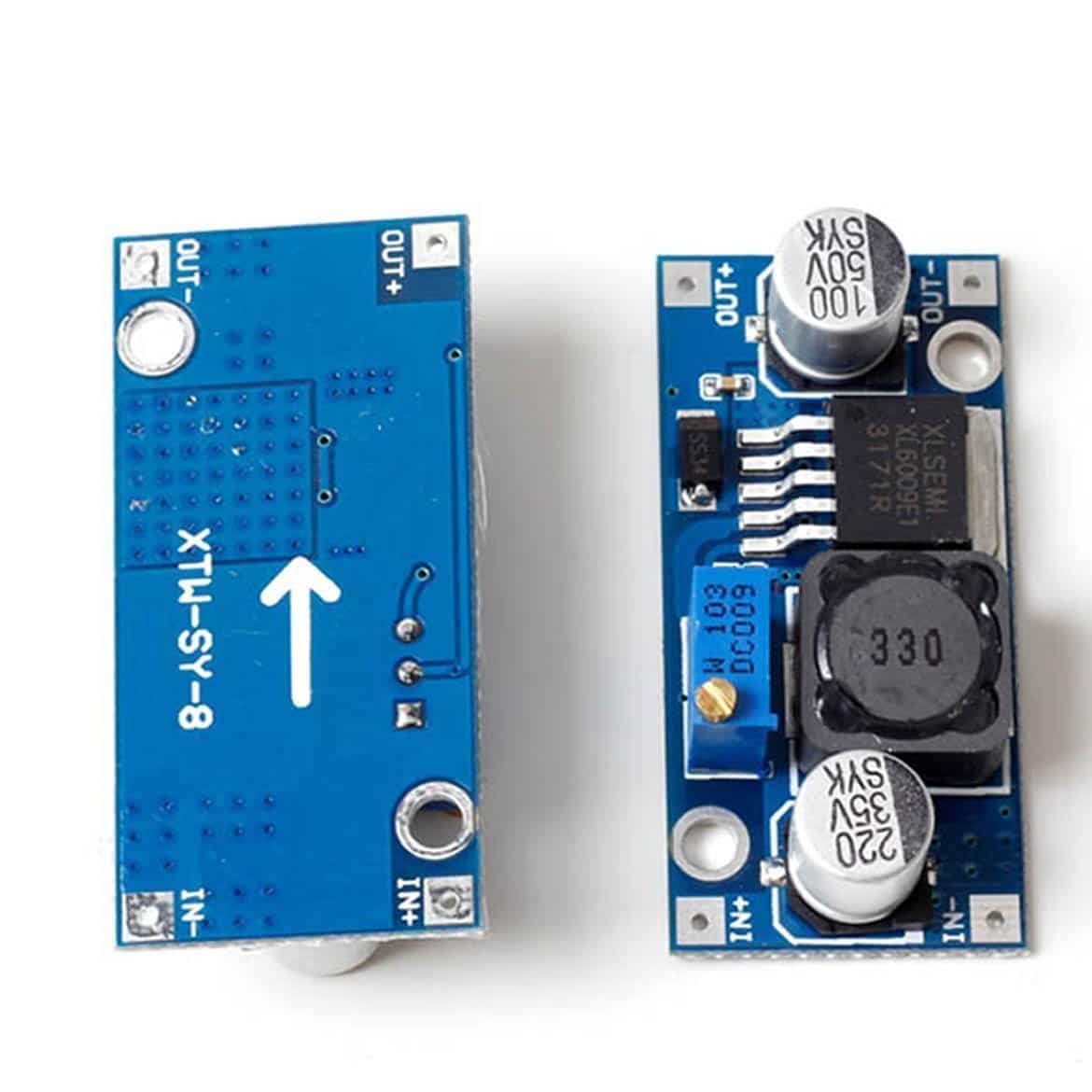

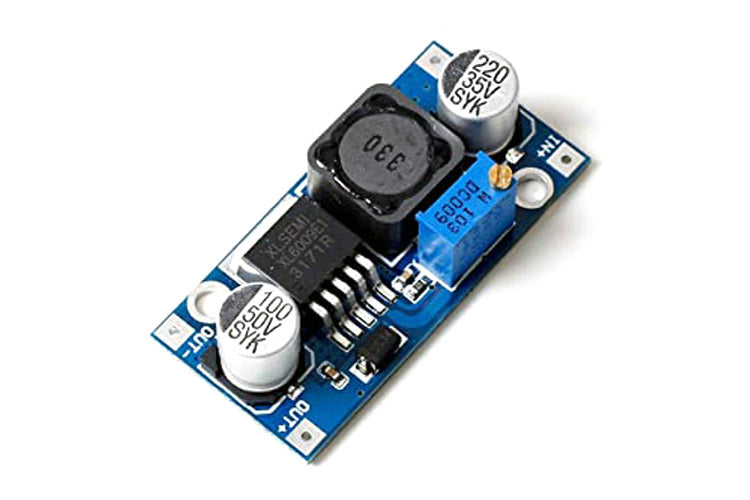

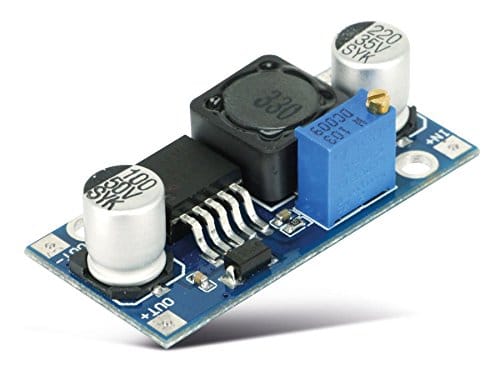

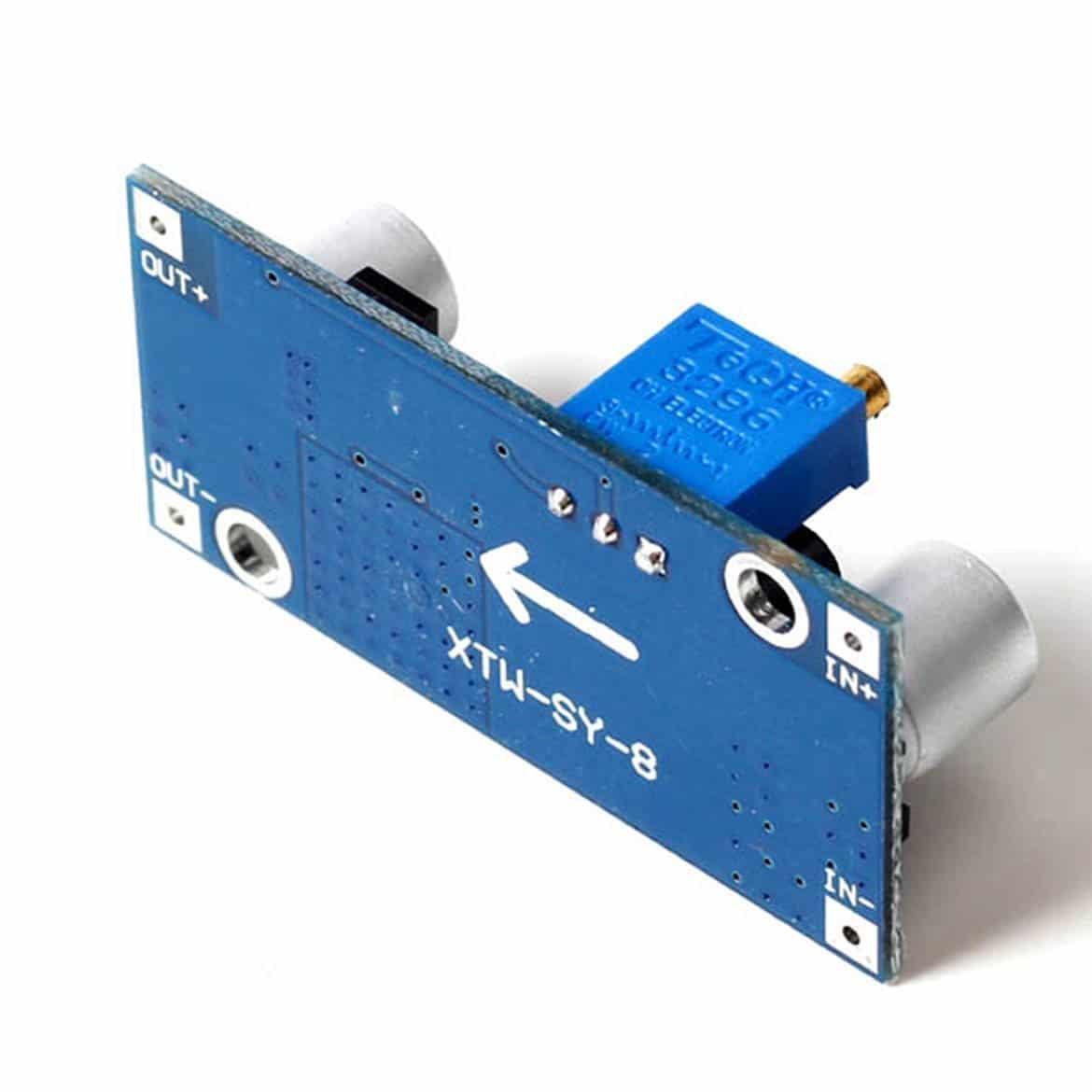

XL 6009 DC-DC Adjustable Step up Boost Converter Module

Rs. 79.00 Rs. 120.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Product type: XL6009 Module
  • Module function: DC Step up module, voltage booster, power converter
  • Dimensions: 45 mm x 22 mm
  • Package contains: 1 piece of packedXL6009 voltage booster regulator module

XL6009 module is a type of regulator with a wide range of input, current mode, DC to DC converter. It can generate either positive or negative output voltage. It is configurable as a boost, flyback, SEPIC, or inverting converter. HL6009 module has inbuilt N-channel power, MOSFET, and a fixed-frequency oscillator. This regulator module has a special design for portable electronics equipment applications.


    • Input voltage: 3 v to 32 v
    • Output voltage: adjustable between 5V to 35V
    • Output type: Positive or negative output voltage with a single feedback pin.
    • Switching frequency: 400KHz
    • Maximum switching current: 4A
    • Reference adjustable voltage: 1.25v
    • Package type: TO-263-5L
    • Control type: current mode control, which provides an excellent transient response
  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
