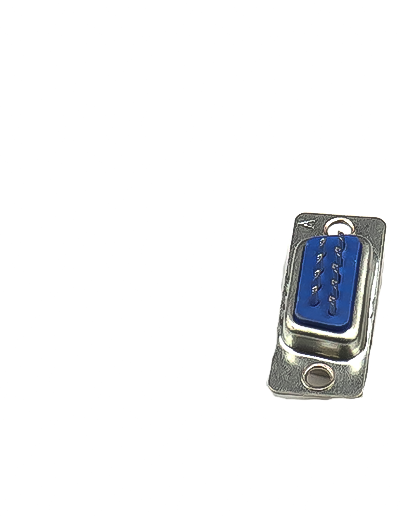

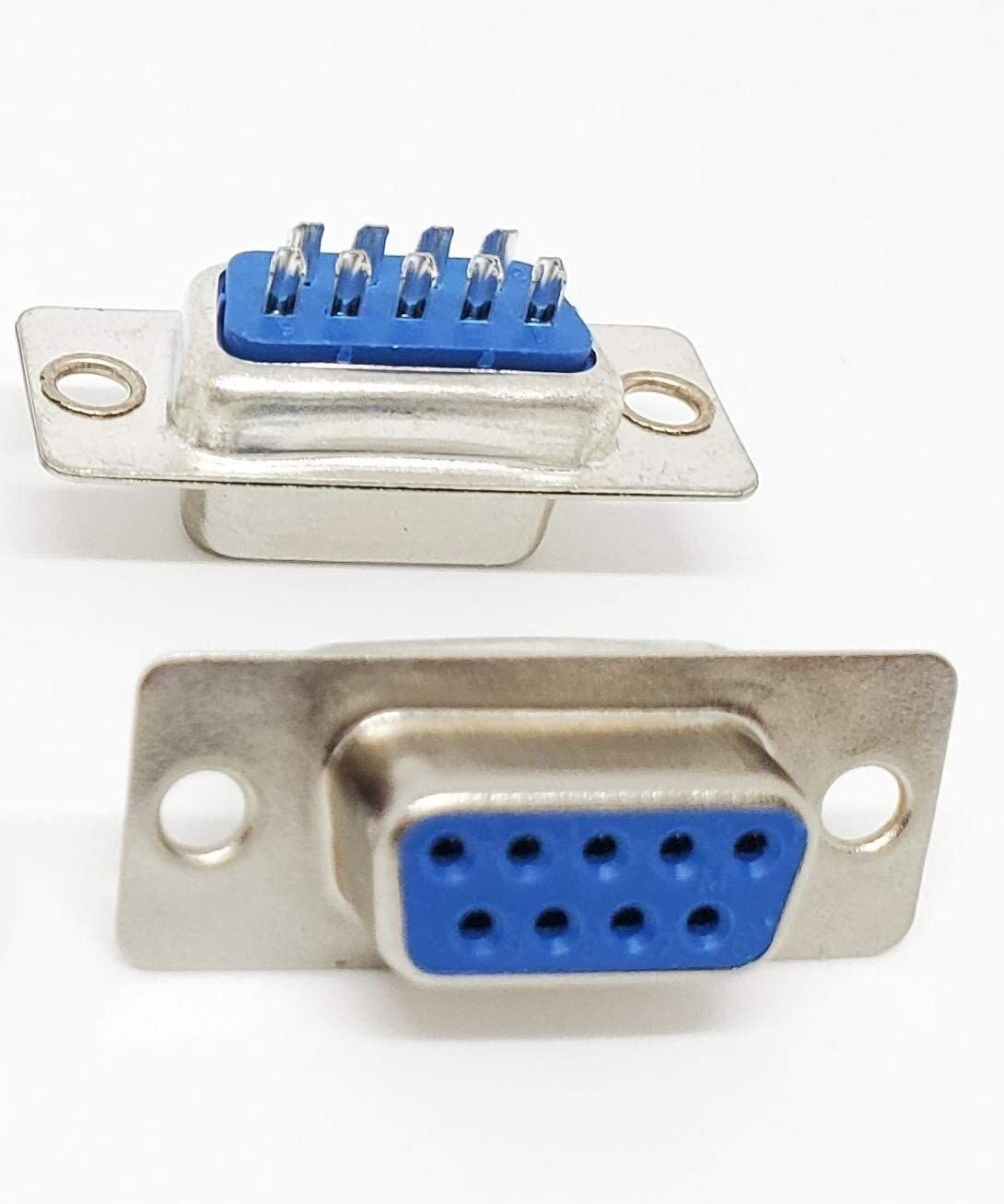

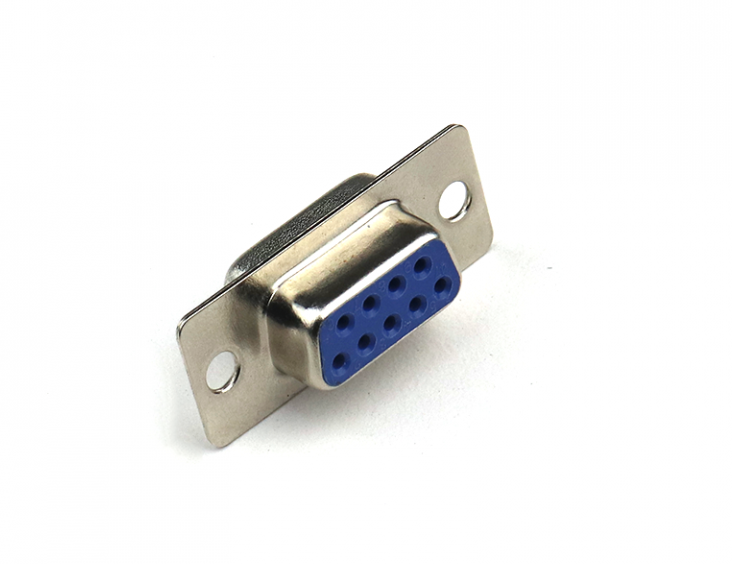

DB9 Female Connector Straight
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase
DB9 Female Welded Connector is the most common type of electrical connector. DB 9 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-9 pins are arranged in rows of two, as one five-pin row above a four-pin row.
DB9 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used in DB9 cable assemblies for data connectivity.
Today, the DB9 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others. However, there are still many legacy devices that use the DB9 interface for serial communication.
Applications:
- Network ports.
- Computer video output.
- Game controller ports.
- Linear and rotary encoders in industries.
Features:
- Solder cup configuration for longevity.
- Nickel-plated terminals.
- Gold plated pins.
- Good quality.
Specifications :-
| Connector Type |
DB-9 |
| Connector |
Male |
| Voltage Rating (V) |
250V AC |
| Current Rating (A) |
5 |
| Insulation Resistance (M) |
1000 |
| Contact Resistance |
20m |
| Operating Temperature Range (C) |
-55 to 125 |
| Material |
Metal and plastic |
| Length (mm) |
30 |
| Width (mm) |
12 |
| Height (mm) |
15 |
| Weight (gm) |
3 |
Package Includes:
1 x DB9 Female Welded Connector
