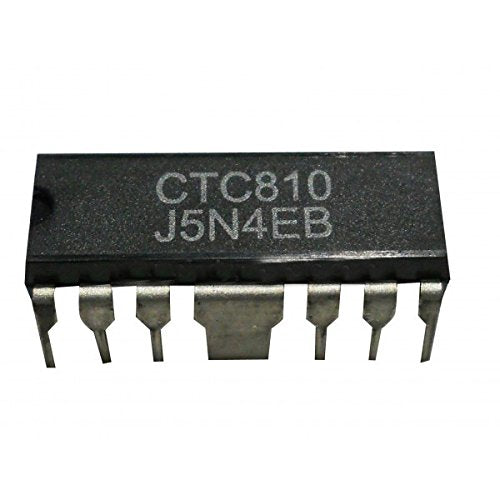

CTC 810 AUDIO POWER AMPLIFIER IC
CTC 810 AUDIO POWER AMPLIFIER IC
Regular price
Rs. 75.00
Regular price
Sale price
Rs. 75.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Supply Voltage Load Output Power
16V 4Ohm 7W
14.4V 4Ohm 6W
9V 4Ohm 2.5W
6V 4Ohm 1W
PIN DISCRIPTION OF 810 IC
- Supply Voltage (VCC)
- N.C. (No connection)
- N.C. (No connection)
- Bootstrap
- Compensation
- Feedback
- Ripple Rejection
- Input
- Gnd (substrate)
- GND
- N.C. (No connection)
- Power Out
FEATURES OF 810
-- High output power (RL = 4Ohm and 2Ohm)
-- Low noise
-- Polarity inversion protection
-- High supply voltage rejection
-- High output current(up to 3A)
-- Very low harmonic and crossover distortion
-- Maximum supply voltage - 20V
-- Output current - 3A
