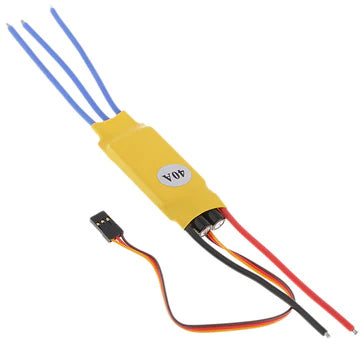

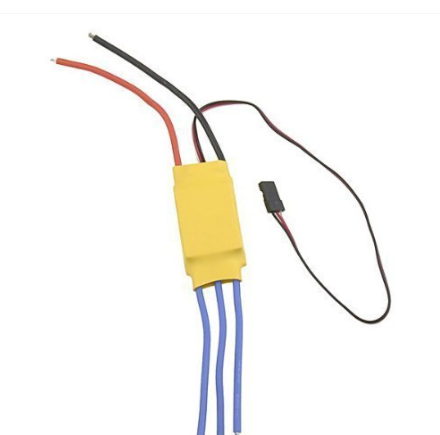

40A Brushless Motor ESC Speed Controller for RC Airplane Quadcopter Drone
Specifications:
- Type: 40A Brushless Without BEC (short)
- Material: Plastic
- Continuous Output Current: 40A
- Max Current: 50A (No Less than 10 Seconds)
- DC:3.7V-12.8V
- BEC:3A / 5V (Switch)
- Size: 45mm x 26mm x 10mm
- Ni-Mh/Ni-cd:c4-10Ni- MH
- Color: Yellow
- Net weight: 31g
- Maximum Speed: 2-pole Motor 210000rpm, 6-role Motor 70000rpm, 12-pole Motor 35000rpm
Standard 40A BLDC ESC Electronic Speed Controller is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs.
STANDARD 40A BLDC ESC ELECTRONIC SPEED CONTROLLER can drive motors which consume up to 40A current. It works on 2S-3S LiPo batteries. It has an onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. It can be used to control our brushless motors with a 2S-3S LiPo (make sure motor doesn’t draw more than 40A).
BLDC ESC40A ESC-40A ESC 40A Brushless DC Motor Speed Controller ESC Electronic Brushless 40A Motor Speed Controller Power Supply For RC Drone Airplane
Feature:
- High quality brushless BEC replacement parts
- Excellent output ability of continues current of 40A
- Premium material made, stable and reliable
- Durable, Speed Controller, 40A, Universal
- Ideal speed controller for RC/FPV/Quadcopter/RC Airplanes and others
- Low resistance
- Sixteen cells Max (with BEC disabled)
- User programmable brake
- Low voltage auto setting based on battery
- Throttle range self-adjusting
- Soft start ramp up
- Auto motor cutoff with reset
- Runs motor in forward or reverse
- Safe power arming program ensures motor will not run accidentally after turn on
- Low torque start
- Auto shut down when signal is lost
Notes:
- Due to the light and screen setting difference, the item’s color may be slightly different from the pictures.
- Please allow slight dimension differences due to different manual measurements.
Package includes:
- 1 x BLDC ESC40A ESC-40A ESC 40A Brushless DC Motor Speed Controller ESC Electronic Brushless 40A Motor Speed Controller Power Supply For RC Drone Airplane
