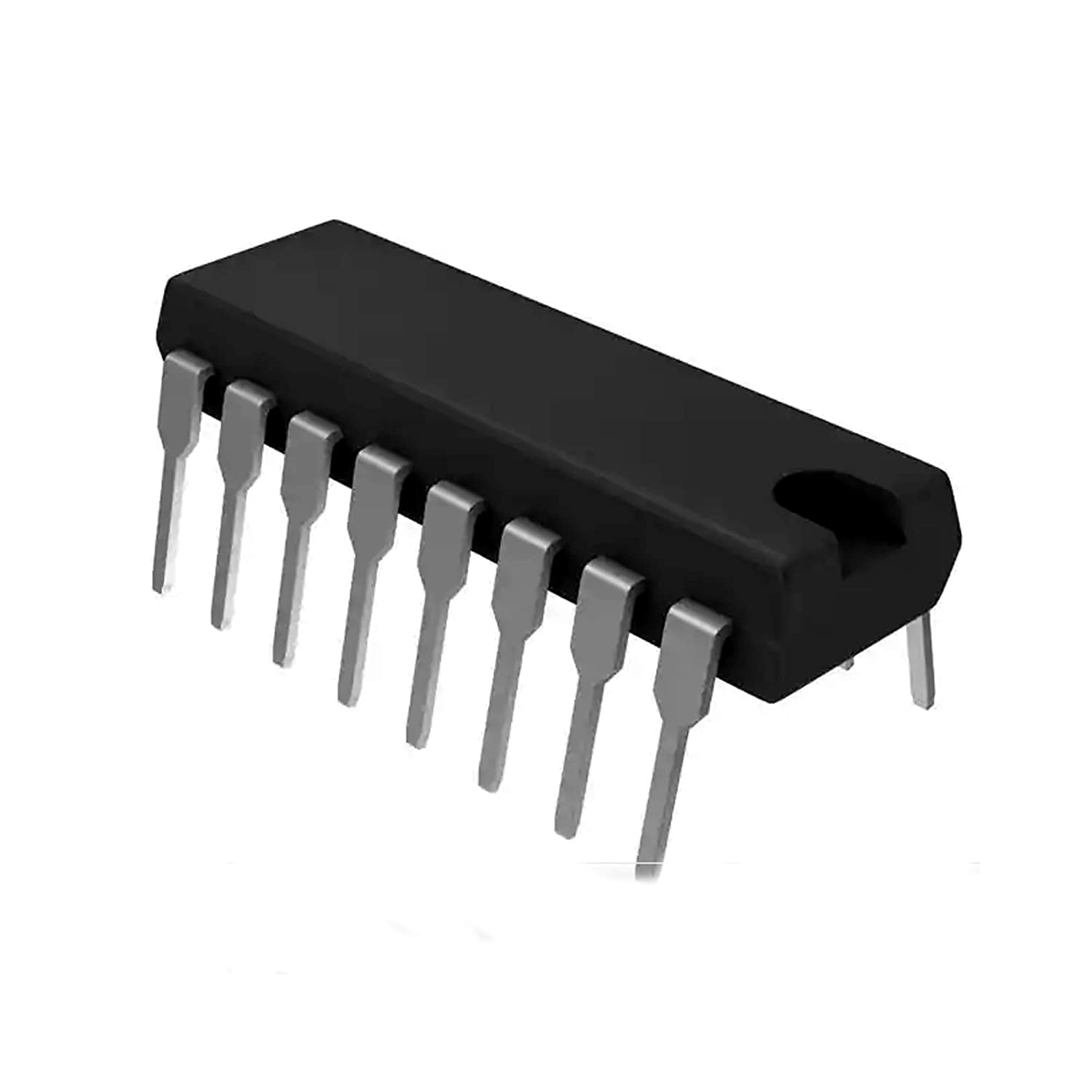

74153 Multiplexer IC 74HC153 High-Speed CMOS DIP-16
All Prices Incuding GST
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
-
Wide supply voltage range from 2.0 to 6.0 V
-
CMOS low power dissipation
-
High noise immunity
-
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
-
Input levels:
-
For 74HC153: CMOS level
-
-
Non-inverting outputs
-
Separate enable input for each output
-
Common select inputs
-
Permits multiplexing from n lines to 1 line
-
Enable line provided for cascading (n lines to 1 line)
-
Complies with JEDEC standards:
-
JESD8C (2.7 V to 3.6 V)
-
JESD7A (2.0 V to 6.0 V)
-
-
ESD protection:
-
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
-
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
-
-
Specified from -40 °C to +85 °C and -40 °C to +125 °C.
The 74HC153 is a dual 4-input multiplexer. The device features independent enable inputs (nE) and common data select inputs (S0 and S1). For each multiplexer, the select inputs select one of the four binary inputs and routes it to the multiplexer output (nY). A HIGH on E forces the corresponding multiplexer outputs LOW. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
- TTL ICs i.e. Transistor Transistor Logic ICs.
- Total pins = 16 pins.
- Dual 4:1 line multiplexer circuit in single package.
- Supply voltage = 5V DC ±0.25V.
- Operating temperature range = 0°C to +70°C.
- High fan-out = 10.
- Low impedance < 100Ω
- Totem pole outputs.
