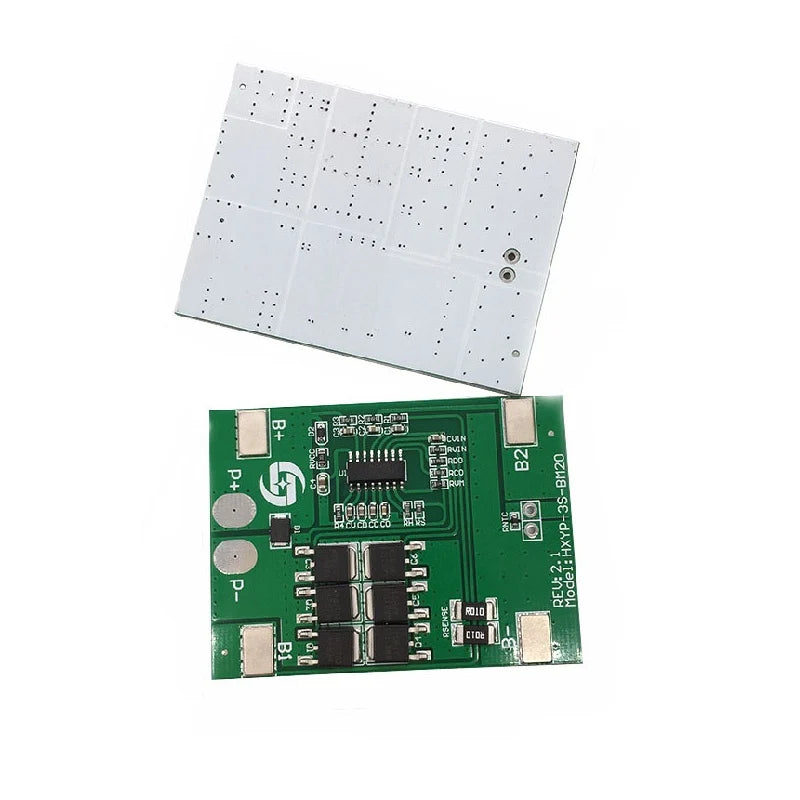

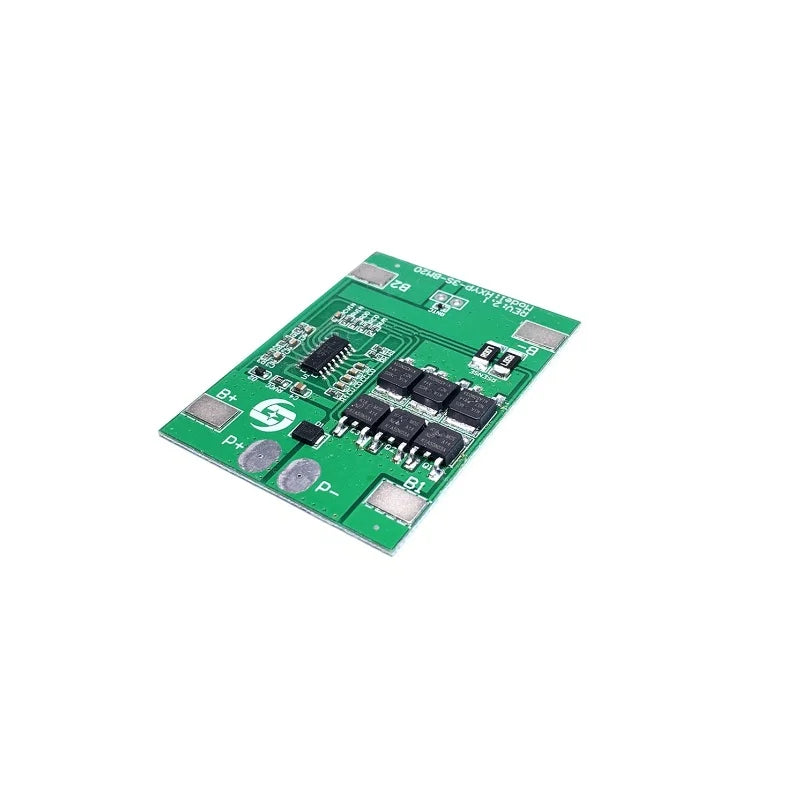

BMS 3s 20A 18650 (HXYP-3S-BQ20) Lithium Battery Protection Board

Rs. 279.00 Rs. 350.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441
  • Model - HXYP-3S-BM20
  • Charging voltage(V) - 12.6V-13.6V
  • Over-Discharge recovery voltage - 3±0.05V
  • Over Discharge Delay Time(ms) - 150
  • Maximum Working Current(A) - 20
  • Maximum Peak Current(A) - 30
  • Length (mm) - 65
  • Width (mm) - 47
  • Height (mm) - 10
  • Weight (gm) - 12

Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself cannot be overcharge, over-discharge, short circuit, ultra-high temperature charge, etc. So lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Providing all the above features this 3S BMS board can combine 3 x 18650 battery to form a battery pack to provide up to 15V DC output at 20A current which can be used for heavy applications.


  1. Overcharging and Over Discharging Protection
  2. Short circuit protection: Yes
  3. Applicable assembly: Nominal 4.5V Batteries / 3 strings.

Package Includes:

1 x 3S 20A 18650 Lithium Battery Protection Board

* Product Images are shown for illustrative purposes only and may differ from actual product.

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
