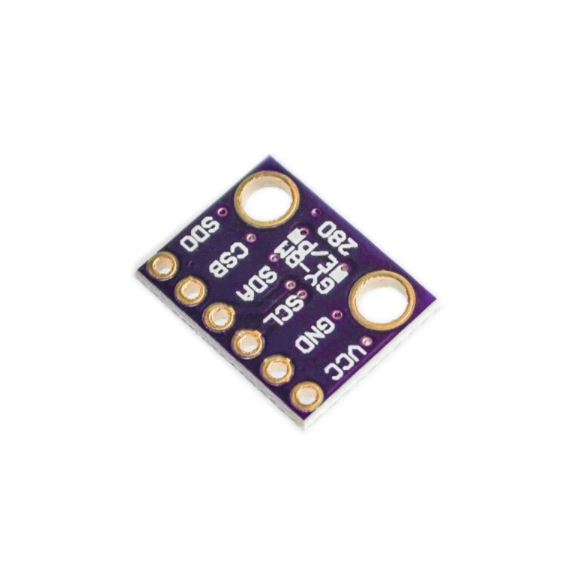

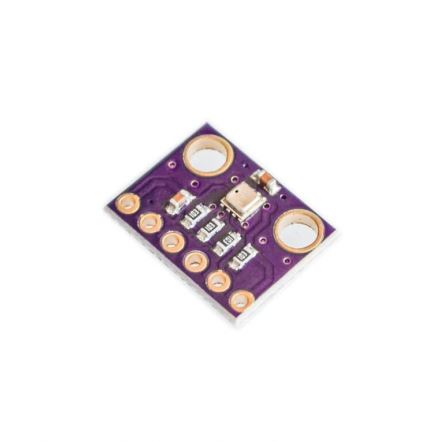

GY-BME280-3.3 BME280 Atmospheric Pressure Sensor Module.ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor.

ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor.
The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.

Features:

• Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA

• Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)

• Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V

• VDDIO interface voltage range: 1.2 V to 3.6 V

• Current consumption 1.8 uA @ 1 Hz humidity and temperature

• 2.8 uA @ 1 Hz pressure and temperature

• 3.6 uA @ 1 Hz humidity, pressure and temperature

• 0.1 uA in sleep mode

• Operating range -40…+85 C, 0…100 % rel. humidity, 300…1100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabled

Package Includes:

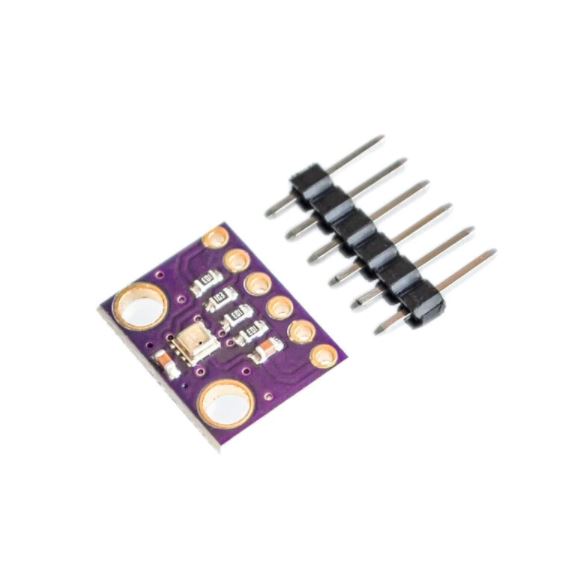

1 x GY-BME280-3.3 Precision Altimeter Atmospheric Pressure Sensor Module

1 x 6 pin Male Header
